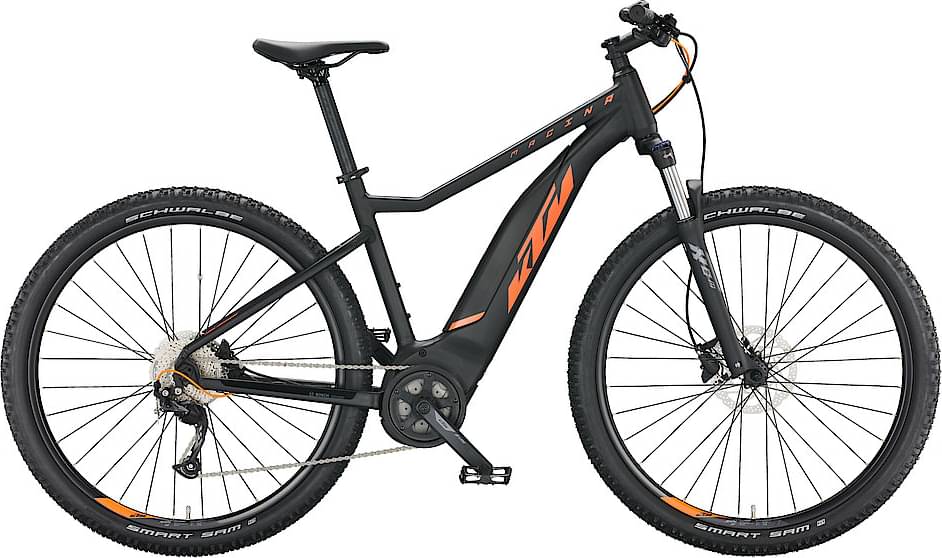

KTM MACINA RIDE 491 2022
2022 E-bike
Estimate price |
2,866$
Weight | 21.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM HLO
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Bosch 250W 40Nm mid-drive -
Battery Bosch PowerPACK 400Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; UC-PP500Wh Bosch Gen.3 / M-9680
Suspension Fork
Suntour XCM coil 29" HLO 100mm
Drivetrain
Rear Derailleur
Shimano Altus M2000-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano HG201-9 / 11-36
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano HG53-9
Wheels
Rims
KTM Line - Shimano Acera M3050 CL 32H 100-5QR / Ryde Rival23 32H 622x23C / DT Champion 2.0 silver
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Disk Rotors
Shimano RT30 CL 180 / RT30 CL 160
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 700mm
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Hybrid
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch ACTIVE Gen.3 - 25km/h / 40Nm
Battery
Bosch PowerPACK 400Wh
Remote
Bosch PURION LCD Display
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.58 mm | 1.54 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 648 mm | 661 mm | 689 mm |
| Rake | 41 mm | 46 mm | 52 mm |
| Trail | 93 mm | 80 mm | 74 mm |
| Stack | 634 mm | 641 mm | 650 |
| Reach | 388 mm | 405 mm | 423 mm |
| Top Tube Length | 583 mm | 602 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1114 mm | 1127 mm | 1155 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 785 mm | 800 mm | 827 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
About this model
MACINA RIDE 491 is a Ktm E Macina Ride model. KTM launched 9 e-bikes of this model so far. Take a sneak peek at all Ktm E Macina Ride e-bikes models from 2022, by clicking here.
Model range prices
KTM MACINA RIDE 491 2022 is the cheapest e-bike model and costs 2653$. KTM MACINA RIDE 591 LTD 2022 is the most expensive one and costs 3078$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry e-bikes average price
Our math shows that the average cost of a dependable Crosscountry e-bike is 2453$. However, even though the average price of a Crosscountry e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2022 for 2653$. Doing a quick comparison, we notice that MACINA RIDE 491 price is 8.15% higher than the average cost of a Crosscountry e-bike.
Average weight for Crosscountry e-bikes
If we make a quick analysis of the average weight of a Crosscountry e-bike, we get 23.21 kg (51.17 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
MACINA RIDE 491 weighs 21.9 kg (48.28 lbs) and is a bit lighter than the average. In conclusion, the average Crosscountry e-bike weighs 5.98% more than MACINA RIDE 491.
Overview of components
Fork
The fork installed on this bike is the Suntour XCM HLO model. The travel on this model is 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
The MACINA RIDE 491 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, these wheels are not ideal for smaller people.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The MACINA RIDE 491 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
MACINA RIDE 491 comes in 3 sizes, that range from 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, it won’t take much to find one that’s right for you.
