Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour XCM
-
Groupset Altus, Alivio -
Suspension Hardtail -
Motor Bosch 250W 50Nm mid-drive -
Battery Bosch PowerPACK 500Wh -
Drivetrain 1 × 9 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy 6061; UC-PP500Wh Bosch Gen.3 / M-9680
Suspension Fork
Suntour XCM coil 29" HLO 100mm
Drivetrain
Rear Derailleur
Shimano Altus M2000-9 SGS shadow
Shift Levers
Shimano Alivio M3100-9 display
Cassette
Shimano LG300-9 / 11-46
Crank
KTM LINE BNI 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Pedals
MTB-Pedal VPE-537 steel
Wheels
Rims
KTM Line - Shimano Acera M3050 CL 32H 100-5QR / Remerx RX2030 Enduro Plus 32H 622x30C / DT Champion 2.0 silver
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp rizer15 700mm
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Hybrid
Seatpost
KTM Comp 30.9/400
Motor & Battery
Motor
Bosch ACTIVE PLUS Gen.3 - 25km/h / 50Nm
Battery
Bosch PowerPACK 500Wh
Charger
Bosch COMPACT Charger 2A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.63 mm | 1.58 mm | 1.54 mm |
| Bottom Bracket Height | 312 mm | 312 mm | 312 mm |
| Front Center | 648 mm | 661 mm | 689 mm |
| Rake | 46 mm | 46 mm | 52 mm |
| Trail | 84 mm | 80 mm | 74 mm |
| Stack | 634 mm | 641 mm | 650 |
| Reach | 388 mm | 405 mm | 423 mm |
| Top Tube Length | 583 mm | 602 mm | 623 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 71 ° | 71 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 473 mm | 473 mm | 473 mm |
| Wheelbase | 1114 mm | 1127 mm | 1155 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm |
| Standover Height | 785 mm | 800 mm | 827 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview

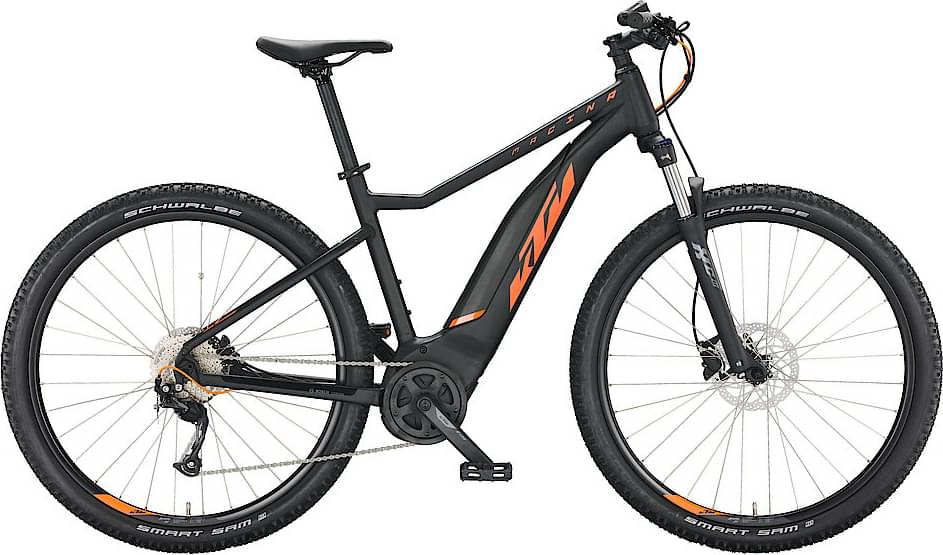

MACINA RIDE 591 LTD completes the Ktm E Macina Ride model. KTM launched 9 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Crosscountry e-bikes
According to our calculations, the average cost of a Crosscountry e-bike that is reliable is 2453$. However, this doesn’t mean that if you spend less money on a Crosscountry e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Crosscountry e-bikes average weight
Crosscountry e-bikes weigh an average of 23.21 kg (51.17 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
slightly lighter than average, MACINA RIDE 591 LTD has a weight of 22.5 kg (49.6 lbs). In conclusion, the average Crosscountry e-bike weighs 3.16% more than MACINA RIDE 591 LTD.
MACINA RIDE 591 LTD components
Fork
The Suntour XCM is included from the factory. It has a travel distance of 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, KTM MACINA RIDE 591 LTD 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA RIDE 591 LTD is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 165 cm – 198 cm (5.41 ft – 6.5 ft). In conclusion, you won’t have a problem finding one that suits you.
