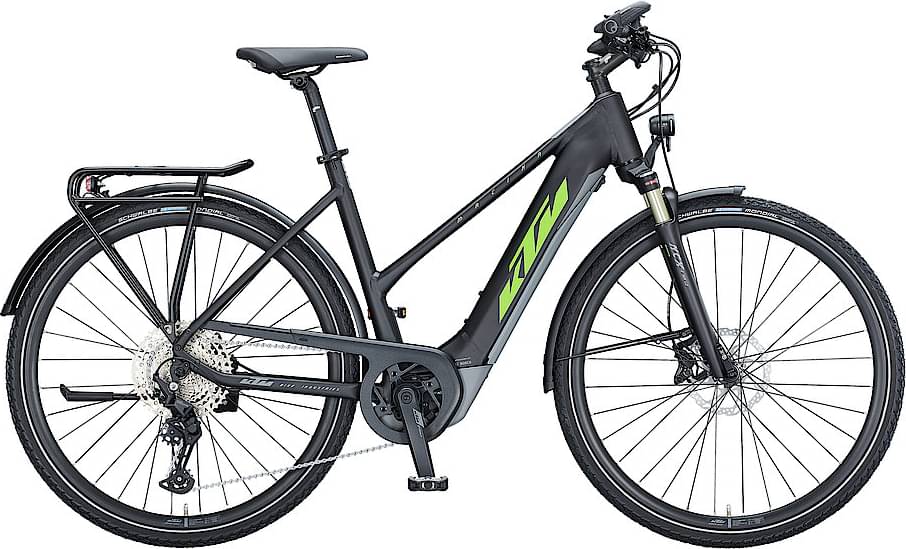

KTM MACINA SPORT 620 2021
2021 E-bike
Estimate price |
4,300$
Weight | 24.4 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450
Suspension Fork
Suntour NCX-E air LO 63mm 15QLC
Drivetrain
Shift Levers
Shimano Deore M5100-11 display
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - Shimano Deore M6010 CL 32H 100-15TA / Ambrosio Track Disc 32H 622x20C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT402 (3-F) / MT420 4-Piston
Disk Rotors
Shimano RT54 CL 180 / 160
Cockpit
Stem
KTM Line 17°
Handlebar
KTM Line low rizer 640mm
Headset
KTM Team eTrekking 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Essenza
Seatpost
KTM Line 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.49 mm | 1.51 mm | 1.51 mm |
| Front Center | 631 mm | 644 mm | 656 mm | 674 mm |
| Rake | 37 mm | 36 mm | 36 mm | 37 mm |
| Trail | 88 mm | 89 mm | 89 mm | 88 mm |
| Stack | 574 mm | 591 mm | 607 mm | 625 mm |
| Reach | 389 mm | 397 mm | 403 mm | 414 mm |
| Top Tube Length | 567 mm | 580 mm | 591 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 444 mm | 444 mm | 444 mm | 444 mm |
| Wheelbase | 1069 mm | 1082 mm | 1094 mm | 1112 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 55 mm | 55 mm |
| Standover Height | 788 mm | 811 mm | 843 mm | 869 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
MACINA SPORT 620 belongs to the Ktm E Macina Sport model. 17 e-bikes variations carry this model name so far. You can easily view all of the Ktm E Macina Sport e-bikes models from 2021, here.
Model range prices
The most economical model, the KTM MACINA SPORT P510 2021 has a starting price of 3237$. KTM MACINA SPORT 610 PTS 2021 on the other hand is the most expensive at 4618$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Hybrid e-bikes
According to our math, the average price for a trustworthy Hybrid e-bike is 2480$. However, you could also get a good Hybrid e-bike even if you pay a lower amount than the average price. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2021 for 3981$. Comparing the average cost of a Hybrid e-bike to this one, you will see that MACINA SPORT 620 price is 60.52% higher.
Hybrid e-bikes average weight
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 24.4 kg (53.79 lbs), the MACINA SPORT 620 model is slightly heavier than average. In short, the average Hybrid e-bike weight is 2.56% lower than this one.
MACINA SPORT 620 components
Fork
KTM MACINA SPORT 620 2021 e-bike is equipped with the SunTour NCX fork, and has 63mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The MACINA SPORT 620 2021 e-bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM MACINA SPORT 620 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
MACINA SPORT 620 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
