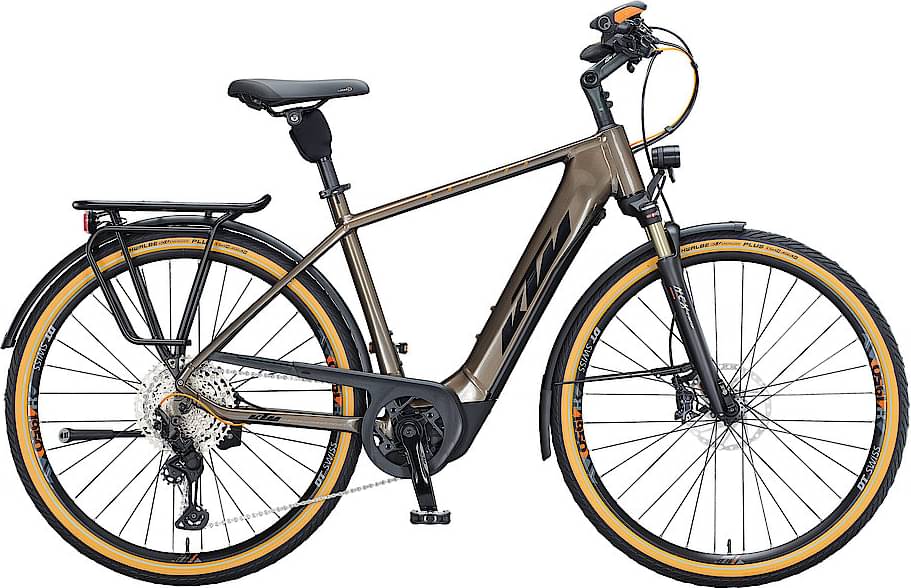

KTM MACINA STYLE 610 NYON 2021
2021 E-bike
Estimate price |
5,292$
Weight | 25.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork SunTour NCX
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT625Wh Bosch Gen.4 / T-0450
Suspension Fork
Suntour NCX-E air LO 63mm 15QLC
Drivetrain
Shift Levers
Shimano Deore M6100-12 display
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano Deore M6100-12
Wheels
Rims
KTM Line - DT Swiss 350 CL 32H 100-15TA / DT Swiss H1950 32H 622x25TC / DT Alpine III 2.34 black
Brakes
Brakes
Shimano Deore XT T8100 / M8120 4-Piston
Disk Rotors
Shimano RT64 CL 180 / 160
Cockpit
Stem
KTM Line UP3 adjust. 0-90°
Handlebar
KTM Line rizer20 640mm
Headset
KTM Team eTrekking 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
Suntour SP17-NCX suspension 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch NYON TFT Touch Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.69 mm | 1.64 mm | 1.66 mm | 1.64 mm |
| Front Center | 628 mm | 634 mm | 645 mm | 663 mm |
| Rake | 36 mm | 41 mm | 42 mm | 41 mm |
| Trail | 95 mm | 83 mm | 82 mm | 83 mm |
| Stack | 618 mm | 621 mm | 634 mm | 649 mm |
| Reach | 366 mm | 378 mm | 383 mm | 396 mm |
| Top Tube Length | 573 mm | 587 mm | 599 mm | 618 mm |
| Seat Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Seat Tube Length | 430 mm | 460 mm | 510 mm | 560 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 160 mm | 160 mm | 174 mm | 190 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1091 mm | 1097 mm | 1108 mm | 1126 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 408 mm | 408 mm | 408 mm | 408 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model
MACINA STYLE 610 NYON completes the Ktm E Macina Style model. There are 14 e-bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
KTM MACINA STYLE 620 2021 is the cheapest e-bike model and costs 4087$. KTM MACINA STYLE 610 NYON 2021 is the most expensive one and costs 4830$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Hybrid e-bikes
If you want an acceptable Hybrid e-bike you should know that the average price is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
This e-bike was released in 2021 and its price was 4830$. Comparing this to the average Hybrid e-bike price, we see that the price is 94.76% higher.
Average weight for Hybrid e-bikes
On a deeper look, we notice that the average weight of a Hybrid e-bike is 23.79 kg (52.45 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
MACINA STYLE 610 NYON weighs 25.9 kg (57.1 lbs) and is a bit heavier than the average. In conclusion, the average Hybrid e-bike weighs 8.87% less than MACINA STYLE 610 NYON.
Overview of components
Fork
The SunTour NCX is included from the factory. It has a travel distance of 63mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, KTM MACINA STYLE 610 NYON 2021, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA STYLE 610 NYON has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
MACINA STYLE 610 NYON comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, you won’t have a problem finding one that suits you.
