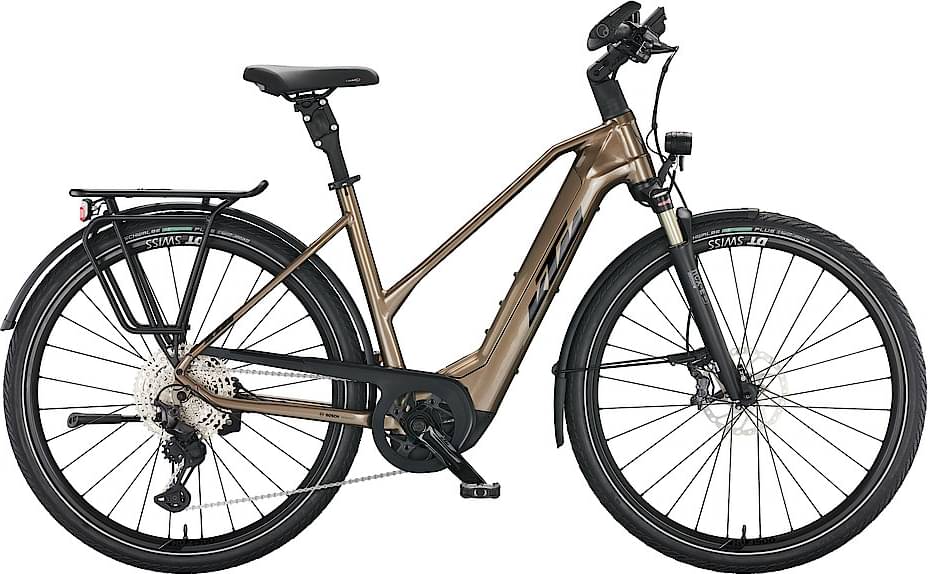

KTM MACINA STYLE 710 2022
2022 E-bike
Estimate price |
5,848$
Weight | 26.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 700c -
Travel Front 63mm -
Fork Suntour NCX
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
Suntour NCX-E Air LO 63mm 15QLC
Drivetrain
Rear Derailleur
Shimano Deore XT M8130-11 LG shadow+
Shift Levers
Shimano Deore XT M8130-11 LG
Cassette
Shimano LG600-11 / 11-50
Crank
KTM TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano LG500
Chain Guide
KTM type 7 for Bosch Gen.4
Wheels
Rims
DT Swiss HU 1900 CL 100/15TA / 622x25C
Brakes
Brakes
Shimano Deore XT T8100 / M8120 4-Piston
Disk Rotors
Shimano RT64 CL 180 / EM600 CL 160
Cockpit
Stem
KTM Line adjust. 0-60° internal
Handlebar
KTM Line rizer20 640mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Comp parallelogramm 30.9/350
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.55 mm | 1.56 mm |
| Front Center | 645 mm | 645 mm | 656 mm | 671 mm |
| Rake | 37 mm | 37 mm | 37 mm | 35 mm |
| Trail | 94 mm | 88 mm | 88 mm | 90 mm |
| Stack | 583 mm | 603 mm | 620 mm | 638 mm |
| Reach | 391 mm | 395 mm | 400 mm | 410 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1104 mm | 1104 mm | 1115 mm | 1130 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 774 mm | 808 mm | 840 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
MACINA STYLE 710 is part of the Ktm E Macina Style model. KTM launched 14 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA STYLE 730 2022 has a starting price of 4565$. KTM MACINA STYLE 710 2022 on the other hand is the most expensive at 5414$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, this doesn’t mean that if you spend less money on a Hybrid e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
When KTM released this model in 2022, its price was 5414$. Comparing the average cost of a Hybrid e-bike to this one, you will see that MACINA STYLE 710 price is 118.31% more expensive.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
MACINA STYLE 710 weighs 26.9 kg (59.3 lbs) and is considerably heavier than the average. In conclusion, the average Hybrid e-bike weighs 13.07% less than MACINA STYLE 710.
Overview of components
Fork
The MACINA STYLE 710 comes factory-installed with the Suntour NCX fork. This has a travel range of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When it comes to wheels, the MACINA STYLE 710 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
MACINA STYLE 710 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
