Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Travel Front 63mm -
Fork Suntour
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh SMART SYSTEM hor. -
Drivetrain 1 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina Trekking Onroad Alloy6061; PT750Wh Bosch Gen.4 / T-2940
Suspension Fork
Suntour NCX32-D coil LO 63mm
Drivetrain
Rear Derailleur
Shimano Deore M4120-10 SGS shadow
Shift Levers
Shimano Deore M4100-10 display
Cassette
Shimano Deore M4100-10 / 11-42
Crank
KTM E-COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e10 EPT e-bike
Chain Guide
KTM type 7 for Bosch Gen.4
Pedals
Trekking-Pedal VP-616 anti-slip
Wheels
Rims
KTM Line - Shimano Deore M6000 CL 32H 100-5QR / Ambrosio Sport 25 700C 32H 622x25C / DT Champion 2.0 black
Brakes
Brakes
Shimano MT200 / MT200 2-Piston
Cockpit
Stem
STEM
Handlebar
KTM Line rizer20 640mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Lookin+
Seatpost
KTM Line Elegance suspension 30.9/300
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 SMART SYSTEM - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh SMART SYSTEM hor.
Charger
Bosch STANDARD Charger 4A SMART SYSTEM
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.53 mm | 1.55 mm | 1.56 mm |
| Front Center | 645 mm | 645 mm | 656 mm | 671 mm |
| Rake | 42 mm | 42 mm | 42 mm | 41 mm |
| Trail | 86 mm | 79 mm | 79 mm | 80 mm |
| Stack | 583 mm | 603 mm | 620 mm | 638 mm |
| Reach | 391 mm | 395 mm | 400 mm | 410 mm |
| Top Tube Length | 572 mm | 582 mm | 592 mm | 607 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 460 mm | 510 mm | 560 mm | 600 mm |
| Head Tube Angle | 69.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 120 mm | 137 mm | 155 mm | 174 mm |
| Chainstay Length | 466 mm | 466 mm | 466 mm | 466 mm |
| Wheelbase | 1104 mm | 1104 mm | 1115 mm | 1130 mm |
| Bottom Bracket Drop | 62 mm | 62 mm | 62 mm | 62 mm |
| Standover Height | 774 mm | 808 mm | 840 mm | 867 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

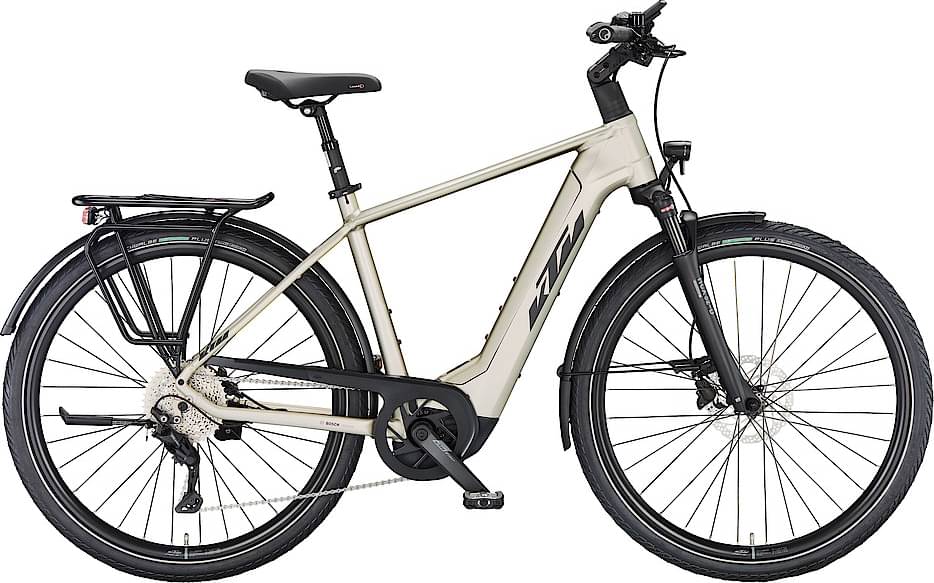

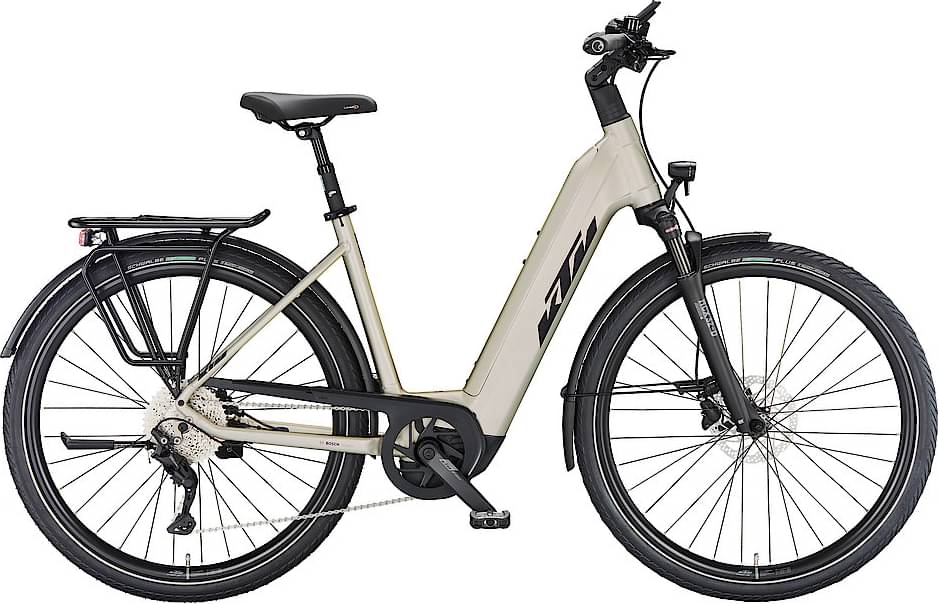

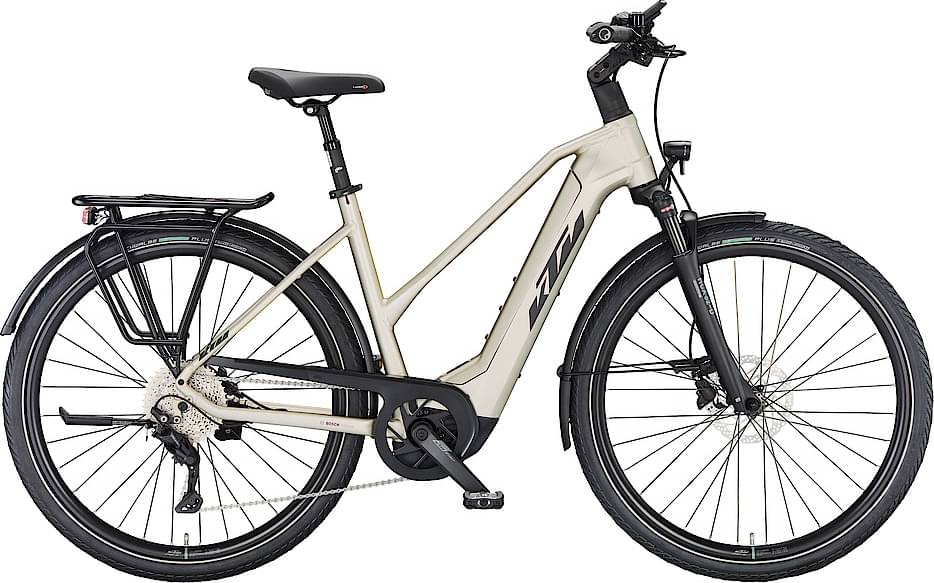

MACINA STYLE 740 is a Ktm E Macina Style model. There are 14 e-bikes that carry this model name. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Hybrid e-bikes average price
According to our calculations, the average cost of a Hybrid e-bike that is reliable is 2480$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Hybrid e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Hybrid e-bikes average weight
Hybrid e-bikes have an average weight of 23.79 kg (52.45 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
KTM MACINA STYLE 740 it’s weighing 27.5 kg (60.63 lbs). At this weight, is much heavier than average. In other words, this model is 15.59% heavier than the average Hybrid e-bike.
MACINA STYLE 740 components
Fork
The Suntour is included from the factory. It has a travel distance of 63mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels size
When it comes to wheels, the MACINA STYLE 740 e-bike is equipped with the 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
MACINA STYLE 740 comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
