Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset SLX -
Suspension Hardtail -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, lithium-ion, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 32 Rhythm E-Bike
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
KTM Team, ISIS, 170mm length
Chain
Shimano SLX M7100, 12-speed
Chain Guide
N/A
Pedals
VP-195E alloy
Wheels
Front Hub
Shimano SLX M7110B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
Shimano SLX M7110B, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
Ambrosio E30 Trail, 32 hole
Spokes
Front: DT Swiss Champion, 2.0, black, Rear: DT Swiss Alpine II, 2.34, black
Tires
Schwalbe Nobby Nic, Performance, TLR
Brakes
Brakes
Shimano MT420, 4-piston, Shimano RT64 180mm CENTER LOCK rotors
Brake Levers
Shimano MT420
Cockpit
Stem
KTM Team, with Kiox mount
Handlebar
KTM Team Flat, 720mm width
Grips
Ergon GE10 Evo ergonomic
Headset
KTM Team
Seat
Saddle
Ergon SM10
Seatpost
KTM Team, 400mm
Motor & Battery
Motor
Bosch Performance CX Gen.4, 75Nm torque
Battery
Bosch PowerTube, lithium-ion, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 678 mm | 689 mm | 708 mm |
| Rake | 51 mm | 46 mm | 46 mm |
| Trail | 93 mm | 98 mm | 98 mm |
| Stack | 614 mm | 621 mm | 632 mm |
| Reach | 396 mm | 410 mm | 426 mm |
| Top Tube Length | 585 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1132 mm | 1143 mm | 1163 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 792 mm | 811 mm | 838 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

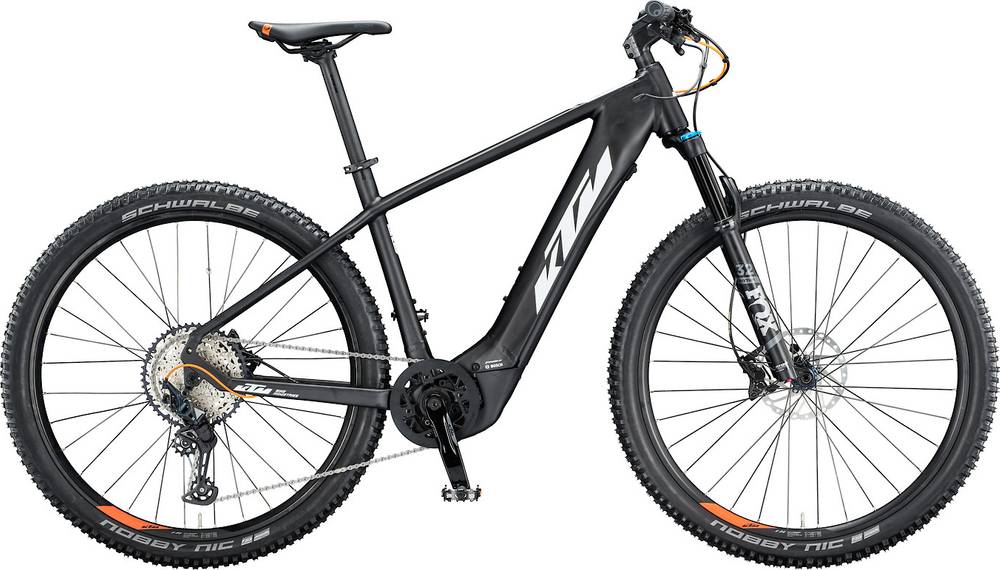

Macina Team 291 is part of the Ktm E Macina Team model. KTM released 39 e-bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Trail e-bikes average weight
Trail e-bikes have an average weight of 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Macina Team 291 weighs 22.7 kg (50.04 lbs) and is slightly lighter than the average. To sum up, it’s 4.41% lighter than the average weight of Trail e-bikes.
Overview of components
Fork
The Fox Rhythm Float 32 is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When it comes to wheels, the Macina Team 291 e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Macina Team 291 comes with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
