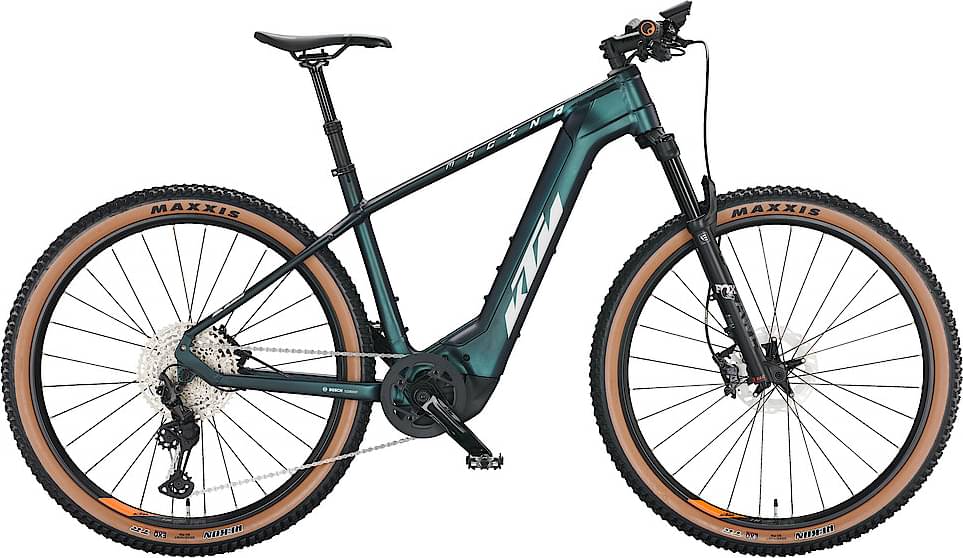

KTM MACINA TEAM 791 2022
2022 E-bike
Estimate price |
5,848$
Weight | 23.9 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame aluminium -
Wheels 29" -
Travel Front 120mm -
Fork Fox AWL
-
Groupset XT -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 750Wh hor. smart system -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
MD
165cm - 177cm
LG
175cm - 188cm
XL
185cm - 198cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT750Wh Bosch Gen.4 / M-2706
Suspension Fork
FOX 34 Float AWL 29" e-bike 120mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
KTM TEAM ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
Shimano M6100-12
Wheels
Rims
KTM Line
Brakes
Brakes
Shimano Deore XT M8100 / M8120 4-Piston
Disk Rotors
Shimano MT800 CL 180 / EM810 CL 180 freeza
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Team flat 2X 720mm
Headset
Acros AICR internal 1.1/8>1.5" angle limit
Seat
Saddle
Selle San Marco RND Manganese Rails
Seatpost
KTM Comp dropper internal
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 smart system - 25km/h / 85Nm
Battery
Bosch PowerTUBE 750Wh hor. smart system
Remote
Bosch KIOX TFT Display smart system
Charger
Bosch STANDARD Charger 4A smart system
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL |
|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.48 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm |
| Front Center | 677 mm | 688 mm | 709 mm |
| Rake | 46 mm | 51 mm | 52 mm |
| Trail | 102 mm | 89 mm | 88 mm |
| Stack | 614 mm | 621 mm | 632 mm |
| Reach | 396 mm | 410 mm | 426 mm |
| Top Tube Length | 585 mm | 601 mm | 621 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm |
| Chainstay Length | 470 mm | 470 mm | 470 mm |
| Wheelbase | 1141 mm | 1152 mm | 1173 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm |
| Standover Height | 802 mm | 803 mm | 830 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 165 cm | 175 cm | 185 cm |
| Rider Max Height | 177 cm | 188 cm | 198 cm |
Model Overview
MACINA TEAM 791 is a Ktm E Macina Team model. 39 e-bikes variations carry this model name so far. Take a sneak peek at all Ktm E Macina Team e-bikes models from 2022, by clicking here.
Model range prices
KTM MACINA TEAM 693 2022 is the most affordable e-bike of this model and has a price of 3928$. On the other hand, KTM MACINA TEAM 791 2022, is the most expensive and costs 5414$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
When KTM released this model in 2022, its price was 5414$. Doing a quick comparison, we notice that MACINA TEAM 791 price is 60.89% more expensive than the average cost of a Trail e-bike.
Trail e-bikes average weight
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
KTM MACINA TEAM 791 it’s weighing 23.9 kg (52.69 lbs). At this weight, is slightly heavier than average. In conclusion, the average Trail e-bike weighs 0.84% less than MACINA TEAM 791.
MACINA TEAM 791 components
Fork
The Fox AWL is included from the factory. It has a travel distance of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the MACINA TEAM 791 model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM MACINA TEAM 791 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 165 cm – 198 cm (5.41 ft – 6.5 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
