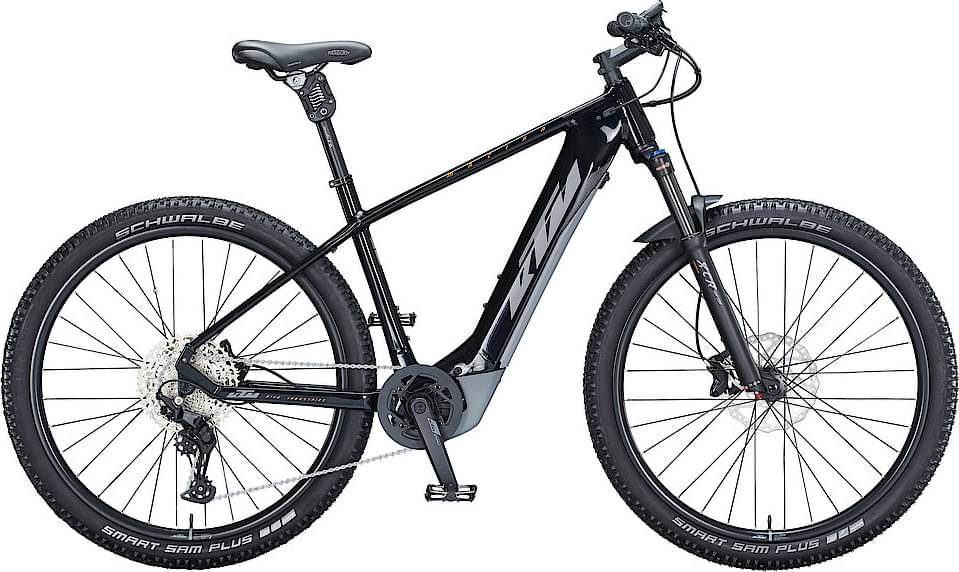

KTM MACINA TEAM XL 2021
2021 E-bike
Estimate price |
4,529$
Weight | 25.5 kg E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 120mm -
Fork SunTour XCR 34
-
Groupset Deore -
Suspension Hardtail -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch PowerTUBE 625Wh hor. -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Macina MTB 29" Alloy6061; PT625Wh Bosch Gen.4 / M-0666
Suspension Fork
Suntour XCR 34 air 29" LOR 120mm 15x110 taper
Drivetrain
Shift Levers
Shimano Deore M5100-11 display
Cassette
Shimano Deore M5100-11 / 11-51
Crank
KTM COMP ISIS 170mm Q16
Bottom Bracket
Bosch, press-fit
Chain
KMC e11 Sport EPT e-bike
Wheels
Rims
KTM Line - DT Swiss 370 6bolt 32H 110-15TA / Ryde Andra29 32H 622x29C / DT Alpine II 2.34 black
Brakes
Brakes
Tektro HD-M750 / E730 4-Piston
Disk Rotors
Tektro TR-17 2.3mm 6bolt 203 / 180
Cockpit
Stem
Ergotec Piranha2 6°
Handlebar
Ergotec low rizer GH15 Savety 740mm
Headset
KTM Team eMTB 1.1/8"-1.5" angle limit
Seat
Saddle
Selle Royal Viaggio
Seatpost
bySchulz G2.ST suspension 30.9/400
Motor & Battery
Motor
Bosch PERFORMANCE CX Gen.4 - 25km/h / 85Nm
Battery
Bosch PowerTUBE 625Wh hor.
Remote
Bosch INTUVIA LCD Display with Remote
Charger
Bosch STANDARD Charger 4A
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.51 mm | 1.48 mm | 1.46 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 678 mm | 689 mm | 708 mm | 729 mm |
| Rake | 46 mm | 51 mm | 51 mm | 50 mm |
| Trail | 102 mm | 89 mm | 89 mm | 90 mm |
| Stack | 614 mm | 621 mm | 632 mm | 645 mm |
| Reach | 396 mm | 410 mm | 426 mm | 443 mm |
| Top Tube Length | 585 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 68 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 120 mm | 125 mm | 137 mm | 150 mm |
| Chainstay Length | 461 mm | 461 mm | 461 mm | 461 mm |
| Wheelbase | 1132 mm | 1143 mm | 1163 mm | 1184 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Standover Height | 792 mm | 811 mm | 838 mm | 862 mm |
| Wheels | 29" | 29" | 29" | 29" |
About this model
MACINA TEAM XL is a Ktm E Macina Team model. KTM released 39 e-bikes variations of this model so far. You can get a glimpse at all models from 2021, by clicking on this link.
Model range prices
The most economical model, the KTM MACINA TEAM 273 2021 has a starting price of 3450$. KTM MACINA TEAM 291 2021 on the other hand is the most expensive at 4512$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
When KTM released this model in 2021, its price was 4193$. Comparing this to the average Trail e-bike price, we see that the price is 24.61% higher.
Average weight for Trail e-bikes
The average weight for Trail e-bikes is 23.7 kg (52.25 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
a bit heavier than average, MACINA TEAM XL has a weight of 25.5 kg (56.22 lbs). In short, the average Trail e-bike weight is 7.59% lower than this one.
MACINA TEAM XL components
Fork
The MACINA TEAM XL comes factory-installed with the SunTour XCR 34 fork. This has a travel range of 120mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels
When leaving the production line, the MACINA TEAM XL model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The MACINA TEAM XL has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
