Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Myroon 29" Premium Carbon UDH / M-2876
Suspension Fork
FOX 32 Float SC 29" Performance 100mm remote 15x110
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore XT M8100-12 / 10-51
Crank
Shimano Deore XT M8100 34T
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano M8100-12
Wheels
Rims
Mavic Crossmax 29 CL 110/15TA / 622x25TC
Brakes
Brakes
Shimano Deore XT M8100 / M8100 2-Piston
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Team flat 2X 720mm
Headset
Acros AICR internal 1.1/8"-1.5" angle limit
Seat
Saddle
Selle San Marco Shortfit Open Fit Wide
Seatpost
KTM Team 27.2/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.37 mm | 1.33 mm | 1.31 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 671 mm | 692 mm | 713 mm | 734 mm |
| Rake | 44 mm | 43 mm | 44 mm | 44 mm |
| Trail | 93 mm | 94 mm | 93 mm | 93 mm |
| Stack | 591 mm | 601 mm | 610 mm | 619 mm |
| Reach | 422 mm | 440 mm | 457 mm | 474 mm |
| Top Tube Length | 587 mm | 607 mm | 627 mm | 647 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1089 mm | 1110 mm | 1131 mm | 1152 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 758 mm | 772 mm | 800 mm | 829 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

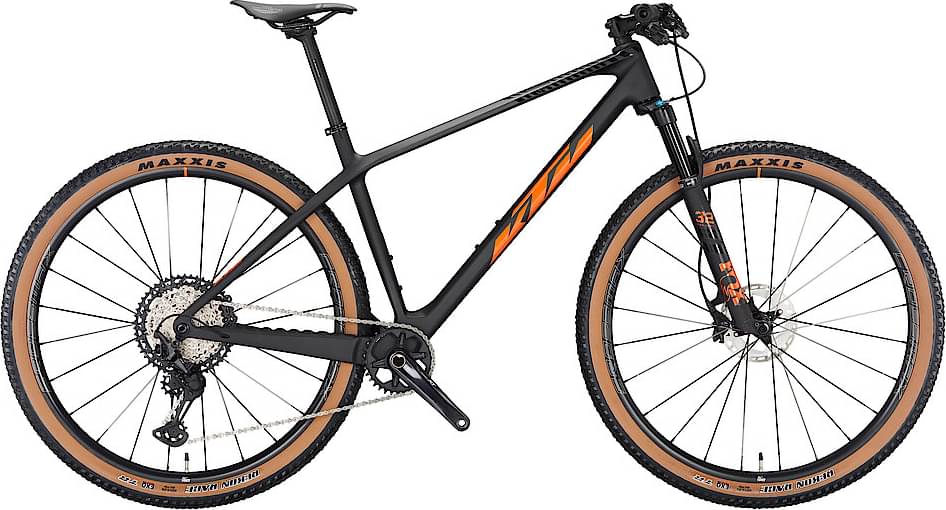

MYROON MASTER is a Ktm Myroon model. KTM launched 25 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 10.2 kg (22.49 lbs), KTM bike is much lighter than average. In other words, this model is 21.57% lighter than the average Crosscountry bike.
Overview of components
Fork
This bike has the Fox Performance Float 32 fork installed. The fork’s travel is 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
The wheels on MYROON MASTER are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The MYROON MASTER has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
