Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork Fox Performance Float 32
-
Groupset XTR -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Step-Cast Performance, remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XTR M9100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XTR M9100, 12-speed
Cassette
Shimano XTR M9100, 12-speed, 10-51 tooth
Crank
Shimano XTR M9100
Chain
Shimano XTR M9100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
KTM Team CC wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
KTM Team CC wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
KTM Team CC wheelset, DT Swiss-made rims, tubeless ready
Spokes
KTM Team CC wheelset
Tires
Front: Maxxis Rekon, 3C MaxxTerra, EXO, TR, Rear: Maxxis Rekon Race, EXO, TR
Brakes
Brakes
Shimano XTR M9100, 2-piston, Shimano MT900 CENTER LOCK 160mm Freeza rotors
Brake Levers
Shimano XTR M9100
Cockpit
Stem
KTM Team MTB, 7° drop
Handlebar
KTM Team Flat, 720mm width
Grips
KTM Team silicone
Headset
KTM Team drop-in
Seat
Saddle
Selle Italia X-LR Manganese
Seatpost
KTM Team, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.41 mm | 1.38 mm | 1.35 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 653 mm | 674 mm | 695 mm | 715 mm |
| Rake | 51 mm | 52 mm | 51 mm | 51 mm |
| Trail | 75 mm | 74 mm | 75 mm | 75 mm |
| Stack | 596 mm | 605 mm | 615 mm | 624 mm |
| Reach | 411 mm | 428 mm | 446 mm | 463 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 427 mm | 427 mm | 427 mm | 427 mm |
| Wheelbase | 1071 mm | 1092 mm | 1113 mm | 1133 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 758 mm | 769 mm | 800 mm | 829 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |

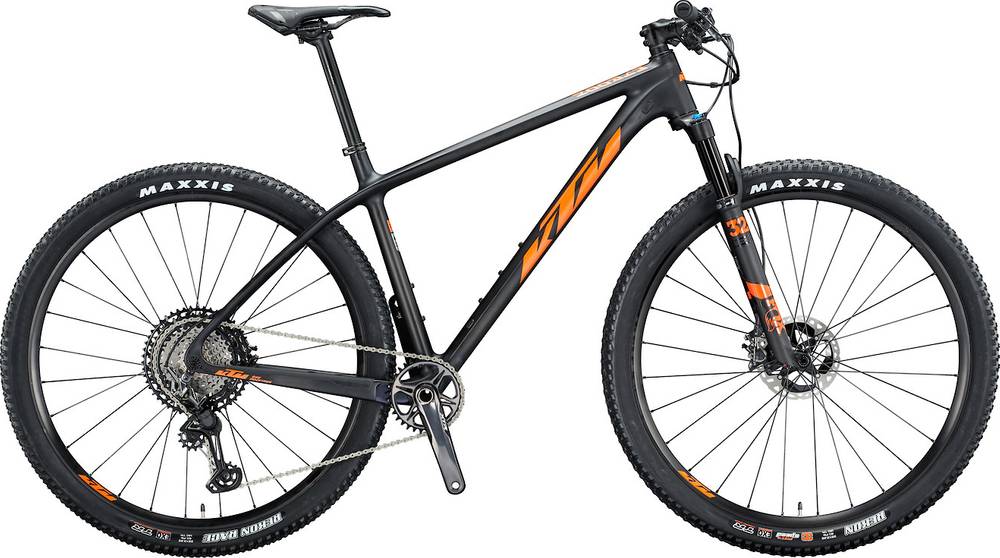

Model Overview
Myroon Prime is part of the Ktm Myroon model. KTM launched 25 bikes of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 9.6 kg (21.16 lbs), KTM bike is much lighter than average. In other words, this model is 29.17% lighter than the average Crosscountry bike.
Overview of components
Fork
This bike has the Fox Performance Float 32 fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
As for the wheels, KTM Myroon Prime 2020, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, these wheels are not ideal for smaller people.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM Myroon Prime has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
Myroon Prime comes in 4 sizes, that range from 151 cm – 184 cm (4.95 ft – 6.04 ft). In conclusion, it won’t take much to find one that’s right for you.
