Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 80mm -
Fork Suntour XCE
-
Groupset Acera, Altus -
Suspension Hardtail -
Drivetrain 2 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5" Alloy 6061 MTB / M-1100
Suspension Fork
Suntour XCE28 coil 29" 80mm
Drivetrain
Rear Derailleur
Shimano Acera M3020-8 SGS
Front Derailleur
Shimano Altus M313
Shift Levers
Shimano EF505-8 display
Cassette
Shimano HG400-8 / 11-40
Crank
Shimano M315 36-22T
Chain
KMC Z8.3
Pedals
KTM Line MTB BF
Wheels
Rims
KTM Line - Shimano HB-TX505 CL 32H 100 QR / KTM 27.5" Sport 32H; 584x20 / Pillar 2.0 INOX, silver
Brakes
Brakes
Shimano EF505 2-Piston
Cockpit
Stem
KTM Line 7°
Handlebar
KTM Line rizer12
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Line 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.42 mm | 1.45 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 640 mm | 646 mm | 668 mm | 689 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 560 mm | 574 mm | 587 mm | 606 mm |
| Reach | 395 mm | 396 mm | 412 mm | 426 mm |
| Top Tube Length | 565 mm | 570 mm | 590 mm | 610 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 320 mm | 370 mm | 420 mm | 470 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1076 mm | 1082 mm | 1104 mm | 1125 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 719 mm | 729 mm | 756 mm | 788 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

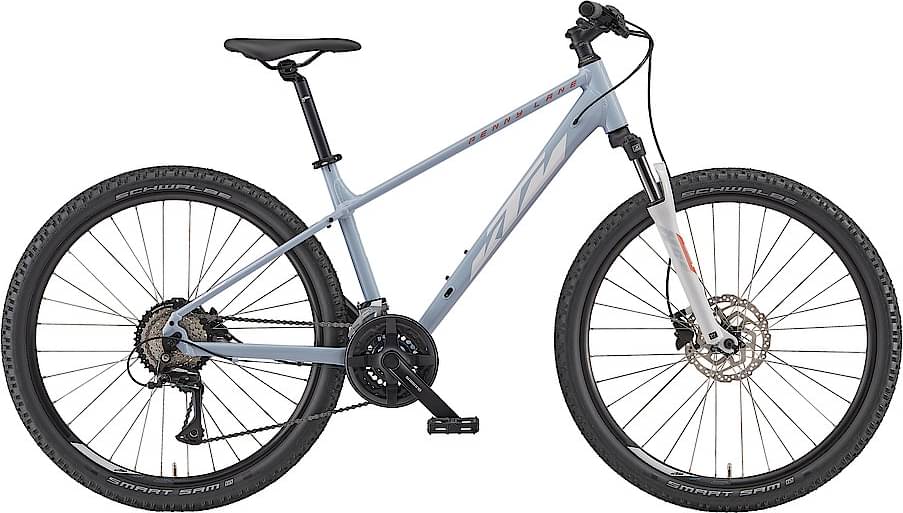

PENNY LANE 272 belongs to the Ktm Penny model. 9 bikes variations carry this model name so far. You can easily view all of the Ktm Penny bikes models from 2023, here.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.31 kg (27.14 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
KTM PENNY LANE 272 it’s weighing 14.7 kg (32.41 lbs). At this weight, is much heavier than average. In other words, this model is 19.42% heavier than the average Crosscountry bike.
Overview of components
Fork
The Suntour XCE is included from the factory. It has a travel distance of 80mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The PENNY LANE 272 2023 bike is equipped with 27.5″ aluminum wheels when leaving the factory. The 27.5″ wheels are a great choice for smaller riders. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM PENNY LANE 272 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
KTM PENNY LANE 272 bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, you can easily find one that suits you.
