Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 27.5" -
Travel Front 100mm -
Fork Suntour NVX
-
Groupset Tourney, Altus -
Suspension Hardtail -
Drivetrain 3 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
27.5" Alloy 6061 MTB STREET / M-2080
Suspension Fork
Suntour NVX30 coil 29" 100mm
Drivetrain
Rear Derailleur
Shimano Tourney RD-TX800
Front Derailleur
Shimano Altus M313
Shift Levers
Shimano EF505-8 display
Cassette
Shimano HG200-8 / 12-32
Crank
Shimano FC-TY301 / 42-34-24T
Chain
KMC Z8.3
Pedals
KTM Line MTB BF
Wheels
Rims
KTM Line - Shimano DH-3D37 CL 32H 100 QR / KTM 27.5" Sport 32H; 584x20 / Pillar 2.0 INOX, silver
Brakes
Brakes
Shimano EF505 2-Piston
Cockpit
Stem
KTM Line 15°
Handlebar
KTM Line rizer12
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Line 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.43 mm | 1.42 mm | 1.42 mm |
| Bottom Bracket Height | 310 mm | 310 mm | 310 mm | 310 mm |
| Front Center | 646 mm | 668 mm | 689 mm | 711 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 573 mm | 586 mm | 605 mm | 624 mm |
| Reach | 395 mm | 411 mm | 425 mm | 440 mm |
| Top Tube Length | 569 mm | 589 mm | 609 mm | 629 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 370 mm | 420 mm | 470 mm | 520 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 125 mm | 140 mm | 160 mm | 180 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1081 mm | 1103 mm | 1124 mm | 1146 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 728 mm | 755 mm | 787 mm | 818 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

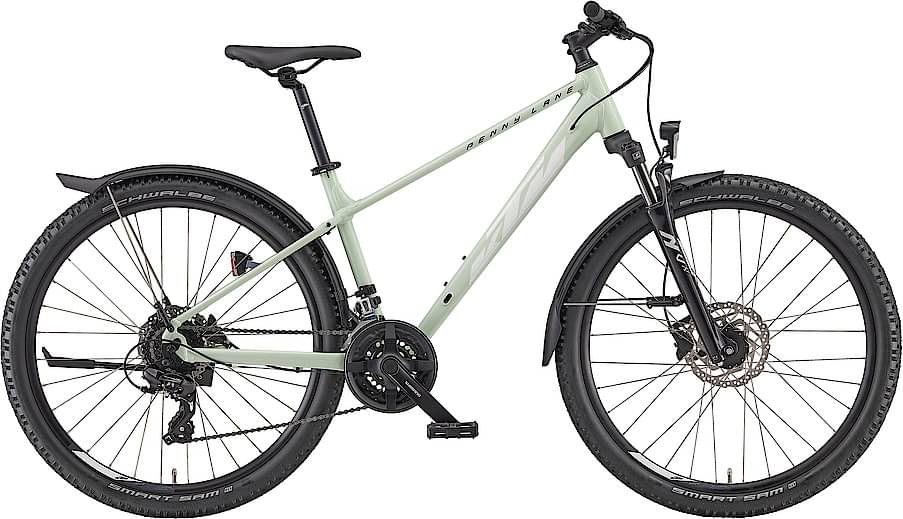

PENNY LANE STREET 27 is part of the Ktm Penny model. KTM launched 9 bikes of this model so far. Take a sneak peek at all Ktm Penny bikes models from 2023, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.31 kg (27.14 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
PENNY LANE STREET 27 weighs 16.2 kg (35.71 lbs) and is much heavier than the average. In short, the average Crosscountry bike weight is 31.6% lower than this one.
PENNY LANE STREET 27 components
Fork
The fork installed on this bike is the Suntour NVX model. The travel on this model is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
When it comes to wheels, the PENNY LANE STREET 27 bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM PENNY LANE STREET 27 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
