Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 150mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Performance
Rear Shock
FOX FLOAT DPX2 Performance Elite, 3-position lever, remote lockout, 230mm x 65mm
Drivetrain
Rear Derailleur
Shimano XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XT M8100, 12-speed
Cassette
Shimano XT M8100, 12-speed, 10-51 tooth
Crank
Shimano XT M8120
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano XT M8100, 12-speed
Chain Guide
Upper guide
Pedals
N/A
Wheels
Front Hub
KTM Comp Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
KTM Comp Trail wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
KTM Comp Trail wheelset, DT Swiss-made rims, tubeless ready
Spokes
KTM Comp Trail wheelset
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO, TR, Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO, TR
Brakes
Brakes
Shimano XT M8120, 4-piston, Shimano MT800 CENTER LOCK 180mm Freeza rotors
Brake Levers
Shimano XT M8120
Cockpit
Stem
KTM Team Trail, 35mm
Handlebar
KTM Team Trail, 35mm diameter, 25mm rise, 800mm width
Grips
Ergon GE10 Evo ergonomic
Headset
KTM Team drop-in
Seat
Saddle
Ergon SM10 Sport Men
Seatpost
FOX Transfer Performance dropper
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 752 mm | 775 mm | 807 mm |
| Rake | 51 mm | 52 mm | 51 mm |
| Trail | 107 mm | 106 mm | 107 mm |
| Stack | 602 mm | 616 mm | 630 mm |
| Reach | 441 mm | 457 mm | 484 mm |
| Top Tube Length | 586 mm | 606 mm | 636 mm |
| Seat Tube Angle | 76.5 ° | 76.5 ° | 76.5 ° |
| Seat Tube Length | 430 mm | 450 mm | 480 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 90 mm | 105 mm | 120 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1182 mm | 1205 mm | 1237 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Standover Height | 801 mm | 801 mm | 801 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

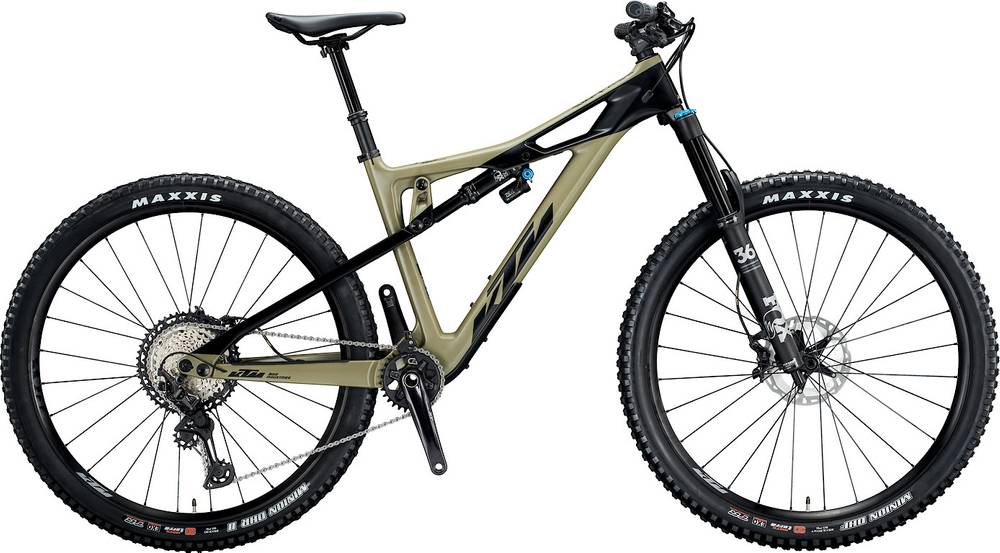

Model Overview
Prowler Master belongs to the Ktm Prowler model. KTM released 15 bikes variations of this model so far. You can easily view all of the Ktm Prowler bikes models from 2020, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro bikes
According to our math, the average price for a trustworthy Enduro bike is 3599$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Enduro bikes average weight
Enduro bikes have an average weight of 14.27 kg (31.46 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.8 kg (30.42 lbs), KTM bike is slightly lighter than average. To sum up, it’s 3.41% lighter than the average weight of Enduro bikes.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 150mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the FOX FLOAT DPX2 Performance Elite rear shock model, which has a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When leaving the production line, the Prowler Master model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM Prowler Master is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
KTM Prowler Master bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
KTM Prowler Master includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
