Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revelator Alto Premium Carbon / R-3920
Suspension Fork
Revelator Alto Premium Carbon F15
Drivetrain
Rear Derailleur
Shimano 105 R7000 GS
Front Derailleur
Shimano 105 R7000
Shift Levers
Shimano 105 R7020
Cassette
Shimano 105 R7000 / 11-32
Crank
Shimano 105 R7000 50-34
Chain
Shimano LG500
Wheels
Rims
Mavic KSYRIUM S DISC CL 100/12TA / 622x19TC
Brakes
Brakes
Shimano 105 R7070 hydraulic
Cockpit
Stem
FSA NS Road -6° ACR
Handlebar
FSA Energy Compact Road
Headset
FSA ACR drop/in 1.5" internal
Seat
Saddle
Prologo Kappa RS STN Rails
Seatpost
KTM CompLink zero Alloy aero/350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 268 mm |
| Front Center | 561 mm | 577 mm | 592 mm | 595 mm | 604 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 64 mm | 64 mm | 61 mm | 61 mm |
| Stack | 525.2 mm | 541.2 mm | 555.5 mm | 564.7 mm | 577 mm |
| Reach | 367.1 mm | 382.5 mm | 393.2 mm | 398.2 mm | 402 mm |
| Top Tube Length | 516 mm | 536 mm | 556 mm | 569 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 965 mm | 981 mm | 997 mm | 1001 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 739 mm | 763 mm | 784 mm | 800 mm | 817 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

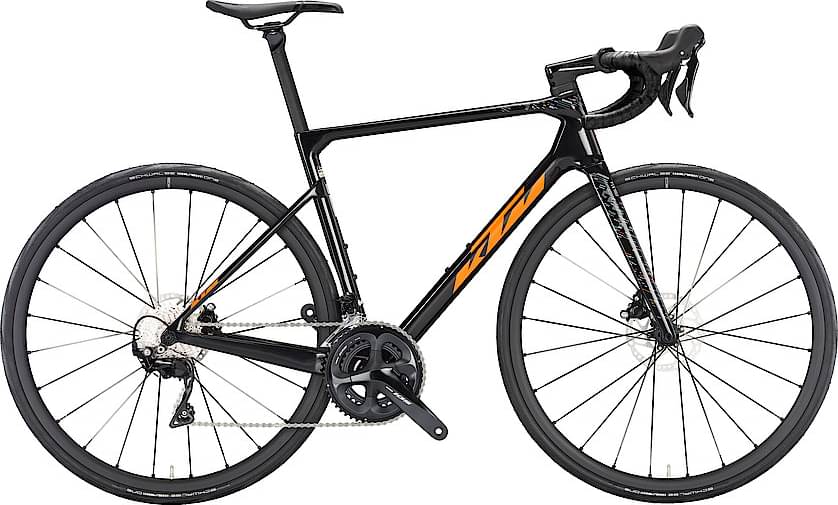

REVELATOR ALTO ELITE completes the Ktm Revelator model. KTM released 20 bikes variations of this model so far. Take a sneak peek at all Ktm Revelator bikes models from 2023, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 8.3 kg (18.3 lbs), the REVELATOR ALTO ELITE model is considerably heavier than average. In other words, this model is 13.08% heavier than the average Aero bike.
REVELATOR ALTO ELITE components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The REVELATOR ALTO ELITE 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM REVELATOR ALTO ELITE has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
