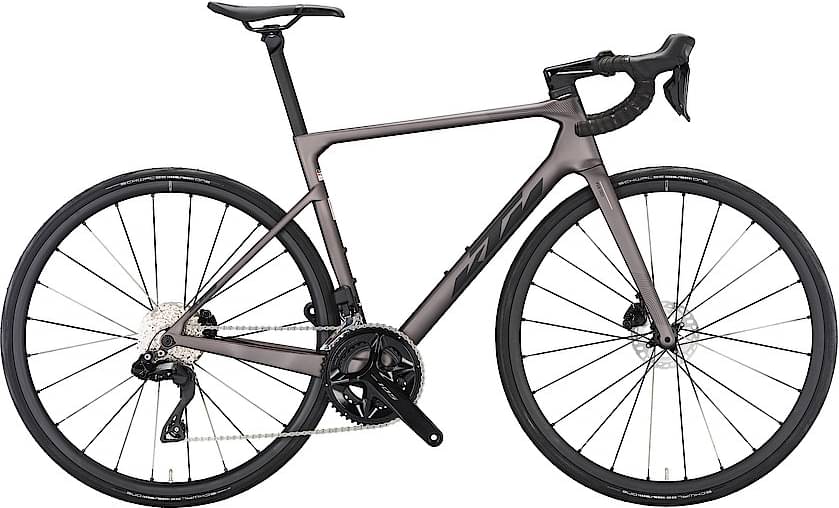

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset 105 Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revelator Alto Premium Carbon / R-3920
Suspension Fork
Revelator Alto Premium Carbon F15
Drivetrain
Rear Derailleur
Shimano 105 Di2 R7150-12 shadow
Front Derailleur
Shimano 105 Di2 R7150
Shift Levers
Shimano 105 Di2 R7170
Cassette
Shimano 105 R7100-12 / 11-34
Crank
Shimano 105 R7100 50-34
Chain
Shimano M6100-12
Wheels
Rims
Mavic KSYRIUM S DISC CL 100/12TA / 622x19TC
Brakes
Brakes
Shimano 105 R7170 hydraulic
Cockpit
Stem
FSA NS Road -6° ACR
Handlebar
FSA Energy Compact Road
Headset
FSA ACR drop/in 1.5" internal
Seat
Saddle
Selle San Marco RND Manganese Rails
Seatpost
KTM CompLink zero Alloy aero/350
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 268 mm |
| Front Center | 561 mm | 577 mm | 592 mm | 595 mm | 604 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 64 mm | 64 mm | 61 mm | 61 mm |
| Stack | 525.2 mm | 541.2 mm | 555.5 mm | 564.7 mm | 577 mm |
| Reach | 367.1 mm | 382.5 mm | 393.2 mm | 398.2 mm | 402 mm |
| Top Tube Length | 516 mm | 536 mm | 556 mm | 569 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 965 mm | 981 mm | 997 mm | 1001 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 739 mm | 763 mm | 784 mm | 800 mm | 817 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
REVELATOR ALTO ELITE Di2 is a Ktm Revelator model. 20 bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Aero bikes
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, even if your budget is less than the average, you might still be able to get a top-quality Aero bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Aero bikes
Aero bikes weigh an average of 7.34 kg (16.18 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
KTM REVELATOR ALTO ELITE Di2 it’s weighing 7.9 kg (17.42 lbs). At this weight, is a bit heavier than average. In short, the average Aero bike weight is 7.63% lower than this one.
REVELATOR ALTO ELITE Di2 components
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
The wheels on REVELATOR ALTO ELITE Di2 are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The REVELATOR ALTO ELITE Di2 has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
