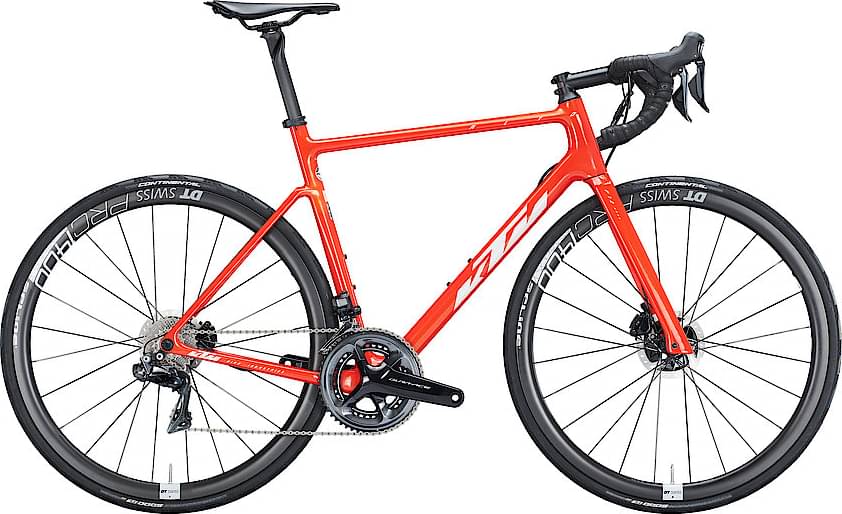

KTM REVELATOR ALTO EXONIC 2021
2021 Road
Estimate price |
9,364$
Weight | 6.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revelator Alto Nano Premium Carbon / R-9814
Suspension Fork
Revelator Alto NanoPremium Carbon F12
Drivetrain
Shift Levers
Shimano Dura Ace Di2 R9170 STI 2x11
Cassette
Shimano Dura Ace R9100 / 11-28
Crank
Shimano Dura Ace R9100 52-36
Chain
Shimano HG901-11
Wheels
Rims
DT Swiss PRC 1400 Spline DB 35 Carbon CL 100-12TA / 622x18TC TLR
Brakes
Brakes
Shimano Dura Ace R9170 2-Piston
Disk Rotors
Shimano RT900 CL 140 / 140 Freeza
Cockpit
Stem
KTM Prime Road 6°
Handlebar
KTM Prime Road Carbon
Headset
KTM Team drop/in 1.1/8"-1.1/4" road
Seat
Saddle
Fizik Antares R5
Seatpost
KTM ProLink zero Carbon aero/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SX | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.4 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 268 mm |
| Front Center | 576 mm | 593 mm | 611 mm | 612 mm | 620 mm |
| Rake | 38 mm | 43 mm | 42 mm | 39 mm | 39 mm |
| Trail | 76 mm | 64 mm | 65 mm | 68 mm | 68 mm |
| Stack | 538 mm | 554 mm | 569 mm | 578 mm | 590 mm |
| Reach | 377 mm | 393 mm | 407 mm | 409 mm | 413 mm |
| Top Tube Length | 515 mm | 535 mm | 555 mm | 568 mm | 581 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74 ° | 74 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 170 mm | 185 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 997 mm | 1015 mm | 1017 mm | 1026 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 747 mm | 765 mm | 786 mm | 797 mm | 814 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
Model Overview
REVELATOR ALTO EXONIC completes the Ktm Revelator model. KTM released 20 bikes variations of this model so far. You can easily view all of the Ktm Revelator bikes models from 2021, here.
Model range prices
KTM REVELATOR ALTO PRO 2021 is the cheapest bike model and costs 2335$. KTM REVELATOR LISSE SONIC 2021 is the most expensive one and costs 10086$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Aero bikes
If you want an acceptable Aero bike you should know that the average price is 4211$. However, even though the average price of an Aero bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 8546$. Comparing the average cost of an Aero bike to this one, you will see that REVELATOR ALTO EXONIC price is 102.94% more expensive.
Aero bikes average weight
The average weight for Aero bikes is 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
REVELATOR ALTO EXONIC weighs 6.9 kg (15.21 lbs) and is a bit lighter than the average. To sum up, it’s 6.38% lighter than the average weight of Aero bikes.
REVELATOR ALTO EXONIC components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When it comes to wheels, the REVELATOR ALTO EXONIC bike is equipped with the 700c carbon model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM REVELATOR ALTO EXONIC is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
