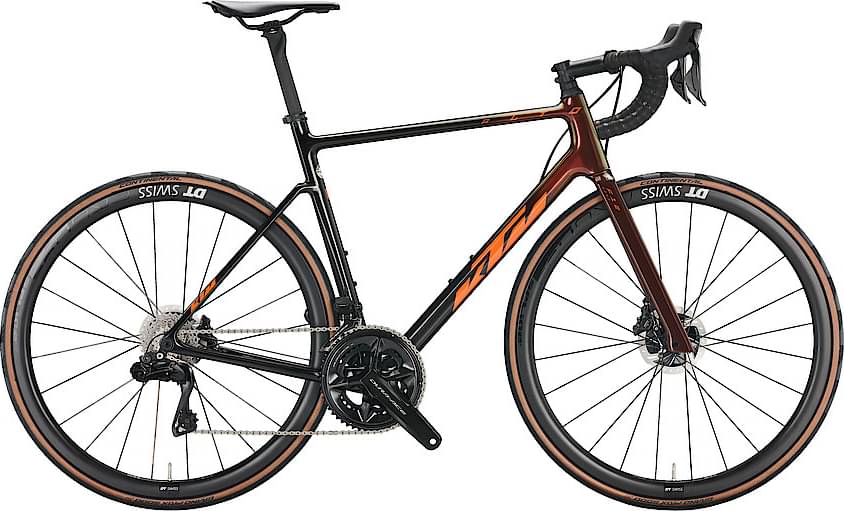

KTM REVELATOR ALTO EXONIC 2022
2022 Road
Estimate price |
10,321$
Weight | 6.8 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revelator Alto NanoPremium Carbon / R-9817
Suspension Fork
Revelator Alto NanoPremium Carbon F12
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 R9250-12 shadow
Front Derailleur
Shimano Dura Ace Di2 R9250
Shift Levers
Shimano Dura Ace Di2 R9270
Cassette
Shimano Dura Ace R9200-12 / 11-30
Crank
Shimano Dura Ace R9200 52-36
Chain
Shimano M9100-12
Wheels
Rims
DT Swiss PRC 1400 SPLINE 35 CL 100/12TA / 622x18TC
Brakes
Brakes
Shimano Dura Ace R9270 hydraulic
Disk Rotors
Shimano MT900 CL 140 / MT900 CL 140 freeza
Cockpit
Stem
KTM Prime Road 6°
Handlebar
KTM Prime Road Carbon
Headset
KTM Team drop/in 1.1/8"-1.1/4" road
Seat
Saddle
Fizik Antares R5
Seatpost
KTM ProLink zero Carbon aero/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.4 mm | 1.41 mm | 1.43 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 268 mm |
| Front Center | 576 mm | 593 mm | 611 mm | 612 mm | 620 mm |
| Rake | 47 mm | 43 mm | 42 mm | 48 mm | 48 mm |
| Trail | 60 mm | 64 mm | 65 mm | 53 mm | 53 mm |
| Stack | 538 mm | 554 mm | 569 mm | 578 mm | 590 mm |
| Reach | 377 mm | 393 mm | 407 mm | 409 mm | 413 mm |
| Top Tube Length | 515 mm | 535 mm | 555 mm | 568 mm | 581 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 74 ° | 74 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° | 73 ° | 73 ° |
| Head Tube Length | 130 mm | 145 mm | 160 mm | 170 mm | 185 mm |
| Chainstay Length | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 980 mm | 997 mm | 1015 mm | 1017 mm | 1026 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 747 mm | 765 mm | 786 mm | 797 mm | 814 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview
REVELATOR ALTO EXONIC completes the Ktm Revelator model. KTM launched 20 bikes of this model so far. Take a sneak peek at all Ktm Revelator bikes models from 2022, by clicking here.
Model range prices
KTM REVELATOR ALTO PRO 2022 is the cheapest bike model and costs 2653$. KTM REVELATOR ALTO EXONIC 2022 is the most expensive one and costs 9555$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Aero bikes average price
If you want an acceptable Aero bike you should know that the average price is 4211$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Aero bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 9555$. In conclusion, this bike price is 126.91% higher than the price of the average Aero bike.
Average weight for Aero bikes
On a deeper look, we notice that the average weight of an Aero bike is 7.34 kg (16.18 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
REVELATOR ALTO EXONIC weighs 6.8 kg (14.99 lbs) and is a bit lighter than the average. In short, the average Aero bike weight is 7.94% higher than this one.
REVELATOR ALTO EXONIC components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the REVELATOR ALTO EXONIC model has 700c carbon wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
