Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Revelator Alto Premium Carbon / R-3920
Suspension Fork
Revelator Alto NanoPremium Carbon F15
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2 R9250-12 shadow
Front Derailleur
Shimano Dura Ace Di2 R9250
Shift Levers
Shimano Dura Ace Di2 R9270
Cassette
Shimano Dura Ace R9200-12 / 11-30
Crank
Shimano Dura Ace R9200 52-36
Chain
Shimano M9100-12
Wheels
Rims
DT Swiss PRC 1400 SPLINE 35 CL 100/12TA / 622x18TC
Brakes
Brakes
Shimano Dura Ace R9270 hydraulic
Cockpit
Stem
KTM Prime Road 6°
Handlebar
FSA METRON 5D ACR Road Carbon
Headset
FSA ACR drop/in 1.5" internal
Seat
Saddle
Fizik Antares R5
Seatpost
KTM ProLink zero Carbon aero/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.43 mm | 1.41 mm | 1.41 mm | 1.42 mm | 1.44 mm |
| Bottom Bracket Height | 264 mm | 264 mm | 264 mm | 266 mm | 268 mm |
| Front Center | 561 mm | 577 mm | 592 mm | 595 mm | 604 mm |
| Rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Trail | 67 mm | 64 mm | 64 mm | 61 mm | 61 mm |
| Stack | 525.2 mm | 541.2 mm | 555.5 mm | 564.7 mm | 577 mm |
| Reach | 367.1 mm | 382.5 mm | 393.2 mm | 398.2 mm | 402 mm |
| Top Tube Length | 516 mm | 536 mm | 556 mm | 569 mm | 582 mm |
| Seat Tube Angle | 74 ° | 74 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 520 mm | 540 mm |
| Head Tube Angle | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 115 mm | 130 mm | 145 mm | 155 mm | 170 mm |
| Chainstay Length | 416 mm | 416 mm | 416 mm | 416 mm | 416 mm |
| Wheelbase | 965 mm | 981 mm | 997 mm | 1001 mm | 1010 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 739 mm | 763 mm | 784 mm | 800 mm | 817 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

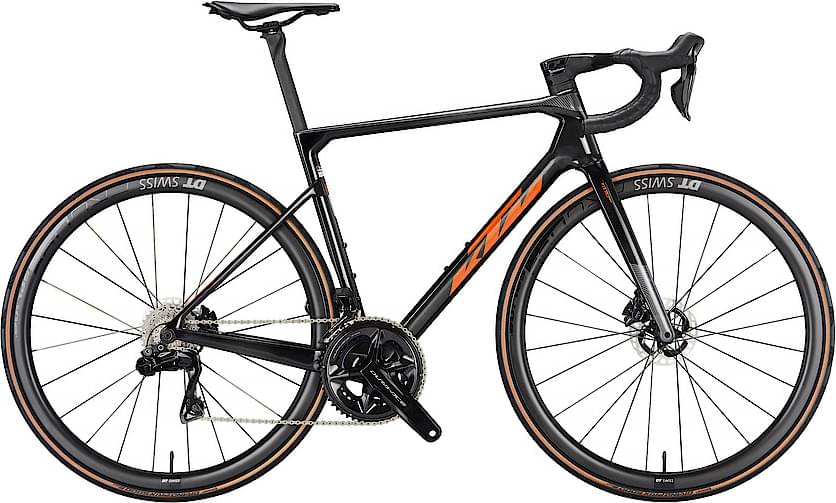

About this model
REVELATOR ALTO EXONIC belongs to the Ktm Revelator model. 20 bikes variations carry this model name so far. You can easily view all of the Ktm Revelator bikes models from 2023, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Aero bikes average price
According to our calculations, the average cost of an Aero bike that is reliable is 4211$. However, you could also get a good Aero bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Aero bikes average weight
Aero bikes have an average weight of 7.34 kg (16.18 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
REVELATOR ALTO EXONIC weighs 6.9 kg (15.21 lbs) and is a bit lighter than the average. In conclusion, the average Aero bike weighs 6.38% more than REVELATOR ALTO EXONIC.
REVELATOR ALTO EXONIC components
Fork material
The fork is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on REVELATOR ALTO EXONIC are the 700c carbon type. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM REVELATOR ALTO EXONIC is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
