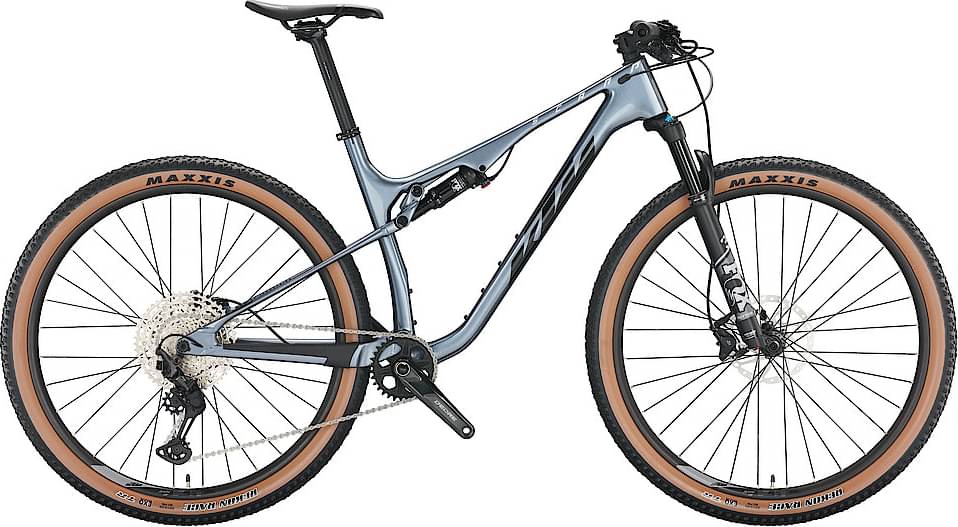

KTM SCARP ELITE 2022
2022 Mountain
Estimate price |
3,784$
Weight | 13.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 95mm -
Fork Fox Rhythm Float 32
-
Groupset XT, Deore -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon-Alloy rear SLL95mm / M-0916
Suspension Fork
FOX 32 Float 29" Rhythm 100mm remote
Rear Shock
FOX Float DPS PerformanceElite remote 190x37.5
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano Deore M6100-12 / 10-51
Crank
Shimano Deore M6120 32T
Chain
Shimano M6100-12
Chain Guide
None
Pedals
None
Wheels
Front Hub
Shimano MT410, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rear Hub
Shimano MT410, 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rims
KTM Line - Shimano MT410B CL 32H 110-15TA / Ryde Rival26 32H 622x26C / DT Champion 2.0 black
Spokes
DT Swiss Champion 2.0
Tires
Maxxis Rekon Race, EXO, TR, 29" x 2.25"
Brakes
Brakes
Shimano M4100 / MT410 2-Piston
Brake Levers
Shimano M4100
Disk Rotors
Shimano RT64 CL 180 / RT64 CL 160
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Team flat 2X 720mm
Grips
KTM Team silicone
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco RND Manganese Rails
Seatpost
KTM Team 30.9/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 693 mm | 714 mm | 735 mm | 756 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 583 mm | 593 mm | 602 mm | 611 mm |
| Reach | 420 mm | 437 mm | 455 mm | 472 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1121 mm | 1142 mm | 1163 mm | 1184 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 777 mm | 777 mm | 777 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SCARP ELITE is a Ktm Scarp model. KTM released 42 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
KTM SCARP 294 2022 is the most economical model, with a starting price of 2388$. KTM SCARP MT EXONIC 2022 on the other hand costs 9767$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
This bike was released in 2022 and its price was 3503$. If we compare this with the average Crosscountry bike cost we notice that the price is 83.88% more expensive.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 13.1 kg (28.88 lbs), KTM bike is a bit heavier than average. In short, the average Crosscountry bike weight is 5.65% lower than this one.
Overview of components
Fork
KTM SCARP ELITE 2022 bike is equipped with the Fox Rhythm Float 32 fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
KTM SCARP ELITE bike has the FOX Float DPS PerformanceElite remote 190×37.5 model installed, and has a travel of 95mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on SCARP ELITE are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
SCARP ELITE comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
