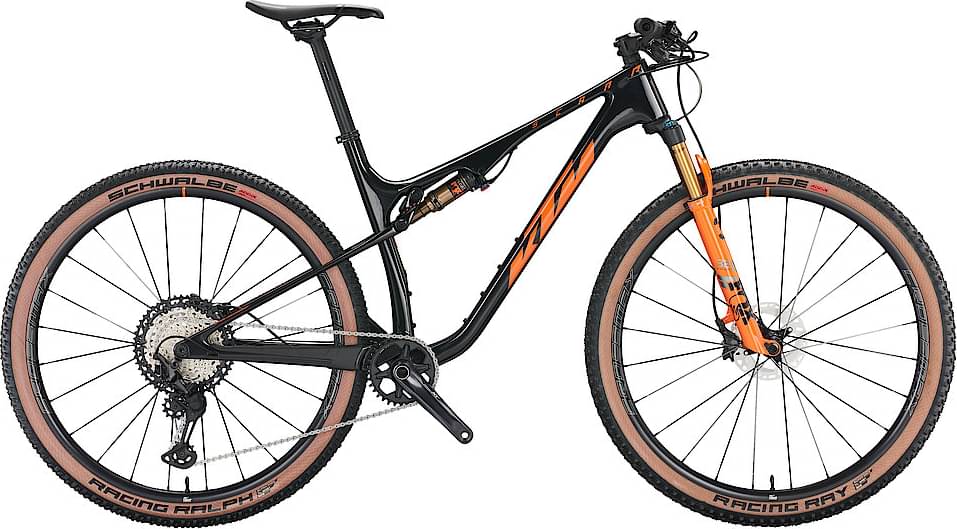

KTM SCARP MASTER 2022
2022 Mountain
Estimate price |
5,734$
Weight | 10.9 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 95mm -
Fork Fox Factory Float 32
-
Groupset XT -
Suspension Full -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon SLL95mm / M-1926
Suspension Fork
FOX 32 Float SC 29" Factory 100mm remote
Rear Shock
FOX Float DPS Factory remote 190x37.5
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore XT M8100-12 / 10-51
Crank
Shimano Deore XT M8120 34T
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano M8100-12
Chain Guide
None
Pedals
None
Wheels
Front Hub
Mavic Crossmax wheelset 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rear Hub
Mavic Crossmax wheelset 15x110mm Boost front, 12x148mm Boost rear with MICRO SPLINE driver
Rims
Mavic Crossmax 29 CL 110/15TA / 622x25TC
Spokes
Mavic Crossmax wheelset
Tires
Front: Schwalbe Racing Ray, Evo, SuperRace, TLE, 29" x 2.25", Rear: Schwalbe Racing Ralph, Evo, SuperRace, TLE, 29" x 2.25"
Brakes
Brakes
Shimano Deore XT M8100 / M8100 2-Piston
Brake Levers
Shimano Deore XT M8100
Disk Rotors
Shimano MT800 CL 160 / MT800 CL 160 freeza
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Team flat 2X 720mm
Grips
KTM Team silicone
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco RND Manganese Rails
Seatpost
KTM Team 30.9/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 693 mm | 714 mm | 735 mm | 756 mm |
| Rake | 46 mm | 46 mm | 46 mm | 46 mm |
| Trail | 102 mm | 102 mm | 102 mm | 102 mm |
| Stack | 583 mm | 593 mm | 602 mm | 611 mm |
| Reach | 420 mm | 437 mm | 455 mm | 472 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68 ° | 68 ° | 68 ° | 68 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1121 mm | 1142 mm | 1163 mm | 1184 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 777 mm | 777 mm | 777 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SCARP MASTER is part of the Ktm Scarp model. KTM released 42 bikes variations of this model so far. Take a sneak peek at all Ktm Scarp bikes models from 2022, by clicking here.
Model range prices
The most economical model, the KTM SCARP 294 2022 has a starting price of 2388$. KTM SCARP MT EXONIC 2022 on the other hand is the most expensive at 9767$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
If you want an acceptable Crosscountry bike you should know that the average price is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 5308$. If we compare this with the average Crosscountry bike cost we notice that the price is 178.64% more expensive.
Crosscountry bikes average weight
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 10.9 kg (24.03 lbs), the SCARP MASTER model is considerably lighter than average. In conclusion, the average Crosscountry bike weighs 13.76% more than SCARP MASTER.
Overview of components
Fork
The Fox Factory Float 32 is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
The shock that’s installed on this bike is FOX Float DPS Factory remote 190×37.5, with a travel distance of 95mm. Rear shocks improve riding comfort and give you greater control over all terrains. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
The SCARP MASTER 2022 bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
SCARP MASTER comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
