Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Performance Float 34
-
Groupset XT -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon SLL115mm UDH / M-2926
Suspension Fork
FOX 34 Float SC 29" Performance 120mm remote 15x110
Rear Shock
FOX Float DPS PerformanceElite remote 190x45
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12
Cassette
Shimano Deore XT M8100-12 / 10-51
Crank
Shimano Deore XT M8120 32T
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano M8100-12
Wheels
Rims
KTM Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss
Brakes
Brakes
Shimano Deore XT M8100 / M8100 2-Piston
Cockpit
Stem
KTM Team MTB 7°
Handlebar
KTM Team flat 2X 740mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco Shortfit Open Fit Wide
Seatpost
KTM Team dropper internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 699 mm | 720 mm | 742 mm | 763 mm |
| Rake | 51 mm | 50 mm | 51 mm | 50 mm |
| Trail | 100 mm | 101 mm | 100 mm | 101 mm |
| Stack | 590 mm | 600 mm | 609 mm | 619 mm |
| Reach | 410 mm | 428 mm | 445 mm | 463 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1128 mm | 1149 mm | 1171 mm | 1192 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 787 mm | 787 mm | 787 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

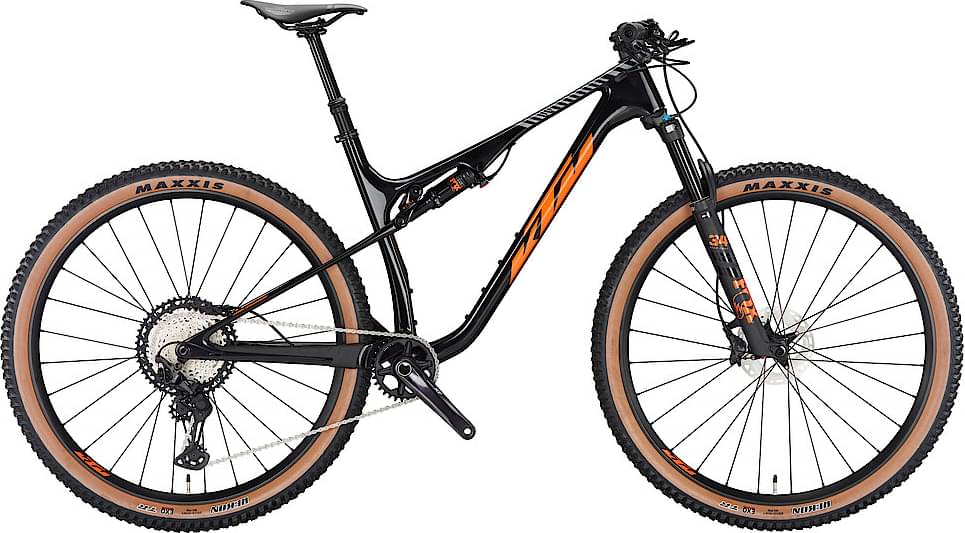

SCARP MT MASTER is part of the Ktm Scarp model. KTM launched 42 bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Trail bikes
The average weight for Trail bikes is 12.98 kg (28.62 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 11.9 kg (26.23 lbs), KTM bike is a bit lighter than average. In short, the average Trail bike weight is 9.08% higher than this one.
Overview of components
Fork
The fork installed on this bike is the Fox Performance Float 34 model. The travel on this model is 120mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
When leaving the production line, the SCARP MT MASTER model has 29″ aluminum wheels. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, these wheels are not ideal for smaller people.
Brakes
When you want to stop the bike in time, the brakes are vital. The SCARP MT MASTER has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
A dropper post is included with the SCARP MT MASTER. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
