Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Factory Float 34
-
Groupset XX, X01 Eagle AXS -
Suspension Full -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Scarp 29" Premium Carbon SLL115mm UDH / M-2926
Suspension Fork
FOX 34 Float SC 29" Factory 120mm remote 15x110
Rear Shock
FOX Float DPS Factory remote 190x45
Drivetrain
Rear Derailleur
SRAM XX Eagle SL T-Type 12speed
Shift Levers
SRAM POD AXS Controller
Cassette
SRAM GX Eagle T-Type XS-1275 / 10-52
Crank
SRAM XX Eagle SL Carbon T-Type 32T
Chain
SRAM GX Eagle T-Type 12s
Wheels
Rims
KTM Prime Carbon Trail 29 CL 110/15TA /622x30TSS made by DT Swiss
Brakes
Brakes
Shimano Deore XT M8100 / M8100 2-Piston
Cockpit
Stem
KTM Prime MTB 6°
Handlebar
KTM Prime Carbon flat 740mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
Selle San Marco Aspide Short Open Fit Narrow
Seatpost
KTM Prime Carbon zero 30.9/400
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.4 mm | 1.37 mm | 1.34 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Front Center | 699 mm | 720 mm | 742 mm | 763 mm |
| Rake | 51 mm | 50 mm | 51 mm | 50 mm |
| Trail | 100 mm | 101 mm | 100 mm | 101 mm |
| Stack | 590 mm | 600 mm | 609 mm | 619 mm |
| Reach | 410 mm | 428 mm | 445 mm | 463 mm |
| Top Tube Length | 580 mm | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1128 mm | 1149 mm | 1171 mm | 1192 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Standover Height | 787 mm | 787 mm | 787 mm | 793 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

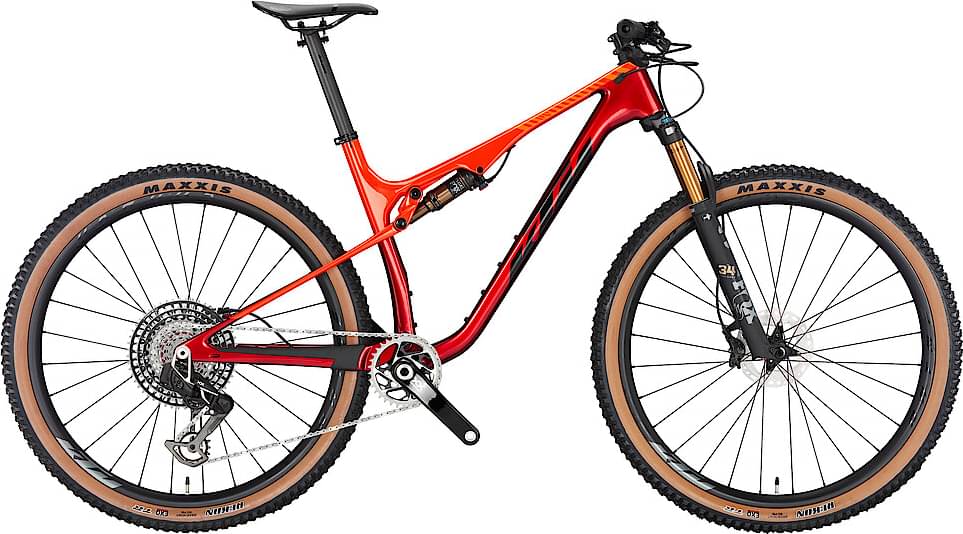

SCARP MT PRIME is a Ktm Scarp model. 42 bikes variations carry this model name so far. Take a sneak peek at all Ktm Scarp bikes models from 2023, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Trail bikes
If you want to purchase a solid Trail bike, it is important to know that the average cost is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Trail bikes
Trail bikes weigh an average of 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 10.8 kg (23.81 lbs), the SCARP MT PRIME model is much lighter than average. In short, the average Trail bike weight is 20.19% higher than this one.
Overview of components
Fork
The SCARP MT PRIME comes factory-installed with the Fox Factory Float 34 fork. This has a travel range of 120mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
The SCARP MT PRIME 2023 bike is equipped with 29″ carbon wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM SCARP MT PRIME has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
