Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Travel Rear 95mm -
Fork Fox Performance Float 32
-
Groupset XTR -
Suspension Full -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
159cm - 170cm
MD
165cm - 177cm
LG
171cm - 184cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 32 Step-Cast Performance, remote lockout
Rear Shock
FOX FLOAT DPS Performance Elite, remote lockout, 190mm x 37.5mm
Drivetrain
Rear Derailleur
Shimano XTR M9100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XTR M9100, 12-speed
Cassette
Shimano XTR M9100, 12-speed, 10-51 tooth
Crank
Shimano XTR M9120
Chain
Shimano XTR M9100, 12-speed
Chain Guide
N/A
Pedals
N/A
Wheels
Front Hub
KTM Team CC wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
KTM Team CC wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
KTM Team CC wheelset, DT Swiss-made rims, tubeless ready
Spokes
KTM Team CC wheelset
Tires
Maxxis Rekon Race, EXO, TR
Brakes
Brakes
Shimano XTR M9100, 2-piston, Shimano MT900 CENTER LOCK 160mm Freeza rotors
Brake Levers
Shimano XTR M9100
Cockpit
Stem
KTM Team MTB, 7° drop
Handlebar
KTM Team Flat, 720mm width
Grips
KTM Team silicone
Headset
KTM Team drop-in
Seat
Saddle
Selle Italia X-LR Manganese
Seatpost
KTM Team, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.36 mm | 1.32 mm | 1.29 mm |
| Bottom Bracket Height | 329 mm | 329 mm | 329 mm | 329 mm |
| Front Center | 693 mm | 714 mm | 735 mm | 756 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 93 mm | 93 mm | 93 mm | 93 mm |
| Stack | 583 mm | 593 mm | 602 mm | 611 mm |
| Reach | 420 mm | 437 mm | 455 mm | 472 mm |
| Top Tube Length | 577 mm | 597 mm | 617 mm | 637 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm |
| Head Tube Angle | 68.5 ° | 68.5 ° | 68.5 ° | 68.5 ° |
| Head Tube Length | 95 mm | 105 mm | 115 mm | 125 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1121 mm | 1142 mm | 1163 mm | 1184 mm |
| Bottom Bracket Drop | 45 mm | 45 mm | 45 mm | 45 mm |
| Standover Height | 777 mm | 777 mm | 777 mm | 783 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 159 cm | 165 cm | 171 cm |
| Rider Max Height | 164 cm | 170 cm | 177 cm | 184 cm |
About this model

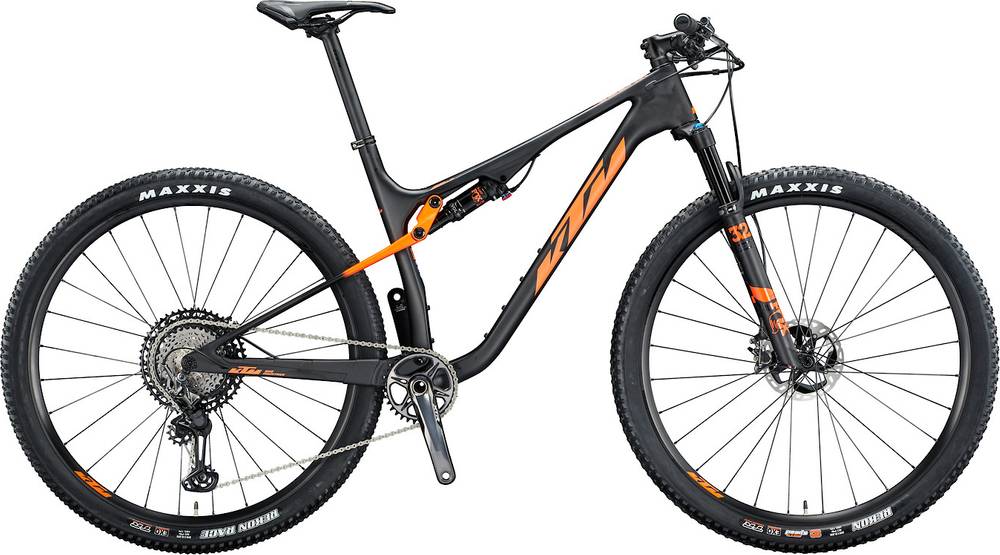

Scarp Prime is a Ktm Scarp model. KTM released 42 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, this doesn’t mean that if you spend less money on a Crosscountry bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
KTM Scarp Prime it’s weighing 10.5 kg (23.15 lbs). At this weight, is much lighter than average. In conclusion, the average Crosscountry bike weighs 18.1% more than Scarp Prime.
Scarp Prime components
Fork
The fork installed on this bike is the Fox Performance Float 32 model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Scarp Prime has a rear shock with a travel of 95mm. The model FOX FLOAT DPS Performance Elite is the one installed in this bike. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on Scarp Prime are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM Scarp Prime has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
KTM Scarp Prime bike has 4 sizes, in the range of 151 cm – 184 cm (4.95 ft – 6.04 ft). In short, it won’t be difficult to find the right one for you.
