Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox 30 Silver TK
-
Groupset XT, SLX -
Suspension Hardtail -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox 30 Silver TK, remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT M8000, 11-speed SHADOW RD+, GS cage
Front Derailleur
Shimano SLX M7020-H, sideswing
Shift Levers
Shimano SLX M7000, 2x11, with display
Cassette
Shimano SLX M7000, 11-speed, 11-42 tooth
Crank
Shimano MT600
Chain
Shimano HG601, 11-speed
Chain Guide
N/A
Pedals
VP-195E alloy
Wheels
Front Hub
Shimano Deore M6000, 32 hole, CENTER LOCK rotor mounts, 100mm quick release front, 135mm quick release rear
Rear Hub
Shimano Deore M6000, 32 hole, CENTER LOCK rotor mounts, 100mm quick release front, 135mm quick release rear
Rims
Ryde Rival23, 32 hole
Spokes
DT Swiss Champion, 2.0, black
Tires
Schwalbe Rapid Rob, K-Guard
Brakes
Brakes
Shimano MT201, 2-piston, Shimano RT30 180mm CENTER LOCK rotors
Brake Levers
Shimano MT201
Cockpit
Stem
KTM Comp, 7° drop
Handlebar
KTM Comp Flat, 720mm width
Grips
KTM Comp, lock-on
Headset
Ritchey OE Logic Zero
Seat
Saddle
KTM Line MTB
Seatpost
KTM Comp, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.44 mm | 1.42 mm | 1.41 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 665 mm | 686 mm | 707 mm | 729 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 609 mm | 623 mm | 638 mm | 656 mm |
| Reach | 417 mm | 433 mm | 449 mm | 464 mm |
| Top Tube Length | 581 mm | 601 mm | 621 mm | 641 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 441 mm | 441 mm | 441 mm | 441 mm |
| Wheelbase | 1097 mm | 1118 mm | 1139 mm | 1161 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 755 mm | 785 mm | 816 mm | 845 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

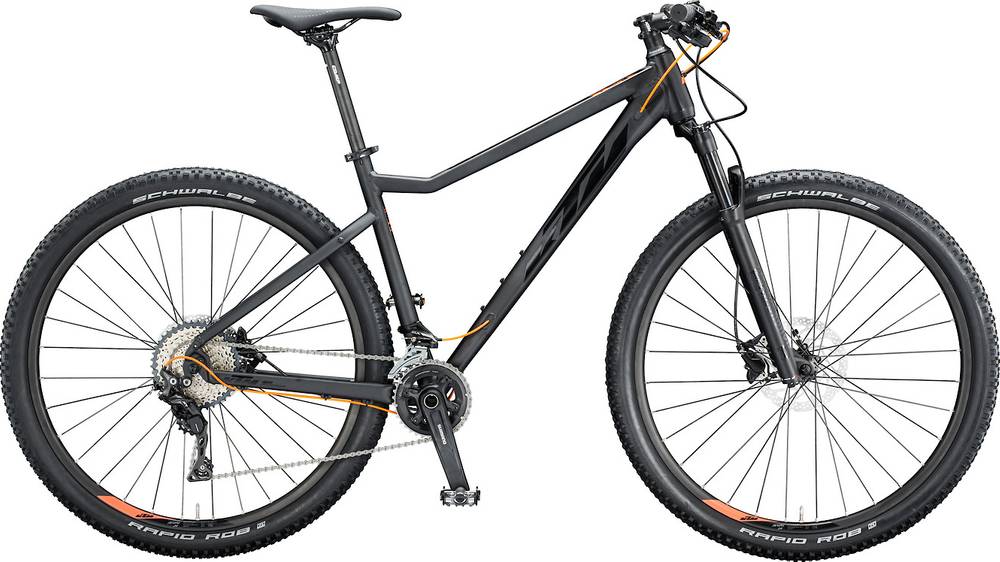

Model Overview
Ultra 1964 Comp is a Ktm Ultra model. 36 bikes variations carry this model name so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Crosscountry bikes average price
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 14.5 kg (31.97 lbs), the Ultra 1964 Comp model is much heavier than average. In other words, this model is 16.94% heavier than the average Crosscountry bike.
Overview of components
Fork
The RockShox 30 Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels
As for the wheels, KTM Ultra 1964 Comp 2020, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Ultra 1964 Comp comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
KTM Ultra 1964 Comp bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
