Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 32 Rhythm, remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano XT M8100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano XT M8100
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano SLX M7100, 12-speed
Chain Guide
N/A
Pedals
VP-195E alloy
Wheels
Front Hub
Shimano WH-MT501-B wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front
Rear Hub
Shimano WH-MT501-B wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front
Rims
Shimano WH-MT501-B wheelset
Spokes
Shimano WH-MT501-B wheelset
Tires
Schwalbe Rapid Rob, K-Guard
Brakes
Brakes
Shimano MT400, 2-piston, Shimano RT54 180mm CENTER LOCK rotors
Brake Levers
Shimano MT400
Cockpit
Stem
KTM Team MTB, 7° drop
Handlebar
KTM Team Flat, 720mm width
Grips
KTM Comp, lock-on
Headset
KTM Team drop-in
Seat
Saddle
Ergon SM10
Seatpost
KTM Team, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm | 1.44 mm | 1.42 mm | 1.41 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 665 mm | 686 mm | 707 mm | 729 mm |
| Rake | 50 mm | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 76 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Stack | 596 mm | 610 mm | 624 mm | 639 mm | 657 mm |
| Reach | 402 mm | 418 mm | 434 mm | 450 mm | 465 mm |
| Top Tube Length | 562 mm | 582 mm | 602 mm | 622 mm | 642 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1077 mm | 1098 mm | 1119 mm | 1140 mm | 1162 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 756 mm | 786 mm | 817 mm | 846 mm |
| Wheels | 29" | 29" | 29" | 29" | 29" |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
Model Overview

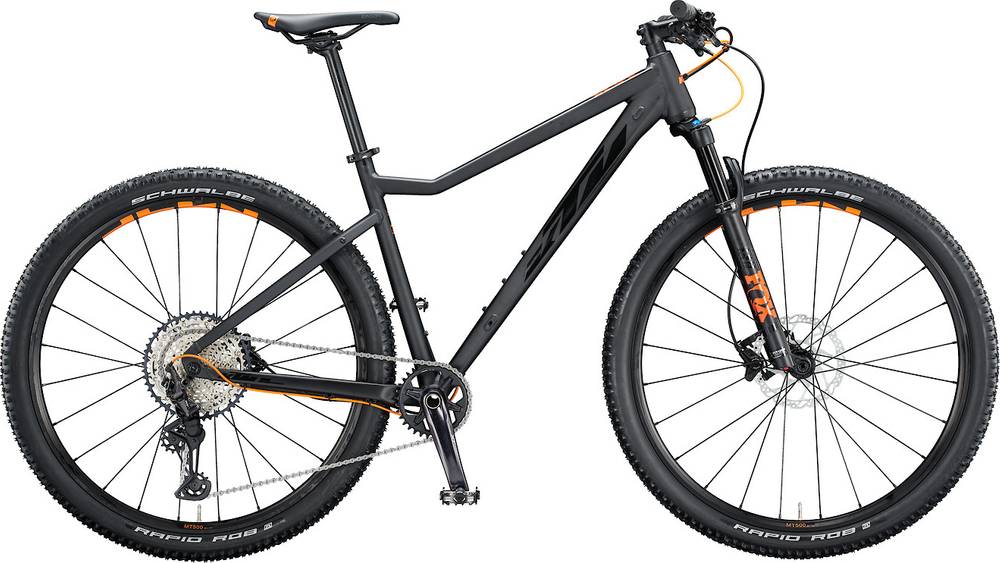

Ultra 1964 Pro is a Ktm Ultra model. There are 36 bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, even though the average price of a Crosscountry bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 13.1 kg (28.88 lbs), the Ultra 1964 Pro model is a bit heavier than average. In conclusion, the average Crosscountry bike weighs 5.65% less than Ultra 1964 Pro.
Overview of components
Fork
KTM Ultra 1964 Pro 2020 bike is equipped with the Fox Rhythm Float 32 fork, and has 100mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels size
The Ultra 1964 Pro 2020 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM Ultra 1964 Pro is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
