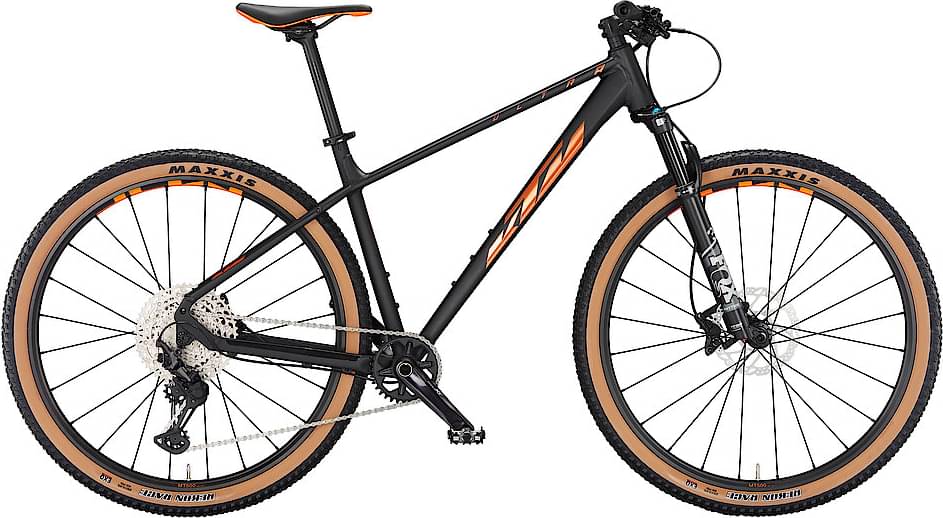

Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Fox Rhythm Float 32
-
Groupset XT -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" Alloy 6061 MTB ULTRA TB / M-1306
Suspension Fork
FOX 32 Float 29" Rhythm 100mm remote 15x110 taper
Drivetrain
Rear Derailleur
Shimano Deore XT M8100-12 SGS shadow+
Shift Levers
Shimano Deore XT M8100-12 I-spec
Cassette
Shimano M6100-12 / 10-51
Crank
Shimano Deore XT M8100 34T
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano M6100-12
Pedals
KTM Team MTB SB
Wheels
Rims
Shimano WH-MT501 24H
Brakes
Brakes
Shimano Deore M6100 / M6100 2-Piston
Cockpit
Stem
KTM Team 7°
Handlebar
KTM Team flat 2X 720mm
Headset
KTM Team drop/in 1.1/8"-1.5"
Seat
Saddle
KTM Comp MTB Sport
Seatpost
KTM Team 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.45 mm | 1.43 mm | 1.44 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 678 mm | 700 | 721 mm | 738 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 97 mm | 97 mm | 97 mm | 96 mm |
| Stack | 610 mm | 625 mm | 638 mm | 657 mm |
| Reach | 415 mm | 431 mm | 447 mm | 456 mm |
| Top Tube Length | 591 mm | 611 mm | 631 mm | 646 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1105 mm | 1127 mm | 1148 mm | 1165 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 765 mm | 795 mm | 827 mm | 856 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
ULTRA 1964 PRO 29 is a Ktm Ultra model. 36 bikes variations carry this model name so far. Take a sneak peek at all Ktm Ultra bikes models from 2023, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Crosscountry bikes
If you want to purchase a solid Crosscountry bike, it is important to know that the average cost is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Crosscountry bikes average weight
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
slightly heavier than average, ULTRA 1964 PRO 29 has a weight of 12.9 kg (28.44 lbs). In conclusion, the average Crosscountry bike weighs 4.03% less than ULTRA 1964 PRO 29.
ULTRA 1964 PRO 29 components
Fork
The ULTRA 1964 PRO 29 comes factory-installed with the Fox Rhythm Float 32 fork. This has a travel range of 100mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Wheels
As for the wheels, KTM ULTRA 1964 PRO 29 2023, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ULTRA 1964 PRO 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
