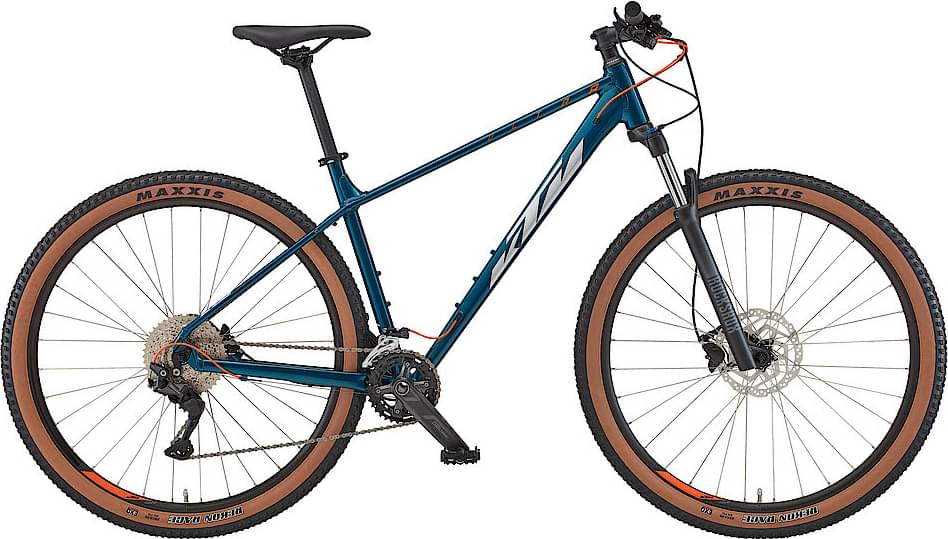

KTM ULTRA FLITE 29 2022
2022 Mountain
Estimate price |
1,203$
Weight | 14.3 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame aluminium -
Wheels 29" -
Fork RockShox Judy -
Groupset Deore -
Suspension Hardtail -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" Alloy 6061 MTB M1110
Suspension Fork
RS FS JUDY TK B1 Coil 100 (chrome stanchions)
Drivetrain
Rear Derailleur
Shimano Deore M5120-SGS shadow+
Shift Levers
Shimano Deore M5100
Cassette
Shimano Deore M4100-10 / 11-42T
Crank
Shimano Deore M4100-2 / 36-26T w/BB
Chain
Shimano Deore HG54
Wheels
Rims
KTM Line - Shimano HB-MT200 CL 32H 100 QR / KTM 28" Sport 32H / Pillar 2.0 INOX silver
Brakes
Brakes
Shimano MT200
Disk Rotors
Shimano Altus RT10 CL 180 / Altus RT10 CL 160
Cockpit
Stem
KTM COMP 7°
Handlebar
KTM COMP Riser 12 720-740mm
Headset
RITCHEY Zero Logic PRESS FIT 1-1/8"
Seat
Saddle
KTM LINE SPORT
Seatpost
KTM COMP 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | MD | LG | XL | XXL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.47 mm | 1.45 mm | 1.43 mm | 1.44 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm | 304 mm |
| Front Center | 678 mm | 700 | 721 mm | 738 mm |
| Rake | 44 mm | 44 mm | 44 mm | 45 mm |
| Trail | 97 mm | 97 mm | 97 mm | 96 mm |
| Stack | 610 mm | 625 mm | 638 mm | 657 mm |
| Reach | 415 mm | 431 mm | 447 mm | 456 mm |
| Top Tube Length | 591 mm | 611 mm | 631 mm | 646 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 430 mm | 480 mm | 530 mm | 570 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm | 160 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1105 mm | 1127 mm | 1148 mm | 1165 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Standover Height | 765 mm | 795 mm | 827 mm | 856 mm |
| Wheels | 29" | 29" | 29" | 29" |
Model Overview
ULTRA FLITE 29 completes the Ktm Ultra model. KTM released 36 bikes variations of this model so far. Take a sneak peek at all Ktm Ultra bikes models from 2022, by clicking here.
Model range prices
The most economical model, the KTM ULTRA GLORIETTE 29 2022 has a starting price of 1008$. KTM ULTRA 1964 COMP 29 2022 on the other hand is the most expensive at 1804$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our calculations, the average cost of a Crosscountry bike that is reliable is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 1114$. Comparing the average cost of a Crosscountry bike to this one, you will see that ULTRA FLITE 29 price is 71.01% lower.
Crosscountry bikes average weight
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 14.3 kg (31.53 lbs), KTM bike is much heavier than average. In other words, this model is 15.32% heavier than the average Crosscountry bike.
Overview of components
Fork
This bike has the RockShox Judy fork installed. The fork’s travel is mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
The wheels on ULTRA FLITE 29 are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The ULTRA FLITE 29 comes with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
