Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Suntour RAIDON
-
Groupset Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
29" Alloy 6061 MTB / M-1110
Suspension Fork
Suntour Raidon XC Air 29" RLR 100mm
Drivetrain
Rear Derailleur
Shimano Deore M6100-12 SGS shadow+
Shift Levers
Shimano Deore M6100-12
Cassette
Shimano M6100-12 / 10-51
Crank
Shimano Deore MT510 34T
Chain
Shimano M6100-12
Pedals
KTM Comp MTB BF
Wheels
Rims
KTM Line - Shimano HB-MT200 CL 32H 100 QR / KTM 28" Sport 32H; 622x22 / Richman 2.0 INOX, black
Brakes
Brakes
Shimano MT201 / MT200 2-Piston
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp Flat Top 700mm
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Comp MTB Sport
Seatpost
KTM Comp 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.47 mm | 1.45 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 657 mm | 678 mm | 700 |
| Rake | 44 mm | 44 mm | 44 mm |
| Trail | 97 mm | 97 mm | 97 mm |
| Stack | 602 mm | 611 mm | 626 mm |
| Reach | 398 mm | 416 mm | 432 mm |
| Top Tube Length | 572 mm | 592 mm | 612 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 69 ° | 69 ° | 69 ° |
| Head Tube Length | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1085 mm | 1106 mm | 1128 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 759 mm | 766 mm | 796 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
Model Overview

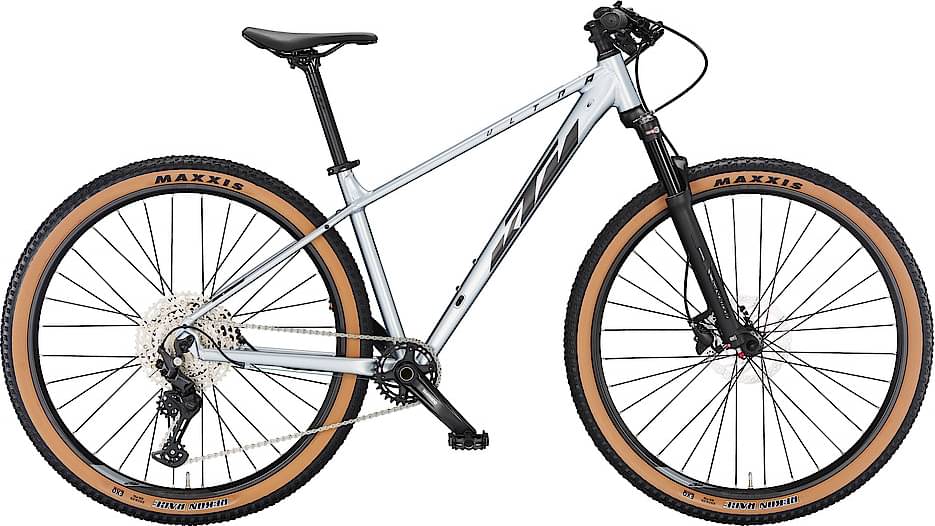

ULTRA GLORIOUS 29 belongs to the Ktm Ultra model. KTM launched 36 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Crosscountry bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
If we make a quick analysis of the average weight of a Crosscountry bike, we get 12.4 kg (27.34 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
a bit heavier than average, ULTRA GLORIOUS 29 has a weight of 13.6 kg (29.98 lbs). In conclusion, the average Crosscountry bike weighs 9.68% less than ULTRA GLORIOUS 29.
Overview of components
Fork
This bike has the Suntour RAIDON fork installed. The fork’s travel is 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels
When leaving the production line, the ULTRA GLORIOUS 29 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. KTM ULTRA GLORIOUS 29 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
KTM ULTRA GLORIOUS 29 bike has 3 sizes, in the range of 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
