Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset SLX, Shimano -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
151cm - 164cm
SM
160cm - 172cm
MD
166cm - 179cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Judy Silver TK, remote lockout
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano SLX M7100, 12-speed SHADOW RD+, SGS cage
Front Derailleur
N/A
Shift Levers
Shimano SLX M7100, 12-speed
Cassette
Shimano SLX M7100, 12-speed, 10-51 tooth
Crank
Shimano MT610
Chain
Shimano SLX M7100, 12-speed
Chain Guide
N/A
Pedals
VP-195E alloy
Wheels
Front Hub
Shimano WH-MT501-B wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rear Hub
Shimano WH-MT501-B wheelset, CENTER LOCK rotor mounts, 15x110mm Boost front, 12x148mm Boost rear
Rims
Shimano WH-MT501-B wheelset
Spokes
Shimano WH-MT501-B wheelset
Tires
Schwalbe Rapid Rob, K-Guard
Brakes
Brakes
Shimano MT201, 2-piston, Shimano RT30 180mm CENTER LOCK rotors
Brake Levers
Shimano MT201
Cockpit
Stem
KTM Comp, 7° drop
Handlebar
KTM Comp Flat, 720mm width
Grips
KTM Comp Ergo, lock-on
Headset
KTM Team drop-in
Seat
Saddle
Selle Italia X3 XP Lady
Seatpost
KTM Comp, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD |
|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.46 mm | 1.44 mm |
| Bottom Bracket Height | 304 mm | 304 mm | 304 mm |
| Front Center | 644 mm | 665 mm | 686 mm |
| Rake | 50 mm | 51 mm | 51 mm |
| Trail | 76 mm | 75 mm | 75 mm |
| Stack | 596 mm | 610 mm | 624 mm |
| Reach | 402 mm | 418 mm | 434 mm |
| Top Tube Length | 562 mm | 582 mm | 602 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 430 mm | 480 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 95 mm | 110 mm | 125 mm |
| Chainstay Length | 442 mm | 442 mm | 442 mm |
| Wheelbase | 1077 mm | 1098 mm | 1119 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm |
| Standover Height | 730 mm | 756 mm | 786 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 151 cm | 160 cm | 166 cm |
| Rider Max Height | 164 cm | 172 cm | 179 cm |
About this model

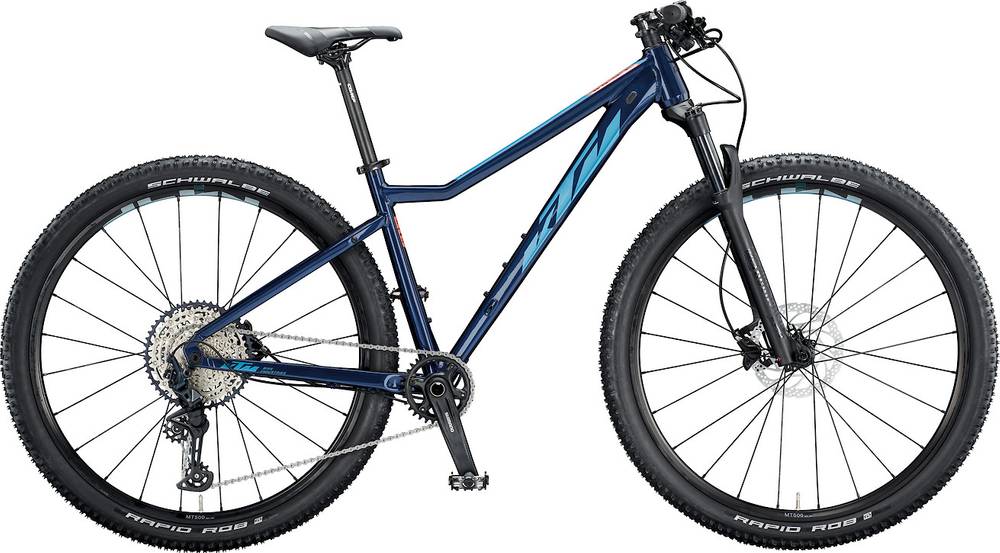

Ultra Glory belongs to the Ktm Ultra model. KTM released 36 bikes variations of this model so far. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Crosscountry bikes
The average weight for Crosscountry bikes is 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 13.6 kg (29.98 lbs), the Ultra Glory model is a bit heavier than average. To sum up, it’s 9.68% heavier than the average weight of Crosscountry bikes.
Overview of components
Fork
The Ultra Glory comes factory-installed with the RockShox Judy Silver TK fork. This has a travel range of 100mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Wheels size
When it comes to wheels, the Ultra Glory bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Nothing is more important on a bike than its ability to brake properly. KTM Ultra Glory is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
KTM Ultra Glory bike has 3 sizes, in the range of 151 cm – 179 cm (4.95 ft – 5.87 ft). In short, you can easily find one that suits you.
