Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Rival, SRAM -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
28" Alloy 6061 GRAVEL / R-2070
Suspension Fork
rigid alloy gravel fork
Drivetrain
Rear Derailleur
SRAM Rival1 11speed
Shift Levers
SRAM Rival22-11
Cassette
SRAM CS-PG-1130 / 11-42T
Crank
SRAM S650 Eagle 38T
Chain
SRAM PC-1110
Wheels
Rims
KTM Line - Shimano HB-TX505 CL 32H 100 QR / KTM 28" Sport 32H; 622x20 / Pillar 2.0 INOX, black
Brakes
Brakes
Tektro MD-C400
Cockpit
Stem
KTM Comp 7°
Handlebar
KTM Comp Race Bar
Headset
Ritchey OE Zero Logic 1.1/8"
Seat
Saddle
KTM Line Sport
Seatpost
KTM Comp 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.36 mm | 1.39 mm | 1.36 mm | 1.36 mm |
| Bottom Bracket Height | 277 mm | 277 mm | 277 mm | 279 mm | 281 mm |
| Front Center | 620 mm | 626 mm | 633 mm | 647 mm | 663 mm |
| Rake | 42 mm | 42 mm | 42 mm | 42 mm | 42 mm |
| Trail | 82 mm | 76 mm | 69 mm | 69 mm | 69 mm |
| Stack | 546.6 mm | 564.5 mm | 587.1 mm | 594.6 mm | 606.9 mm |
| Reach | 404.8 mm | 414.9 mm | 423.6 mm | 435.7 mm | 446.5 mm |
| Top Tube Length | 545 mm | 565 mm | 585 mm | 605 mm | 625 mm |
| Seat Tube Angle | 75.5 ° | 75 ° | 74.5 ° | 74 ° | 73.5 ° |
| Seat Tube Length | 490 mm | 520 mm | 550 mm | 570 mm | 590 mm |
| Head Tube Angle | 70 ° | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 95 mm | 110 mm | 130 mm | 140 mm | 155 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1054 mm | 1061 mm | 1067 mm | 1083 mm | 1098 mm |
| Bottom Bracket Drop | 72 mm | 72 mm | 72 mm | 70 mm | 68 mm |
| Standover Height | 765 mm | 788 mm | 813 mm | 827 mm | 844 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

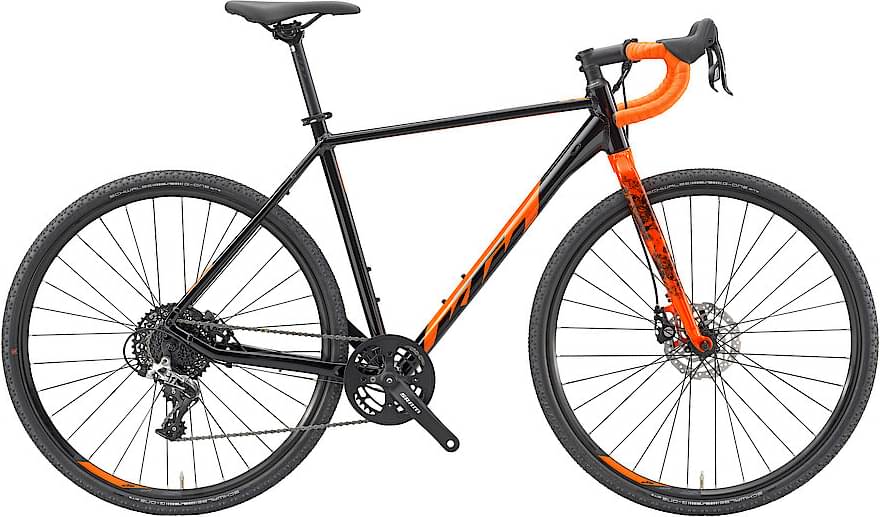

Model Overview
X-STRADA 30 completes the Ktm X Strada model. KTM released 26 bikes variations of this model so far. You can easily view all of the Ktm X Strada bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
X-STRADA 30 weighs 14.5 kg (31.97 lbs) and is much heavier than the average. To sum up, it’s 78.35% heavier than the average weight of Gravel bikes.
X-STRADA 30 components
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels size
The X-STRADA 30 2023 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The X-STRADA 30 has Mechanical Disc brakes. They deliver good performance and cost less than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
This bike is available in 5 sizes. They vary from 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, it won’t take much to find one that’s right for you.
