Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 200mm -
Travel Rear 210mm -
Fork RockShox BoXXer
-
Groupset X01 -
Suspension Full -
Drivetrain 1 × 7 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Boxxer World Cup Solo Air
Rear Shock
RockShox Vivid R2C, coil, 240mm x 76mm
Drivetrain
Rear Derailleur
SRAM X01 DH Type 2.1, short cage, 7-speed
Front Derailleur
N/A
Shift Levers
SRAM X0 DH, 7-speed
Cassette
SRAM XG-795, 10-24 tooth, 7-speed
Crank
SRAM X01 DH Carbon, 165mm length
Bottom Bracket
SRAM DH 104.5/107, pressfit
Chain Guide
e*thirteen LG1
Pedals
N/A
Wheels
Front Hub
Front: Formula DHL92, 20mm x 110mm, Rear: Formula DHG-1501, 12mm x 150mm
Rear Hub
Front: Formula DHL92, 20mm x 110mm, Rear: Formula DHG-1501, 12mm x 150mm
Rims
e*thirteen LG1+ Exalite 30C
Spokes
32 count front and rear
Tires
Maxxis High Roller II 2.4" 3C Dual Ply
Brakes
Brakes
SRAM Code RSC
Brake Levers
SRAM Code RSC
Cockpit
Stem
Race Face Atlas, direct mount, 50mm length, 35mm diameter
Handlebar
Race Face Atlas 35, 20mm rise, 800mm width
Headset
FSA Orbit No.57SC, 1.5Z SC, zero-stack
Seat
Saddle
SDG Circuit DH
Seatpost
Race Face Chester, 325mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.466 mm | 1.399 mm | 1.337 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm |
| Stack | 607 mm | 607 mm | 607 mm |
| Reach | 414 mm | 434 mm | 454 mm |
| Top Tube Length | 600 mm | 620 mm | 640 mm |
| Seat Tube Angle | 73 ° | 73 ° | 72.5 ° |
| Head Tube Angle | 63.7 ° | 63.7 ° | 63.7 ° |
| Head Tube Length | 115 mm | 115 mm | 115 mm |
| Chainstay Length | 445 mm | 445 mm | 445 mm |
| Bottom Bracket Drop | 5 mm | 5 mm | 5 mm |
| Standover Height | 400 mm | 400 mm | 400 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

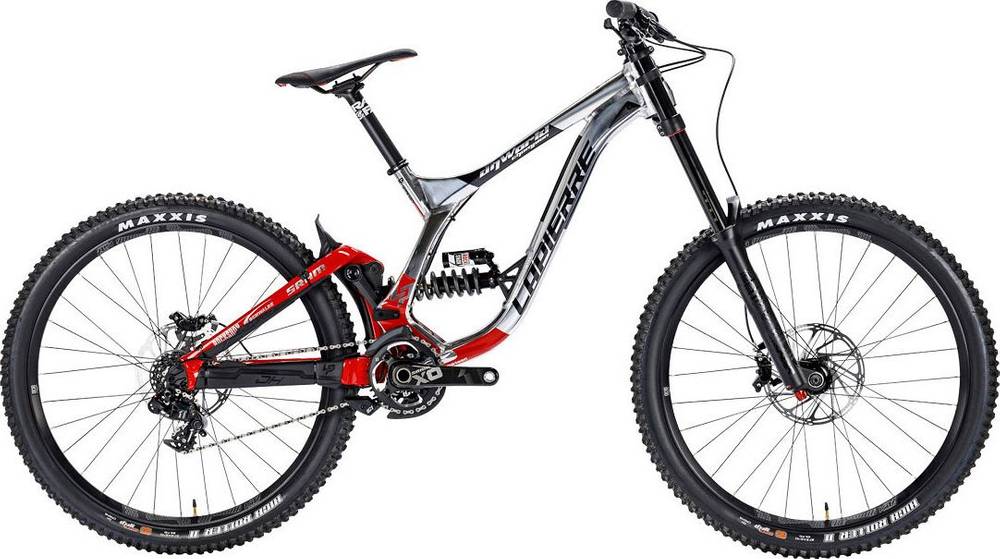

DH WCR Ultimate is a Lapierre Dh model. Lapierre launched 2 bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Downhill bikes average price
According to our math, the average price for a trustworthy Downhill bike is 3391$. However, even though the average price of a Downhill bike is lower, you might still be able to get a top-quality bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Downhill bikes
On a deeper look, we notice that the average weight of a Downhill bike is 15.89 kg (35.03 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 17.7 kg (39.02 lbs), the DH WCR Ultimate model is considerably heavier than average. In conclusion, the average Downhill bike weighs 11.39% less than DH WCR Ultimate.
Overview of components
Fork
Lapierre DH WCR Ultimate 2018 bike is equipped with the RockShox BoXXer fork, and has 200mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The DH WCR Ultimate has a rear shock with a travel of 210mm. The model RockShox Vivid R2C is the one installed in this bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
The DH WCR Ultimate 2018 bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Lapierre DH WCR Ultimate has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
