Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset NX -
Suspension Full -
Motor Yamaha 250W mid-drive -
Battery Yamaha Lithium-ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour Aion 35 LO R DS, Boost
Rear Shock
RockShox Monarch R DebonAir High Volume, 190mm x 51mm
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-42 tooth, 11-speed
Crank
Lapierre Overvolt Yamaha, 170mm length
Chain
11-speed
Pedals
None included
Wheels
Front Hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148s, Boost 12mm x 148mm, Shimano driver
Rear Hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148s, Boost 12mm x 148mm, Shimano driver
Rims
Lapierre eAM+, 32 hole
Tires
Front: Maxxis Minion DHF, 2.8" EXO TR 60 TPI foldable, Rear: Maxxis Rekon+, 2.8" EXO TR 60 TPI foldable
Brakes
Brakes
Shimano M365 with 203mm rotors
Brake Levers
Shimano M365
Cockpit
Stem
Lapierre Kalloy AS-M05, 55mm length, 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seat
Saddle
Lapierre by Velo
Seatpost
Lapierre SP37.1, 350mm length
Motor & Battery
Motor
Yamaha PW System, 250W
Battery
Yamaha Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.5 mm | 1.44 mm | 1.39 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm | 360 mm |
| Stack | 604 mm | 614 mm | 623 mm | 632 mm |
| Reach | 383 mm | 410 mm | 432 mm | 454 mm |
| Top Tube Length | 568 mm | 598 mm | 623 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 415 mm | 440 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm | -5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

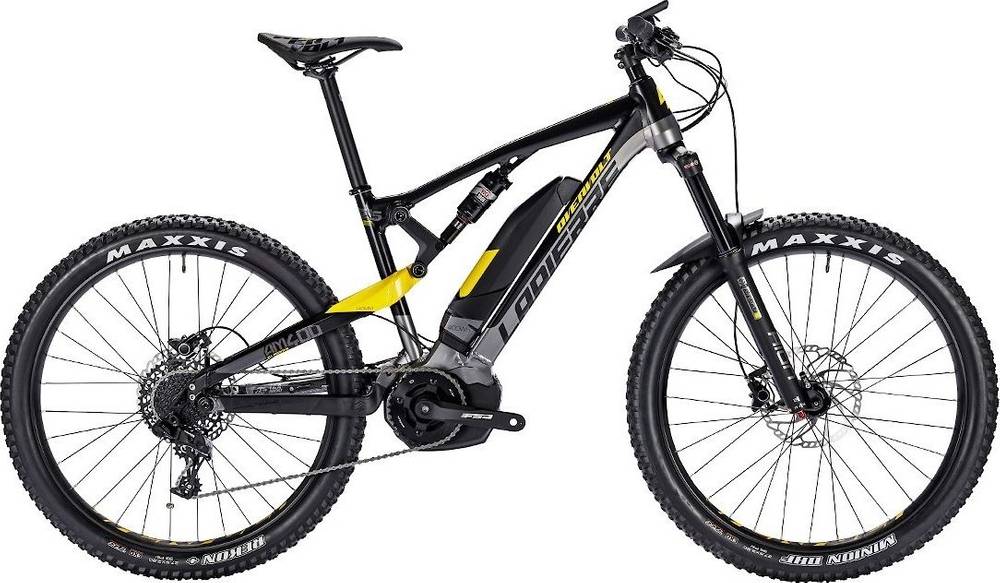

Overvolt AM 400+ Yamaha is a Lapierre E Overvolt model. 146 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Lapierre OVERVOLT TREKKING 100 2018 is the most economical model, with a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand costs 6901$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
This e-bike has the SunTour AION fork installed. The fork’s travel is 150mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
Lapierre Overvolt AM 400+ Yamaha e-bike has the RockShox Monarch R DebonAir High Volume model installed, and has a travel of 140mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
When it comes to wheels, the Overvolt AM 400+ Yamaha e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
