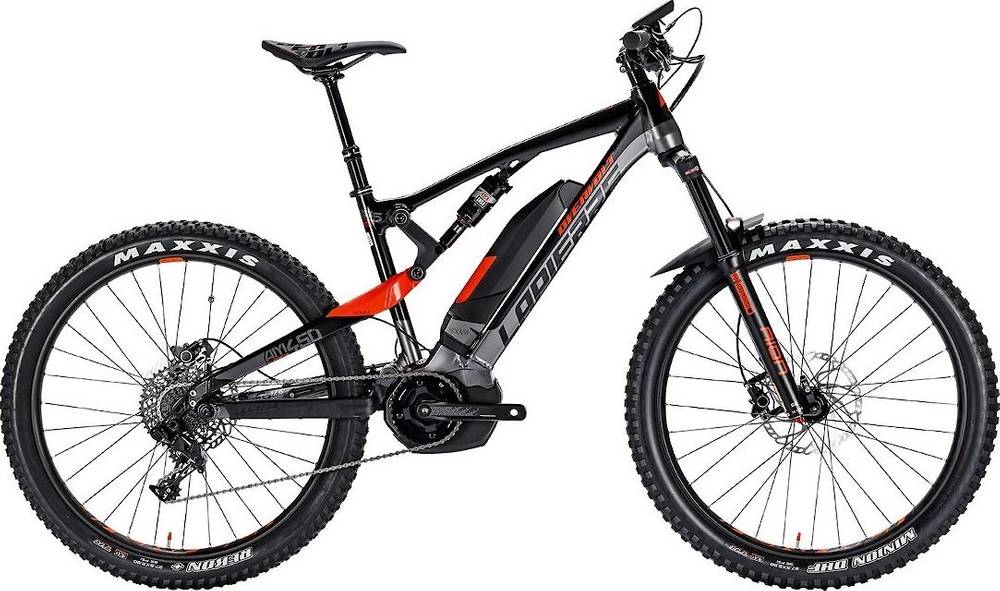

Lapierre Overvolt AM 450+ Yamaha 2018
2018 E-bike
Weight | 24.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset NX -
Suspension Full -
Motor Yamaha 250W mid-drive -
Battery Yamaha Lithion-ion -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour Aion 35 LO R DS, Boost
Rear Shock
RockShox Monarch R DebonAir High Volume, 190mm x 51mm
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
SRAM PG-1130, 11-42 tooth, 11-speed
Crank
Lapierre Overvolt Yamaha, 170mm length
Chain
11-speed
Pedals
None included
Wheels
Front Hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148s, Boost 12mm x 148mm, Shimano driver
Rear Hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148s, Boost 12mm x 148mm, Shimano driver
Rims
Lapierre eAM+, 32 hole
Tires
Front: Maxxis Minion DHF, 2.8" EXO TR 60 TPI foldable, Rear: Maxxis Rekon+, 2.8" EXO TR 60 TPI foldable
Brakes
Brakes
Shimano M365 with 203mm rotors
Brake Levers
Shimano M365
Cockpit
Stem
Lapierre Kalloy AS-M05, 55mm length, 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seat
Saddle
Lapierre by Velo
Seatpost
Lapierre JD YSP-12L Dropper, 100mm (S), 125mm (M-XL), 350mm length
Motor & Battery
Motor
Yamaha PW System, 250W
Battery
Yamaha Lithion-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.58 mm | 1.5 mm | 1.44 mm | 1.39 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm | 360 mm |
| Stack | 604 mm | 614 mm | 623 mm | 632 mm |
| Reach | 383 mm | 410 mm | 432 mm | 454 mm |
| Top Tube Length | 568 mm | 598 mm | 623 mm | 648 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 415 mm | 440 mm | 470 mm | 510 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm | 463 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm | -5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Overvolt AM 450+ Yamaha belongs to the Lapierre E Overvolt model. Lapierre launched 146 e-bikes of this model so far. You can easily view all of the Lapierre E Overvolt e-bikes models from 2018, here.
Model range prices
Lapierre OVERVOLT TREKKING 100 2018 is the most economical model, with a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand costs 6901$, and is the most expensive model.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Trail e-bikes
On a deeper look, we notice that the average weight of a Trail e-bike is 23.7 kg (52.25 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Weighing 24.2 kg (53.35 lbs), the Overvolt AM 450+ Yamaha model is slightly heavier than average. In other words, this model is 2.11% heavier than the average Trail e-bike.
Overvolt AM 450+ Yamaha components
Fork
This e-bike has the SunTour AION fork installed. The fork’s travel is 150mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Lapierre Overvolt AM 450+ Yamaha e-bike has the RockShox Monarch R DebonAir High Volume model installed, and has a travel of 140mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the Overvolt AM 450+ Yamaha model has 27.5″ aluminum wheels. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Overvolt AM 450+ Yamaha has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
