Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork SunTour AION
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Integrated -
Drivetrain 1 × 10 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
Suntour Aion 35 LO R DS, Boost
Rear Shock
RockShox Deluxe R DebonAir, Trunnion mount, 185mm x 52.5mm
Drivetrain
Rear Derailleur
Shimano Deore M6000 GS
Front Derailleur
N/A
Shift Levers
Shimano Deore M6000, 10-speed
Cassette
Shimano HG500, 11-42 tooth, 10-speed
Crank
Shimano E8000, 170mm length
Chain
10-speed
Chain Guide
e*thirteen TRS
Pedals
None included
Wheels
Front Hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Rear Hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Rims
Lapierre Tryp 30, 32 hole
Tires
Maxxis Ardent, 2.4" EXO TR 60 TPI Foldable
Brakes
Brakes
Shimano M425
Brake Levers
Shimano M425
Cockpit
Stem
Lapierre ASM05 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 15mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seat
Saddle
Lapierre by Velo
Seatpost
Lapierre YSP15l Dropper, 80mm drop (S), 100mm drop (M,L), 125mm drop (XL)
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 325 mm | 330 mm | 330 mm | 330 mm |
| Stack | 635 mm | 630 mm | 630 mm | 639 mm |
| Reach | 425 mm | 441 mm | 461 mm | 484 mm |
| Top Tube Length | 582 mm | 602 mm | 622 mm | 647 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Bottom Bracket Drop | 30 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

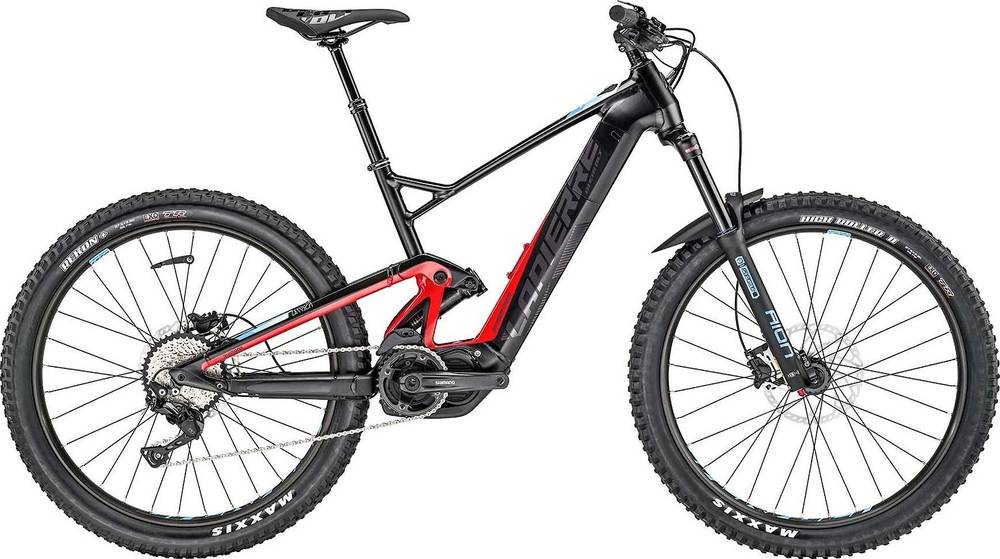

Overvolt AM 529i completes the Lapierre E Overvolt model. Lapierre released 146 e-bikes variations of this model so far. Take a sneak peek at all Lapierre E Overvolt e-bikes models from 2018, by clicking here.
Model range prices
Lapierre OVERVOLT TREKKING 100 2018 is the most economical model, with a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand costs 6901$, and is the most expensive model.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Overview of components
Fork
The Overvolt AM 529i comes factory-installed with the SunTour AION fork. This has a travel range of 140mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Lapierre Overvolt AM 529i e-bike has the RockShox Deluxe R DebonAir model installed, and has a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When it comes to wheels, the Overvolt AM 529i e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overvolt AM 529i comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, with hydraulic disk brakes, you have the ultimate braking power!
Sizes
Overvolt AM 529i comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
