Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset NX, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float Performance Series, Boost
Rear Shock
FOX Float DPX2 Performance Series, 3-position lever, 185mm x 55mm, Trunnion mount
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
Sunrace MS8, 11-46 tooth, 11-speed
Crank
Shimano E8000, 170mm length
Chain
11-speed
Chain Guide
e*thirteen TRS
Pedals
None included
Wheels
Front Hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Rear Hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Rims
Lapierre DBX40, 32 hole
Tires
Front: Maxxis High Roller II, 2.8" 3c MaxxTerra, Rear: Maxxis Rekon+ 2.8", EXO TR foldable 60tpi
Brakes
Brakes
Shimano MT500
Brake Levers
Shimano MT500
Cockpit
Stem
Lapierre ASM05 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 15mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57)
Seat
Saddle
Lapierre by Velo
Seatpost
Lapierre YSP15l Dropper, 80mm drop (S), 100mm drop (M,L), 125mm drop (XL)
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.38 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 370 mm | 365 mm | 365 mm | 365 mm |
| Stack | 612 mm | 619 mm | 628 mm | 637 mm |
| Reach | 436 mm | 449 mm | 466 mm | 489 mm |
| Top Tube Length | 592 mm | 607 mm | 627 mm | 652 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Bottom Bracket Drop | -15 mm | -10 mm | -10 mm | -10 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

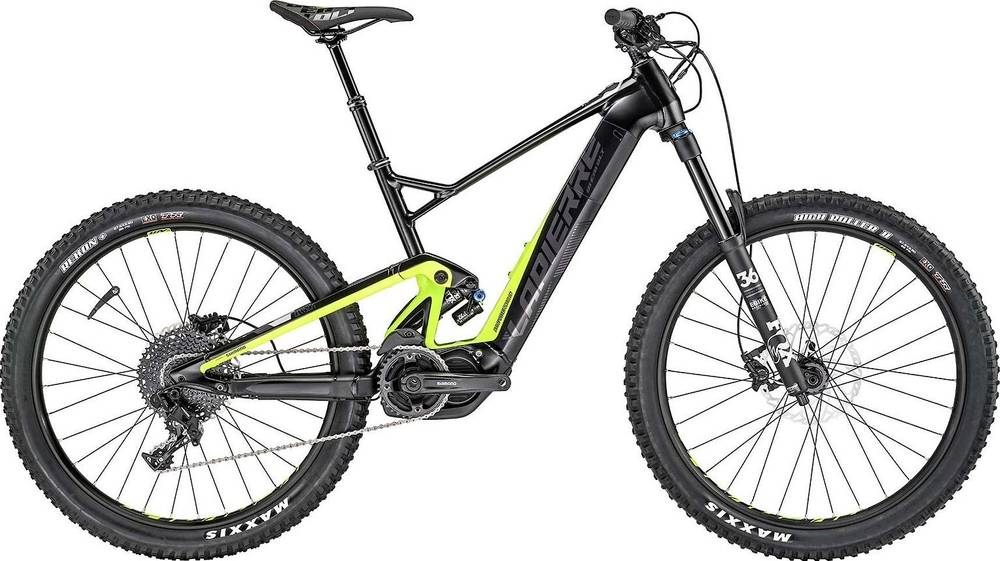

Overvolt AM 627i completes the Lapierre E Overvolt model. Lapierre released 146 e-bikes variations of this model so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
The most economical model, the Lapierre OVERVOLT TREKKING 100 2018 has a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand is the most expensive at 6901$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overvolt AM 627i components
Fork
The fork installed on this bike is the Fox Performance Float 36 model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Lapierre Overvolt AM 627i e-bike has the FOX Float DPX2 Performance Series model installed, and has a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When leaving the production line, the Overvolt AM 627i model has 27.5″ aluminum wheels. The 27.5″ wheels are a great choice for smaller riders. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Lapierre Overvolt AM 627i includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
