Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset NX, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Integrated -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance Series, Boost, e-bike specific
Rear Shock
FOX Float DPS LV EVOL, Performance Series, 185mm x 52.5mm
Drivetrain
Rear Derailleur
SRAM NX
Front Derailleur
N/A
Shift Levers
SRAM NX, 11-speed
Cassette
Sunrace MS8, 11-46 tooth, 11-speed
Crank
Shimano E8000, 170mm length
Chain
11-speed
Chain Guide
e*thirteen TRS
Pedals
None included
Wheels
Front Hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Rear Hub
Front: Formula DC711, Boost 15mm x 110mm, Rear: Formula DHT-1248, Boost 12mm x 148mm, Shimano driver
Rims
Lapierre Tryp 30, 32 hole
Tires
Schwalbe Nobby Nic, 2.6" Addix Speed Grip, folding, Snake Skin, Tubeless Easy
Brakes
Brakes
Shimano MT500
Brake Levers
Shimano MT500
Cockpit
Stem
Lapierre ASM05 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57)
Seat
Saddle
Lapierre by Velo
Seatpost
Lapierre YSP15l Dropper, 80mm drop (S), 100mm drop (M,L), 125mm drop (XL)
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 325 mm | 330 mm | 330 mm | 330 mm |
| Stack | 635 mm | 630 mm | 630 mm | 639 mm |
| Reach | 425 mm | 441 mm | 461 mm | 484 mm |
| Top Tube Length | 582 mm | 602 mm | 622 mm | 647 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Bottom Bracket Drop | 30 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

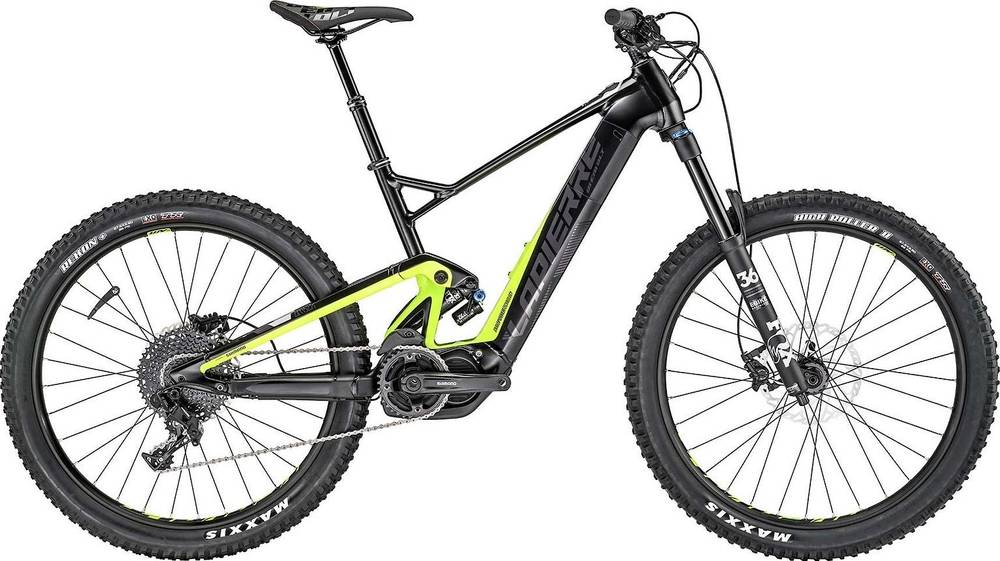

Overvolt AM 629i completes the Lapierre E Overvolt model. Lapierre launched 146 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Lapierre OVERVOLT TREKKING 100 2018 is the most economical model, with a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand costs 6901$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Trail e-bikes average price
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Trail e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overview of components
Fork
Lapierre Overvolt AM 629i 2018 e-bike is equipped with the Fox Performance Float 34 fork, and has 140mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
The Overvolt AM 629i has a rear shock with a travel of 140mm. The model FOX Float DPS LV EVOL is the one installed in this e-bike. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Lapierre Overvolt AM 629i 2018, has a 27.5″ aluminum model. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The Overvolt AM 629i has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
Lapierre Overvolt AM 629i includes a dropper post. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
