Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT Di2, SLX -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Integrated -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float Performance Series, Boost
Rear Shock
FOX Float DPX2 Performance Series, 3-position lever, 185mm x 55mm, Trunnion mount
Drivetrain
Rear Derailleur
Shimano XT Di2 GS Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano SLX, 11-speed
Cassette
Shimano SLX, 11-46 tooth, 11-speed
Crank
Shimano E8000, 170mm length
Chain
11-speed
Chain Guide
e*thirteen TRS
Pedals
None included
Wheels
Front Hub
Lapierre eAM+, Boost front and rear
Rear Hub
Lapierre eAM+, Boost front and rear
Rims
Lapierre eAM+
Spokes
J-bend
Tires
Front: Maxxis High Roller II, 2.8" 3c MaxxTerra, Rear: Maxxis Rekon+, 2.8" EXO TR foldable 60tpi
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Cockpit
Stem
Lapierre 6061DB CNC, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57)
Seat
Saddle
Lapierre by Velo
Seatpost
Lapierre Dropper, 75mm drop (S), 125mm drop (M,L), 150mm drop (XL)
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.38 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 370 mm | 365 mm | 365 mm | 365 mm |
| Stack | 612 mm | 619 mm | 628 mm | 637 mm |
| Reach | 436 mm | 449 mm | 466 mm | 489 mm |
| Top Tube Length | 592 mm | 607 mm | 627 mm | 652 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Bottom Bracket Drop | -15 mm | -10 mm | -10 mm | -10 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

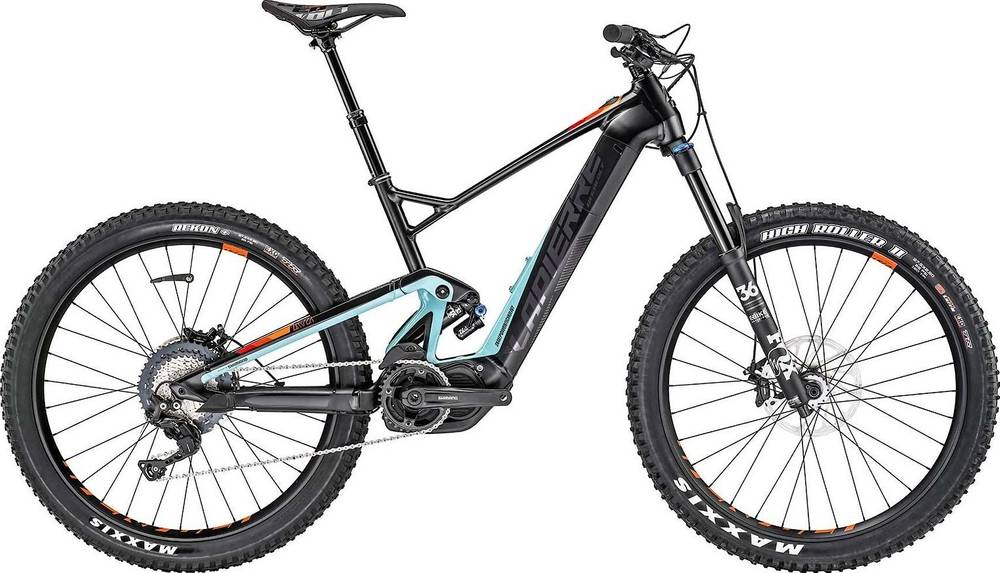

Overvolt AM 727i is a Lapierre E Overvolt model. Lapierre released 146 e-bikes variations of this model so far. You can easily view all of the Lapierre E Overvolt e-bikes models from 2018, here.
Model range prices
The most economical model, the Lapierre OVERVOLT TREKKING 100 2018 has a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand is the most expensive at 6901$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overvolt AM 727i components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float DPX2 Performance Series model, with a travel of 160mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels size
As for the wheels, Lapierre Overvolt AM 727i 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
For your safety, it is important to have quality breaks on your bike. Lapierre Overvolt AM 727i has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Lapierre Overvolt AM 727i includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
