Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork Fox Performance Float 36
-
Groupset XT Di2, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Integrated -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float Performance Series, Boost, e-bike specific
Rear Shock
FOX Float DPX2 Performance Series, 3-position lever, 185mm x 55mm, Trunnion mount
Drivetrain
Rear Derailleur
Shimano XT Di2 GS Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano XT Di2, 11-speed
Cassette
Shimano XT, 11-46 tooth, 11-speed
Crank
Shimano E8000, 170mm length
Chain
11-speed
Chain Guide
e*thirteen TRS
Pedals
None included
Wheels
Front Hub
Lapierre EAM+, Boost front and rear
Rear Hub
Lapierre EAM+, Boost front and rear
Rims
Lapierre EAM+
Spokes
J-bend
Tires
Front: Maxxis High Roller II, 2.8" 3c MaxxTerra, Rear: Maxxis Rekon+ 2.8", EXO TR foldable 60tpi
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Cockpit
Stem
Pro Tharsis Trail 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Handlebar
Pro Koryak Di2, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57)
Seat
Saddle
Fi'zi:k Gobi M5 Kium
Seatpost
Lapierre Dropper, 75mm drop (S), 125mm drop (M,L), 150mm drop (XL)
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.38 mm | 1.35 mm | 1.3 mm |
| Bottom Bracket Height | 370 mm | 365 mm | 365 mm | 365 mm |
| Stack | 612 mm | 619 mm | 628 mm | 637 mm |
| Reach | 436 mm | 449 mm | 466 mm | 489 mm |
| Top Tube Length | 592 mm | 607 mm | 627 mm | 652 mm |
| Seat Tube Angle | 75.5 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 65 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Bottom Bracket Drop | -15 mm | -10 mm | -10 mm | -10 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

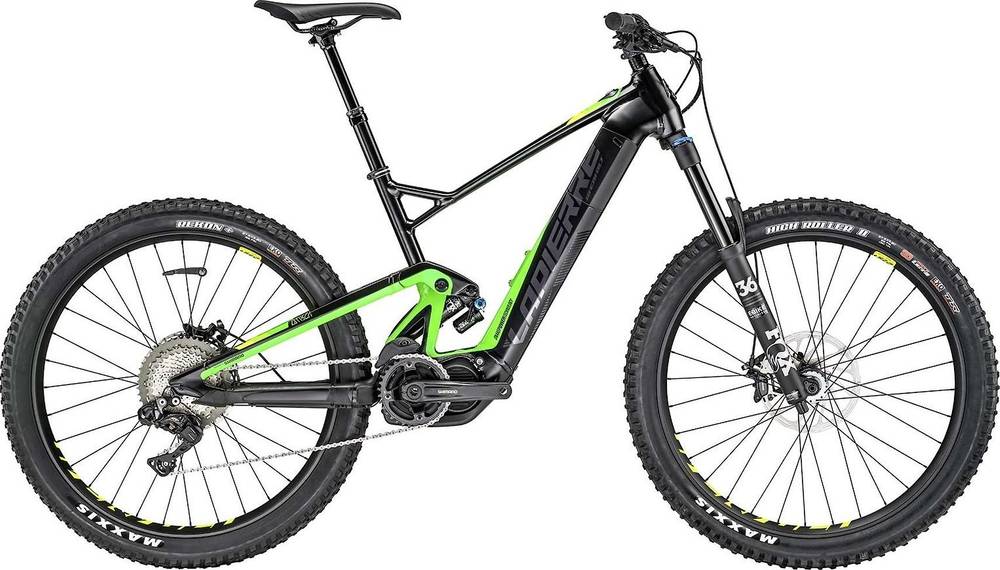

Overvolt AM 827i is part of the Lapierre E Overvolt model. 146 e-bikes variations carry this model name so far. Take a sneak peek at all Lapierre E Overvolt e-bikes models from 2018, by clicking here.
Model range prices
The most economical model, the Lapierre OVERVOLT TREKKING 100 2018 has a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand is the most expensive at 6901$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, this doesn’t mean that if you spend less money on an Enduro e-bike, you couldn’t get a decent one. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Overvolt AM 827i components
Fork
The Overvolt AM 827i comes factory-installed with the Fox Performance Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float DPX2 Performance Series model, with a travel of 160mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
When it comes to wheels, the Overvolt AM 827i e-bike is equipped with the 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overvolt AM 827i comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
