Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Performance Float 34
-
Groupset XT Di2, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano Integrated -
Drivetrain 1 × 11 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 34 Float Performance Series, Boost, e-bike specific
Rear Shock
FOX Float DPS LV EVOL, Performance Series, 185mm x 52.5mm
Drivetrain
Rear Derailleur
Shimano XT Di2 GS Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano XT Di2, 11-speed
Cassette
Shimano XT, 11-46 tooth, 11-speed
Crank
Shimano E8000, 170mm length
Chain
11-speed
Chain Guide
e*thirteen TRS
Pedals
None included
Wheels
Front Hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148S, Boost 12mm x 148mm, Shimano driver
Rear Hub
Front: Formula DC-711, Boost 15mm x 110mm, Rear: Formula DHT-148S, Boost 12mm x 148mm, Shimano driver
Rims
Lapierre Tryp 30, 32 hole
Tires
Schwalbe Nobby Nic, 2.6" Addix Speed Grip, folding, Snake Skin, Tubeless Easy
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Cockpit
Stem
Pro Tharsis Trail 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Handlebar
Pro Koryak Di2, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57)
Seat
Saddle
Fi'zi:k Gobi M5 Kium
Seatpost
Lapierre Dropper, 75mm drop (S), 125mm drop (M,L), 150mm drop (XL)
Motor & Battery
Motor
Shimano Steps E8000
Battery
Shimano Integrated
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.49 mm | 1.43 mm | 1.37 mm | 1.32 mm |
| Bottom Bracket Height | 325 mm | 330 mm | 330 mm | 330 mm |
| Stack | 635 mm | 630 mm | 630 mm | 639 mm |
| Reach | 425 mm | 441 mm | 461 mm | 484 mm |
| Top Tube Length | 582 mm | 602 mm | 622 mm | 647 mm |
| Seat Tube Angle | 76 ° | 75.5 ° | 75.5 ° | 75.5 ° |
| Seat Tube Length | 390 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 120 mm | 120 mm | 120 mm | 130 mm |
| Chainstay Length | 467 mm | 467 mm | 467 mm | 467 mm |
| Bottom Bracket Drop | 30 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

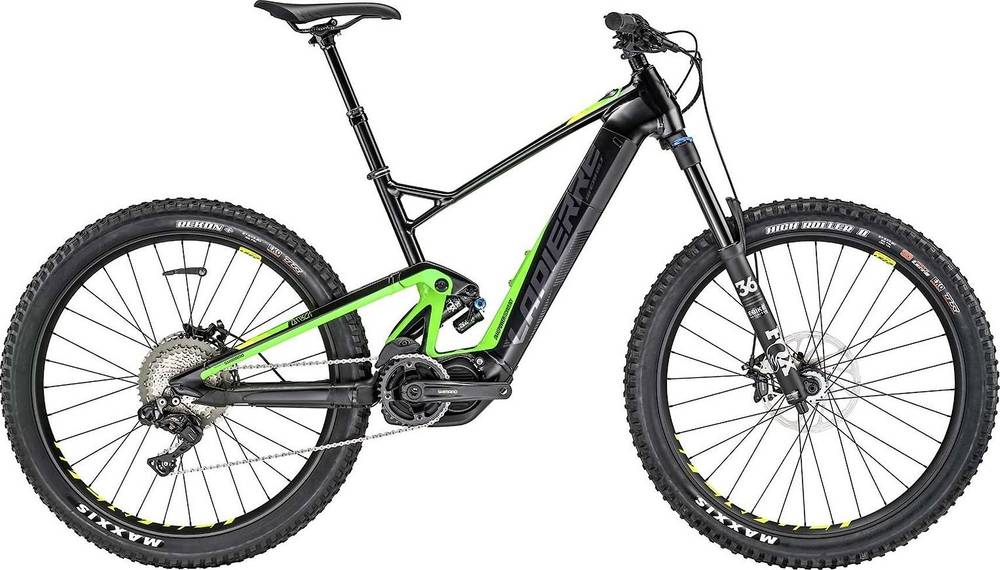

Overvolt AM 829i belongs to the Lapierre E Overvolt model. There are 146 e-bikes that carry this model name. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
Lapierre OVERVOLT TREKKING 100 2018 is the most economical model, with a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand costs 6901$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail e-bikes average price
If you want to purchase a solid Trail e-bike, it is important to know that the average cost is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork
This e-bike has the Fox Performance Float 34 fork installed. The fork’s travel is 140mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the FOX Float DPS LV EVOL model, with a travel of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Overvolt AM 829i 2018 e-bike is equipped with 27.5″ aluminum wheels when leaving the factory. 27.5″ wheels are a mixture between 29″ wheels and 26″ wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overvolt AM 829i comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Overvolt AM 829i comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
The Lapierre model is also equipped with a dropper post. Therefore, climbing or descending will be a breeze.
