Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Pike RC
-
Groupset X01, GX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Lithium-ion -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Pike RC Solo Air, Boost
Rear Shock
RockShox Super Deluxe RC3, 210mm x 52.5mm
Drivetrain
Rear Derailleur
SRAM X01 Carbon
Front Derailleur
N/A
Shift Levers
SRAM GX, 11-speed
Cassette
Shimano KCSM8000, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, 170mm length
Chain
11-speed
Chain Guide
Yes
Pedals
None included
Wheels
Front Hub
Lapierre eAM+, Boost front and rear
Rear Hub
Lapierre eAM+, Boost front and rear
Rims
Lapierre eAM+
Spokes
J-bend
Tires
Front: Maxxis Minion DHF, 2.8" EXO TR, Rear: Maxxis Rekon+, 2.8" 3c EXO TR
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Cockpit
Stem
Lapierre 6061 CNC, 35mm length (S), 45mm length (M-L), 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seat
Saddle
Fi'zi:k Gobi
Seatpost
Lapierre Dropper, 75mm (S) 125mm (M) 150mm (L), 350mm length
Motor & Battery
Motor
Bosch Performance CX, 250W
Battery
Bosch Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm |
| Stack | 600 mm | 609 mm | 619 mm |
| Reach | 390 mm | 418 mm | 440 mm |
| Top Tube Length | 573 mm | 603 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

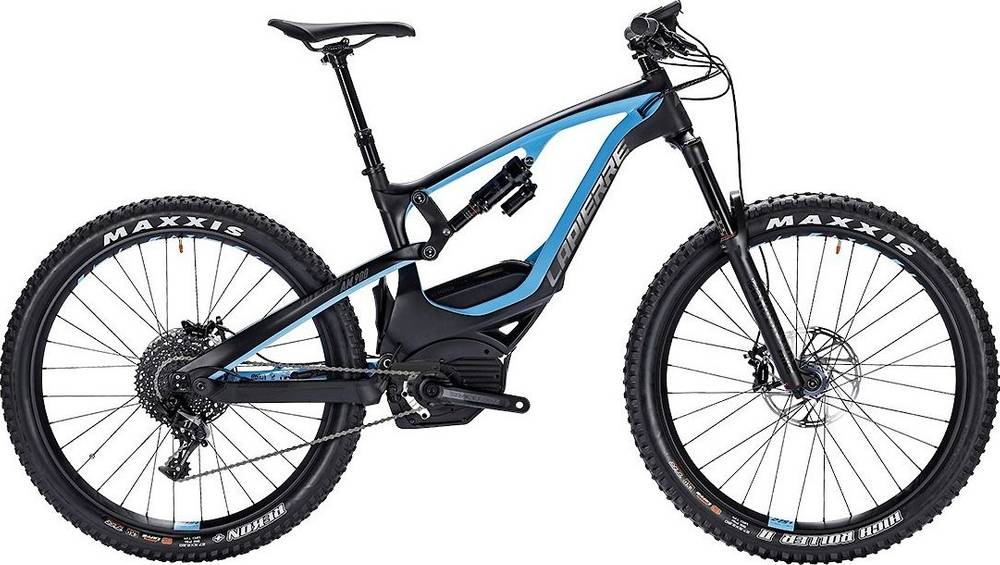

Overvolt AM 900+ belongs to the Lapierre E Overvolt model. 146 e-bikes variations carry this model name so far. Check out the entire range from 2018 of this model, by clicking this link.
Model range prices
Lapierre OVERVOLT TREKKING 100 2018 is the cheapest e-bike model and costs 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 is the most expensive one and costs 6901$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Enduro e-bikes average weight
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 22.7 kg (50.04 lbs), Lapierre e-bike is slightly lighter than average. In other words, this model is 3.17% lighter than the average Enduro e-bike.
Overview of components
Fork
Lapierre Overvolt AM 900+ 2018 e-bike is equipped with the RockShox Pike RC fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe RC3 rear shock model, which has a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
As for the wheels, Lapierre Overvolt AM 900+ 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
