Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 27.5" -
Travel Front 150mm -
Travel Rear 150mm -
Fork RockShox Pike RC
-
Groupset X01, GX -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube Lithium-ion -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Pike RC Solo Air, Boost
Rear Shock
RockShox Super Deluxe RC3, 210mm x 50mm
Drivetrain
Rear Derailleur
SRAM X01 Carbon
Front Derailleur
N/A
Shift Levers
SRAM GX, 11-speed
Cassette
Sunrace MS8, 11-46 tooth, 11-speed
Crank
Race Face Aeffect, 170mm length
Chain
11-speed
Chain Guide
Anti Chain Suck
Pedals
None included
Wheels
Front Hub
Lapierre eAM+, Front: Boost, 15mm x 110mm, torque caps, Rear: Boost, 12mm x 148mm
Rear Hub
Lapierre eAM+, Front: Boost, 15mm x 110mm, torque caps, Rear: Boost, 12mm x 148mm
Rims
Lapierre eAM+, 32 hole
Spokes
J-bend
Tires
Front: Maxxis High Roller II, 2.8" 3c MaxxTerra EXO TR 60 TPI foldable, Rear: Maxxis Rekon+, 2.8" EXO TR 60 TPI foldable
Brakes
Brakes
SRAM Guide RE
Brake Levers
SRAM Guide RE
Cockpit
Stem
Lapierre 6061DB CNC 0°, 35mm length (S-M), 45mm length (L-XL), 31.8mm clamp
Handlebar
Lapierre 6061DB, 760mm width, 20mm rise, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seat
Saddle
Fi'zi:k Gobi M5 Kium
Seatpost
Lapierre Dropper, trigger, 100mm (S), 125mm (M-L), 150mm (XL)
Motor & Battery
Motor
Bosch Performance CX, 250W
Battery
Bosch PowerTube Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.534 mm | 1.46 mm | 1.408 mm | 1.361 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm | 360 mm |
| Stack | 606 mm | 616 mm | 625 mm | 634 mm |
| Reach | 395 mm | 422 mm | 444 mm | 466 mm |
| Top Tube Length | 580 mm | 610 mm | 635 mm | 660 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 400 mm | 430 mm | 460 mm | 500 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 120 mm | 130 mm | 140 mm | 150 mm |
| Chainstay Length | 460 mm | 460 mm | 460 mm | 460 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm | -5 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

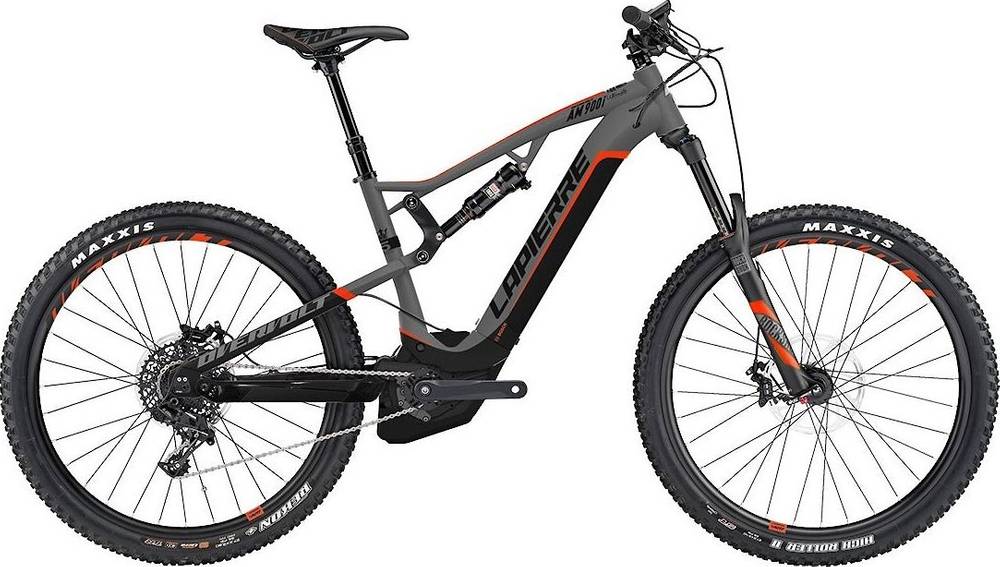

Overvolt AM 900i is a Lapierre E Overvolt model. 146 e-bikes variations carry this model name so far. Take a sneak peek at all Lapierre E Overvolt e-bikes models from 2018, by clicking here.
Model range prices
Lapierre OVERVOLT TREKKING 100 2018 is the cheapest e-bike model and costs 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 is the most expensive one and costs 6901$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Overview of components
Fork
Lapierre Overvolt AM 900i 2018 e-bike is equipped with the RockShox Pike RC fork, and has 150mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
Lapierre Overvolt AM 900i e-bike has the RockShox Super Deluxe RC3 model installed, and has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Overvolt AM 900i e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, these wheels have a slower top speed if you compare them to 29″ wheels.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Overvolt AM 900i comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Overvolt AM 900i. Therefore, climbing or descending will be a breeze.
