Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 160mm -
Fork RockShox Lyrik
-
Groupset EX1 -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Lithium-ion -
Drivetrain 1 × 8 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox Lyrik RCT3 Solo Air, Boost
Rear Shock
RockShox Super Deluxe RC3 DebonAir, 210mm x 55mm
Drivetrain
Rear Derailleur
SRAM EX1
Front Derailleur
N/A
Shift Levers
SRAM EX1, 8-speed
Cassette
SRAM XG-899, 11-48 tooth, 8-speed
Crank
SRAM EX1 Isis, 170mm length
Chain
8-speed
Chain Guide
Yes
Pedals
None included
Wheels
Front Hub
Lapierre eAM+, Boost front and rear
Rear Hub
Lapierre eAM+, Boost front and rear
Rims
Lapierre eAM+
Spokes
J-bend
Tires
Front: Maxxis Minion DHF, 2.8" EXO TR, Rear: Maxxis Rekon+, 2.8" 3c EXO TR
Brakes
Brakes
SRAM Code RSC
Brake Levers
SRAM Code RSC
Cockpit
Stem
Lapierre 6061 CNC, 35mm length (S), 45mm length (M-L), 31.8mm clamp
Handlebar
Race Face SixC, carbon, 785mm width, 31.8mm diameter
Headset
FSA Orbit 1.5 ZS (No.57SC)
Seat
Saddle
Fi'zi:k Gobi M5
Seatpost
RockShox Reverb, 100mm drop (S) 125mm drop (M, L) 150mm drop (Xl), 340mm length
Motor & Battery
Motor
Bosch Performance CX, 250W
Battery
Bosch Lithium-ion
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.46 mm | 1.41 mm |
| Bottom Bracket Height | 360 mm | 360 mm | 360 mm |
| Stack | 600 mm | 609 mm | 619 mm |
| Reach | 390 mm | 418 mm | 440 mm |
| Top Tube Length | 573 mm | 603 mm | 628 mm |
| Seat Tube Angle | 73 ° | 73 ° | 73 ° |
| Seat Tube Length | 420 mm | 440 mm | 480 mm |
| Head Tube Angle | 66 ° | 66 ° | 66 ° |
| Head Tube Length | 110 mm | 120 mm | 130 mm |
| Chainstay Length | 478 mm | 478 mm | 478 mm |
| Bottom Bracket Drop | -5 mm | -5 mm | -5 mm |
| Wheels | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

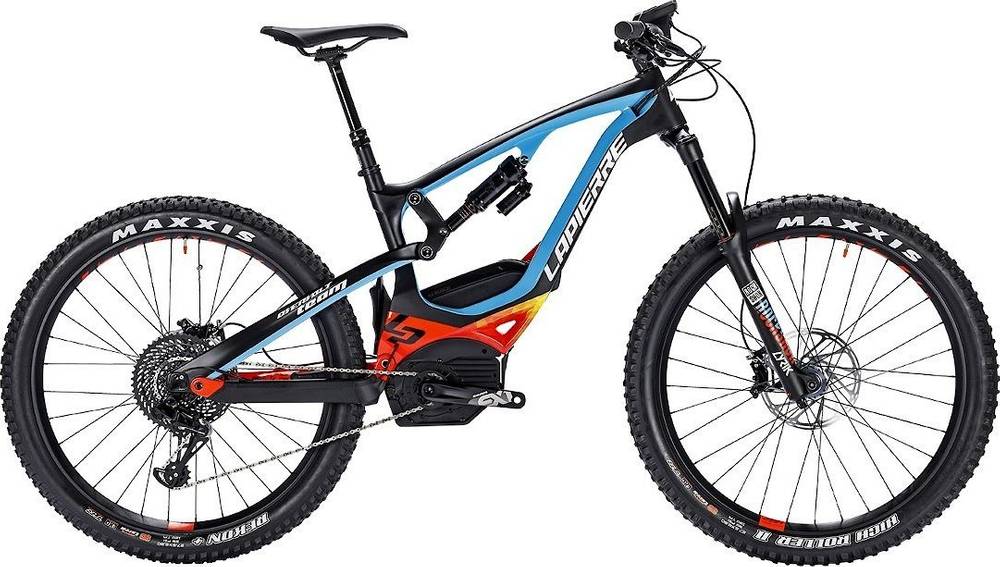

Model Overview
Overvolt AM Team is part of the Lapierre E Overvolt model. Lapierre launched 146 e-bikes of this model so far. You can get a glimpse at all models from 2018, by clicking on this link.
Model range prices
The most economical model, the Lapierre OVERVOLT TREKKING 100 2018 has a starting price of 1698$. Lapierre OVERVOLT AM 829i SHIMANO 2018 on the other hand is the most expensive at 6901$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Lapierre Overvolt AM Team it’s weighing 22.8 kg (50.27 lbs). At this weight, is slightly lighter than average. In other words, this model is 2.72% lighter than the average Enduro e-bike.
Overview of components
Fork
The fork installed on this bike is the RockShox Lyrik model. The travel on this model is 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the RockShox Super Deluxe RC3 DebonAir rear shock model, which has a travel of 160mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
As for the wheels, Lapierre Overvolt AM Team 2018, has a 27.5″ aluminum model. 27.5″ wheels will reach higher speeds than smaller-sized wheels. However, the 27.5″ wheels are less forgiving than the 29″ wheels.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Overvolt AM Team comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Lapierre Overvolt AM Team comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
