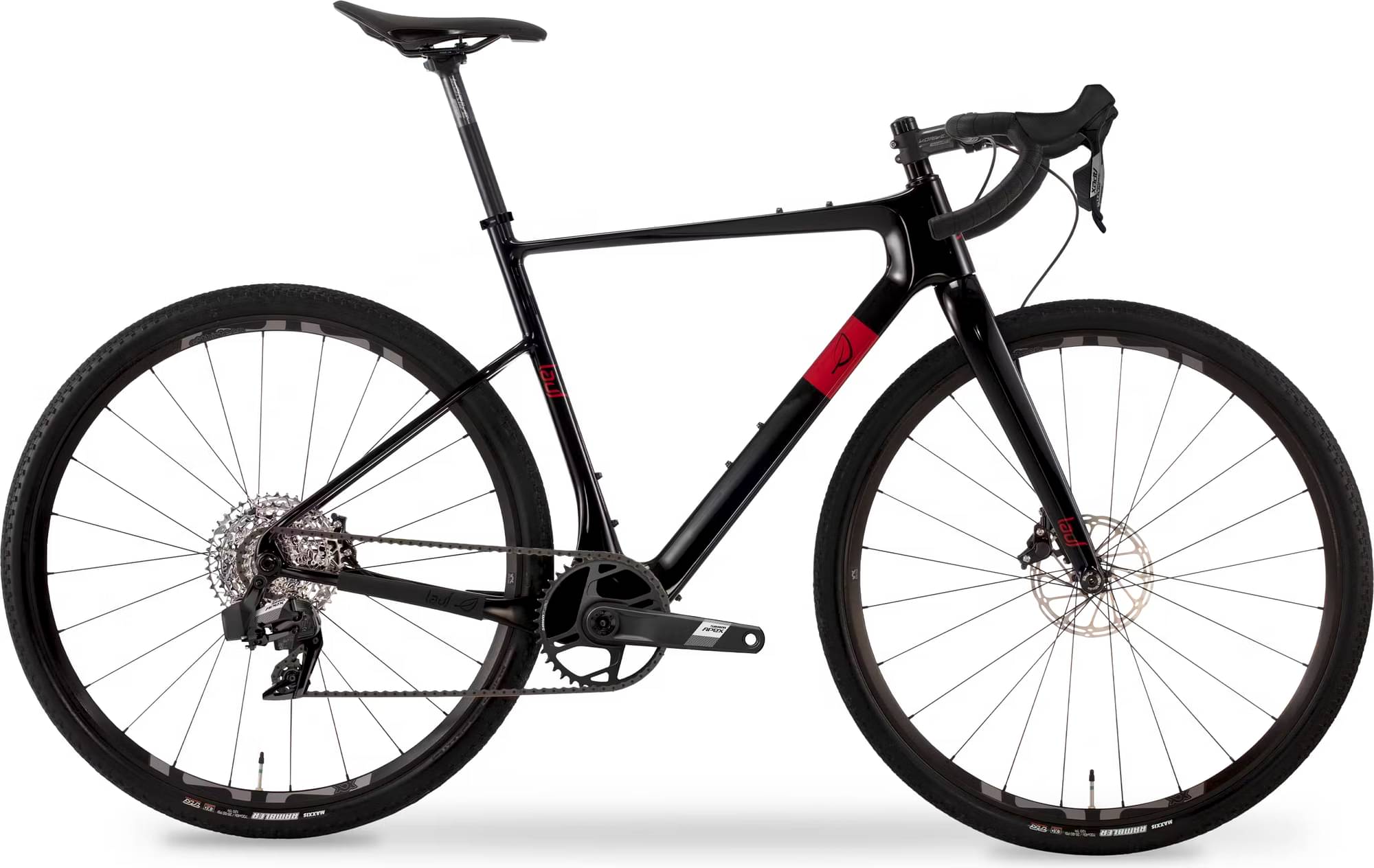

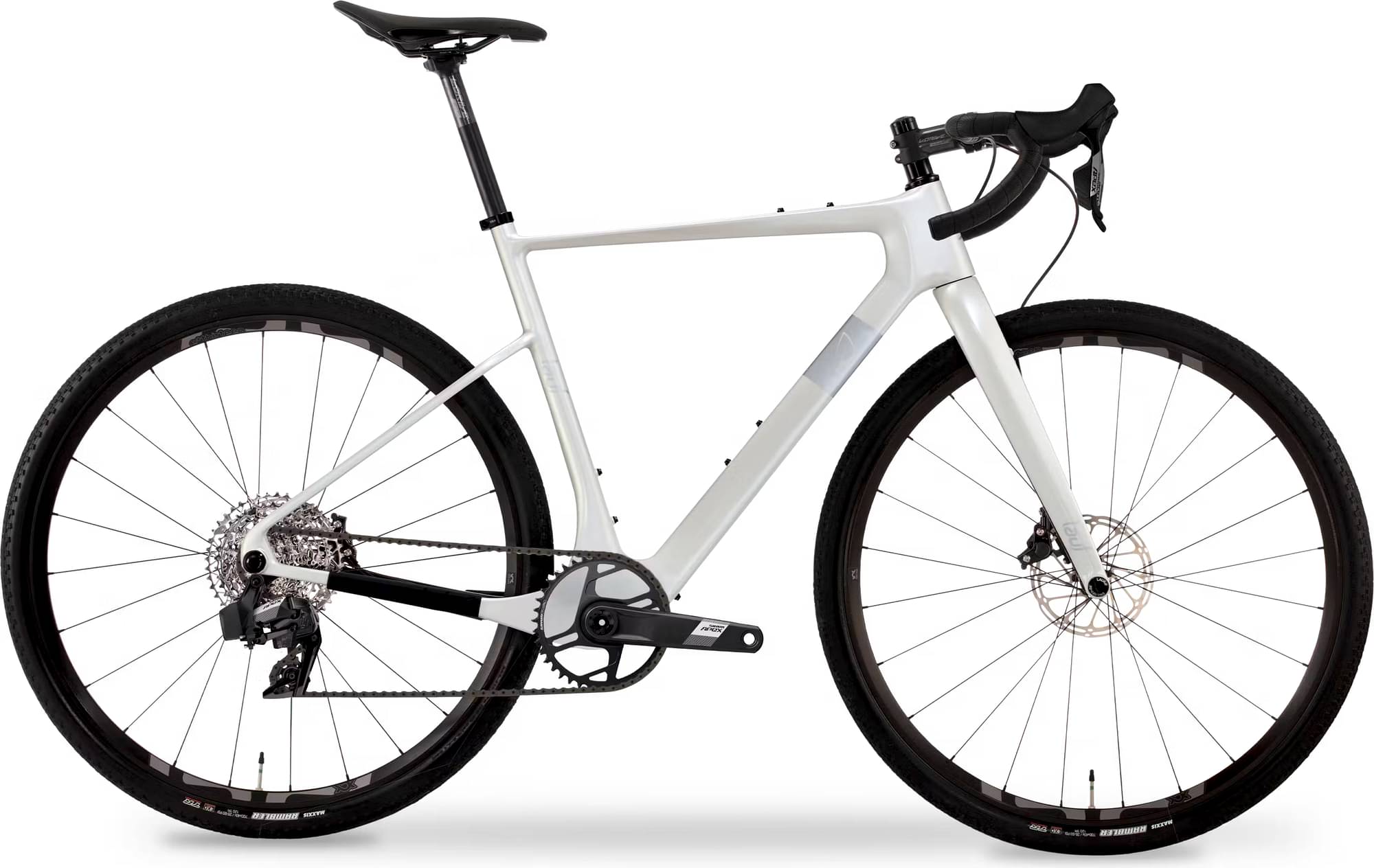

Lauf Seigla Rigid – Core Wireless 2023
2023 Road
Estimate price |
2,640$
Weight | 9.08 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Fork Lauf JAF -
Groupset Apex XPLR AXS, Apex AXS -
Suspension Rigid -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 167cm
SM
164cm - 176cm
MD
173cm - 184cm
LG
181cm - 192cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lauf IRM* Seigla carbon frame, 12x142mm thru-axle
Suspension Fork
Lauf JAF 2nd gen Carbon, 12x100mm thru-axle
Drivetrain
Rear Derailleur
SRAM Apex AXS XPLR, wireless shifting
Shift Levers
SRAM Apex AXS, wireless shifting
Cassette
SRAM 1231, 12 speed, 11-44t
Crank
SRAM Apex 1 Wide DUB 40t
Bottom Bracket
SRAM DUB BSA73
Chain
SRAM Apex flat-top
Wheels
Rims
e*thirteen XCX Aluminum (6-bolt, Shimano-style freehub, tubeless ready)
Tires
Maxxis Rambler 45c (120tpi)
Brakes
Brakes
SRAM Apex Flat mount Hydraulic (160mm rotor front/left and rear/right)
Cockpit
Stem
FSA V-Drive, 6°
Handlebar
Lauf Smoothie (XS/S: 40 M: 42 L/XL: 44)
Headset
FSA Orbit, IS 42/52 (45°lower)
Seat
Saddle
Fizik Aliante R5
Seatpost
FSA V-Drive 27.2mm, Aluminum
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 589 mm | 600 mm | 620 mm | 641 mm | 664 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 75 mm | 74 mm | 75 mm | 75 mm | 73 mm |
| Stack | 516 mm | 530 mm | 557 mm | 586 mm | 616 mm |
| Reach | 371 mm | 376 mm | 387 mm | 398 mm | 409 mm |
| Top Tube Length | 525 mm | 537 mm | 556 mm | 577 mm | 600 mm |
| Seat Tube Angle | 72.9 ° | 72.7 ° | 72.5 ° | 72.4 ° | 72.3 ° |
| Seat Tube Length | 461 mm | 500 mm | 528 mm | 548 mm | 575 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 84 mm | 99 mm | 129 mm | 159 mm | 191 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1013 mm | 1033 mm | 1054 mm | 1077 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 724 mm | 756 mm | 782 mm | 804 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 164 cm | 173 cm | 181 cm | 189 cm |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 192 cm | 200 cm |
Model Overview
Seigla Rigid – Core Wireless belongs to the Lauf Seigla model. Lauf released 21 bikes variations of this model so far. You can easily view all of the Lauf Seigla bikes models from 2023, here.
Model range prices
Lauf Seigla Rigid – Weekend Warrior 2023 is the most economical model, with a starting price of 2540$. Lauf Seigla Rigid – Ultimate 2023 on the other hand costs 6240$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2640$. If we compare this with the average Gravel bike cost we notice that the price is 7.23% higher.
Gravel bikes average weight
Gravel bikes have an average weight of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 9.08 kg (20.02 lbs), Lauf bike is considerably heavier than average. In conclusion, the average Gravel bike weighs 11.69% less than Seigla Rigid – Core Wireless.
Seigla Rigid – Core Wireless components
Fork
The fork installed on this bike is the Lauf JAF model. The travel on this model is mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
The wheels on Seigla Rigid – Core Wireless are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lauf Seigla Rigid – Core Wireless is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
Lauf Seigla Rigid – Core Wireless bike has 5 sizes, in the range of 156 cm – 200 cm (5.12 ft – 6.56 ft). In conclusion, finding one for you shouldn’t be a problem.
