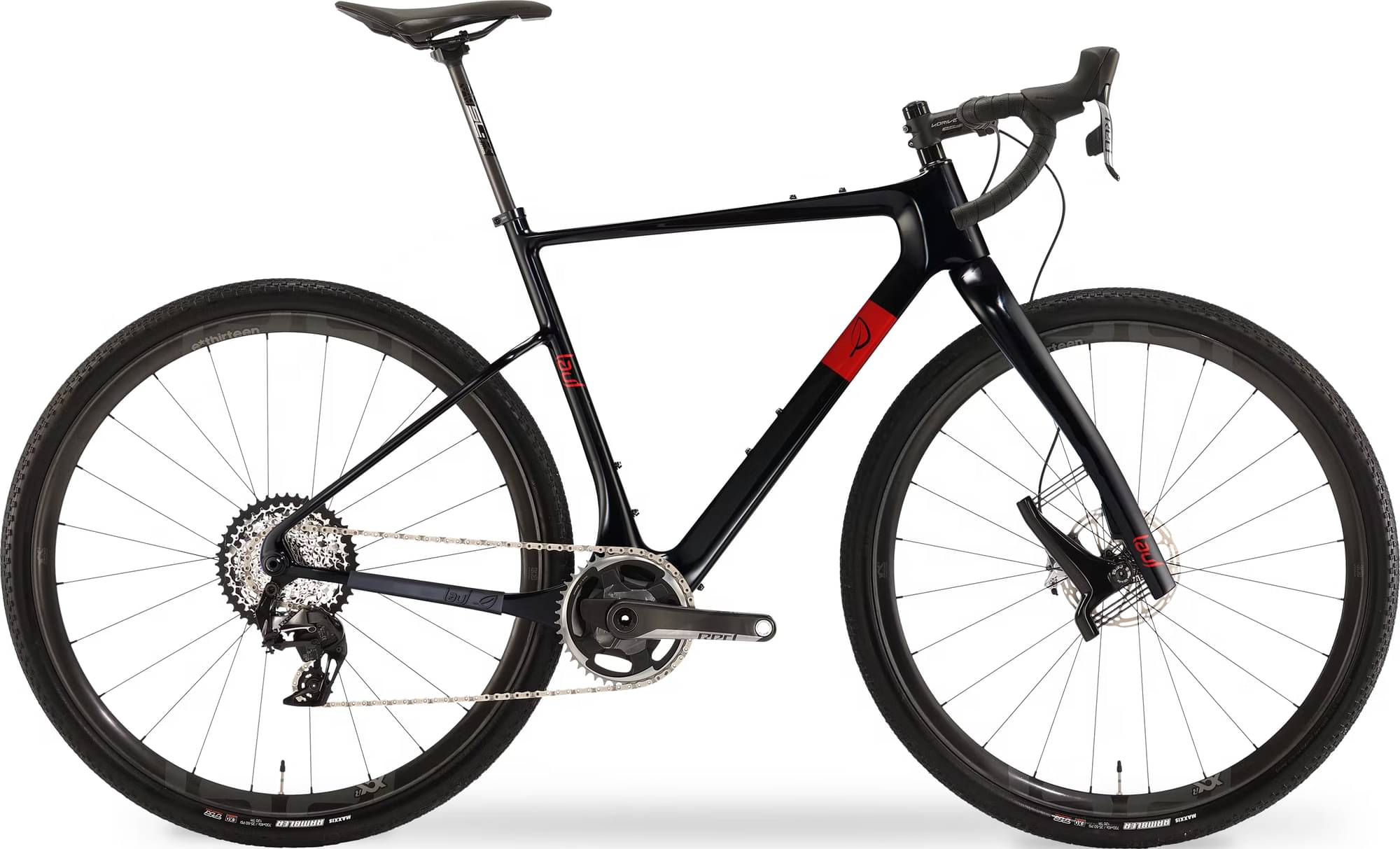

Lauf Seigla – Ultimate 2022
2022 Road
Estimate price |
7,329$
Weight | 8.25 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 30mm -
Fork Lauf Grit
-
Groupset RED XPLR eTap, RED eTap -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 167cm
SM
164cm - 176cm
MD
173cm - 184cm
LG
181cm - 192cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lauf IRM* carbon frame, 12x142mm thru-axle
Suspension Fork
Lauf Grit 3rd gen Carbon, 12x100mm thru-axle, size tuned stiffness
Drivetrain
Rear Derailleur
SRAM Red AXS XPLR, wireless shifting
Shift Levers
SRAM Red AXS, wireless shifting
Cassette
SRAM 1271, 12 speed, 10-44t
Crank
SRAM Red 1 Wide DUB 40t
Bottom Bracket
SRAM DUB BSA73
Chain
SRAM Red flat-top
Wheels
Rims
e*thirteen XCX Race Carbon (6 bolt, xDR freehub, tubeless ready)
Tires
Maxxis Rambler 40c (120tpi)
Brakes
Brakes
SRAM Red Flat mount Hydraulic (160mm rotor front/left and rear/right)
Cockpit
Stem
FSA V-Drive, 6°
Handlebar
Lauf Smoothie (XS/S: 40 M: 42 L/XL: 44)
Headset
FSA Orbit, IS 42/52 (45°lower)
Seat
Saddle
Fizik Aliante R5
Seatpost
FSA SL-K 27.2mm, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 589 mm | 600 mm | 620 mm | 641 mm | 664 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 75 mm | 74 mm | 75 mm | 75 mm | 73 mm |
| Stack | 516 mm | 530 mm | 557 mm | 586 mm | 616 mm |
| Reach | 371 mm | 376 mm | 387 mm | 398 mm | 409 mm |
| Top Tube Length | 525 mm | 537 mm | 556 mm | 577 mm | 600 mm |
| Seat Tube Angle | 72.9 ° | 72.7 ° | 72.5 ° | 72.4 ° | 72.3 ° |
| Seat Tube Length | 461 mm | 500 mm | 528 mm | 548 mm | 575 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 84 mm | 99 mm | 129 mm | 159 mm | 191 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1013 mm | 1033 mm | 1054 mm | 1077 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 724 mm | 756 mm | 782 mm | 804 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 164 cm | 173 cm | 181 cm | 189 cm |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 192 cm | 200 cm |
Model Overview
Seigla – Ultimate is a Lauf Seigla model. 18 bikes variations carry this model name so far. Take a sneak peek at all Lauf Seigla bikes models from 2022, by clicking here.
Model range prices
Lauf Seigla Rigid – Weekend Warrior 2022 is the most affordable bike of this model and has a price of 2640$. On the other hand, Lauf Seigla – Ultimate 2022, is the most expensive and costs 6785$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Gravel bikes average price
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
This bike was released in 2022 and its price was 6785$. Comparing the average cost of a Gravel bike to this one, you will see that Seigla – Ultimate price is 175.59% higher.
Gravel bikes average weight
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 8.25 kg (18.19 lbs), the Seigla – Ultimate model is slightly heavier than average. In short, the average Gravel bike weight is 1.48% lower than this one.
Overview of components
Fork
Lauf Seigla – Ultimate 2022 bike is equipped with the Lauf Grit fork, and has 30mm travel. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
The fork is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels
When it comes to wheels, the Seigla – Ultimate bike is equipped with the 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lauf Seigla – Ultimate is equipped with Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
Seigla – Ultimate comes in 5 sizes, that range from 156 cm – 200 cm (5.12 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
