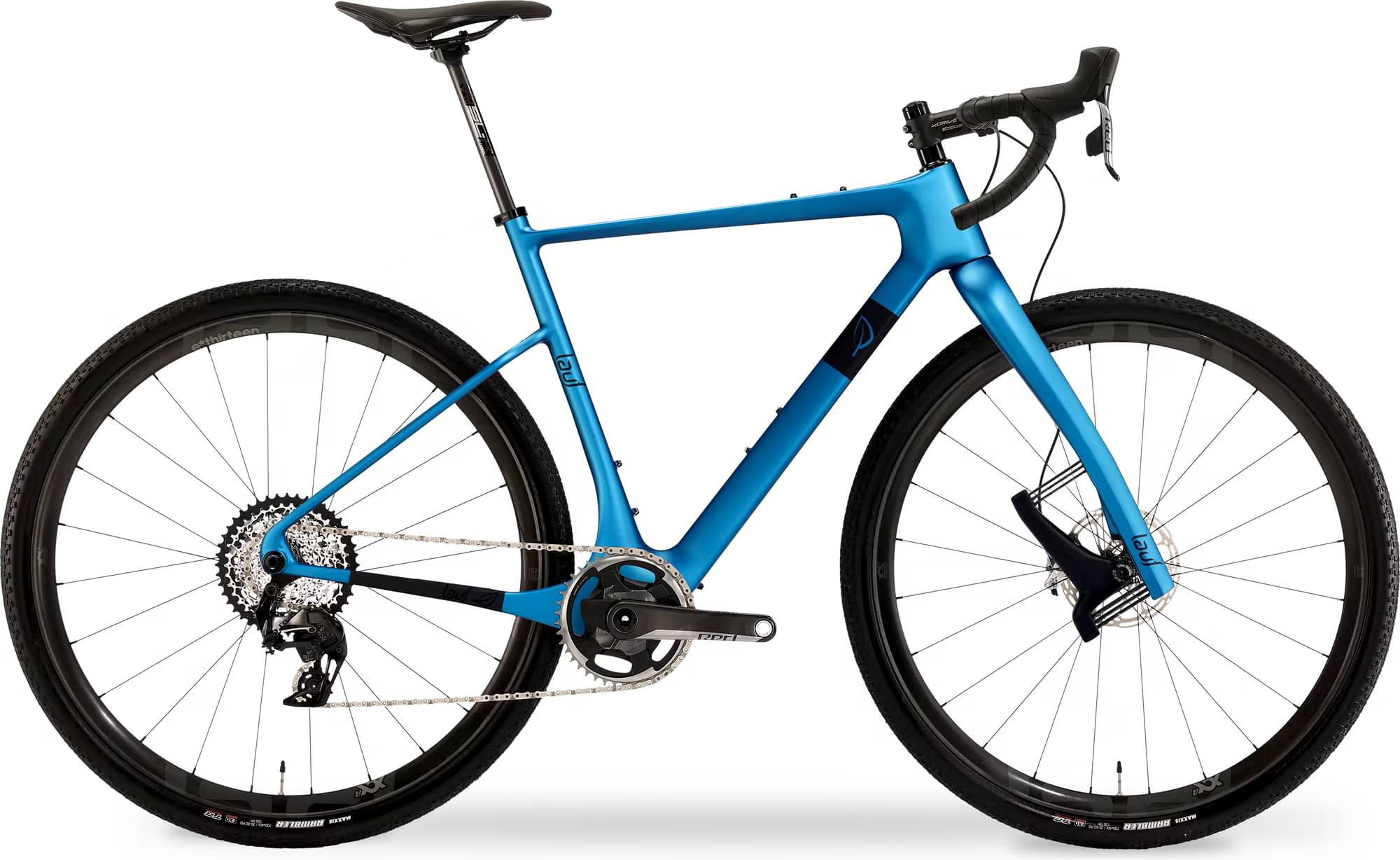

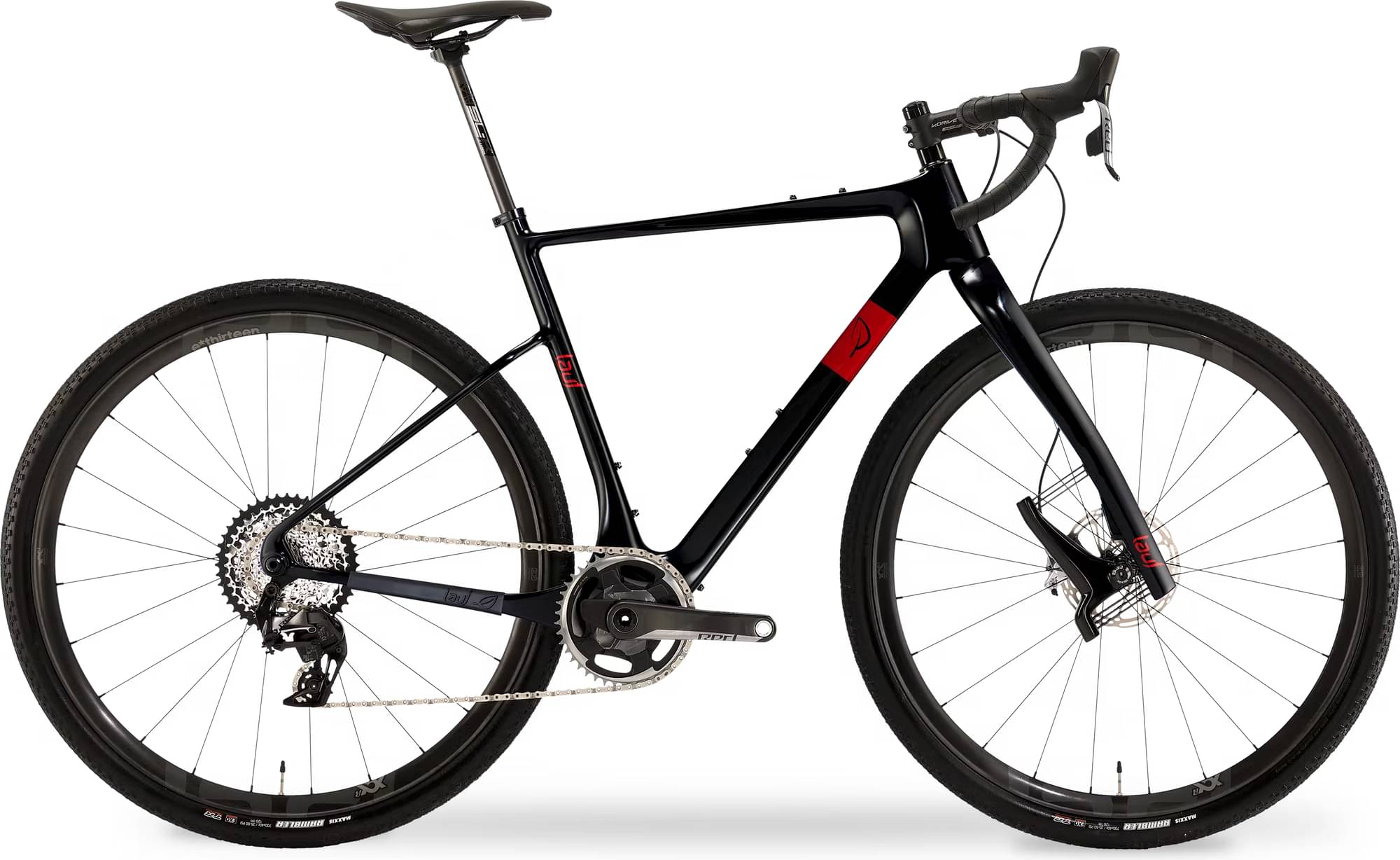

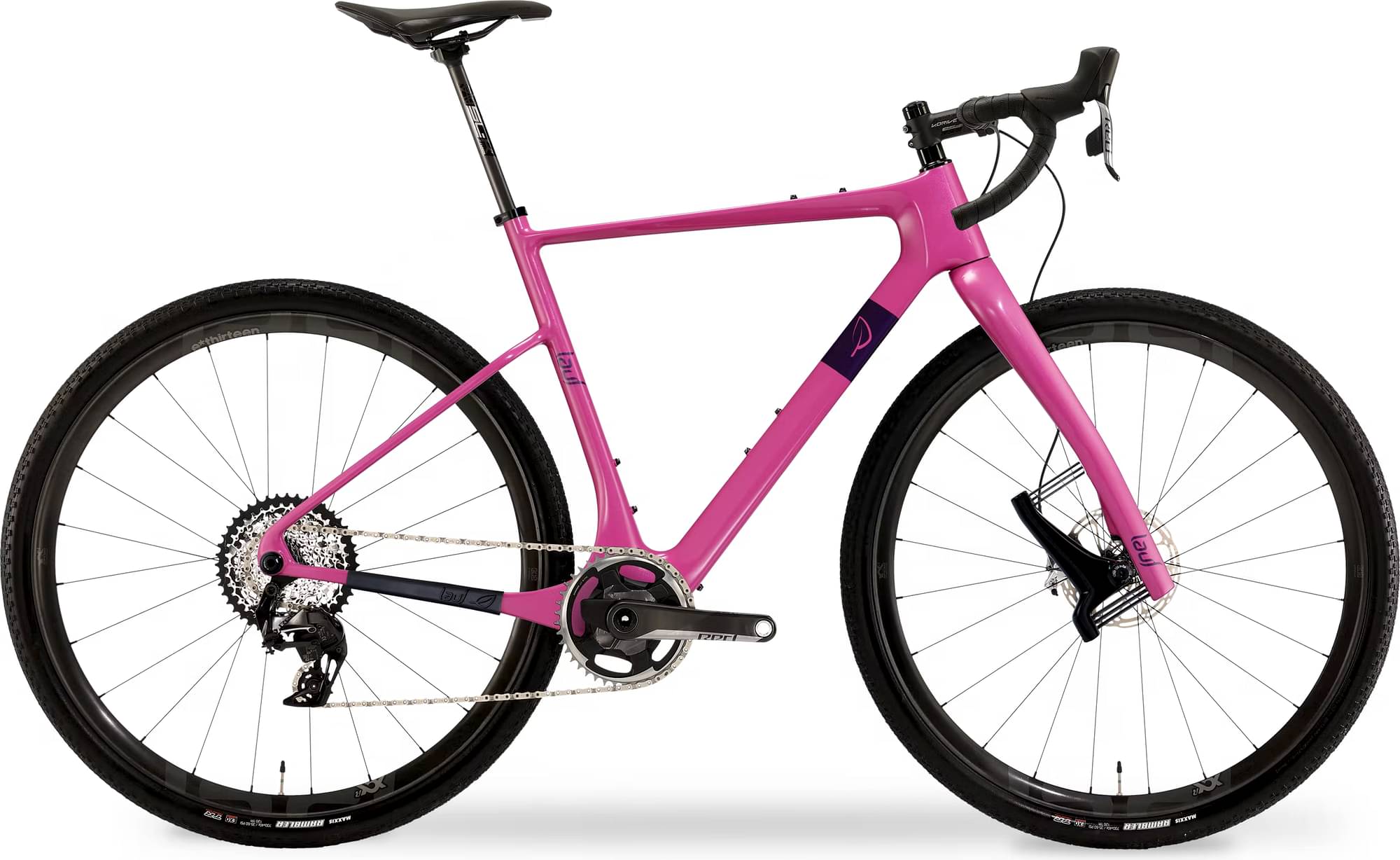

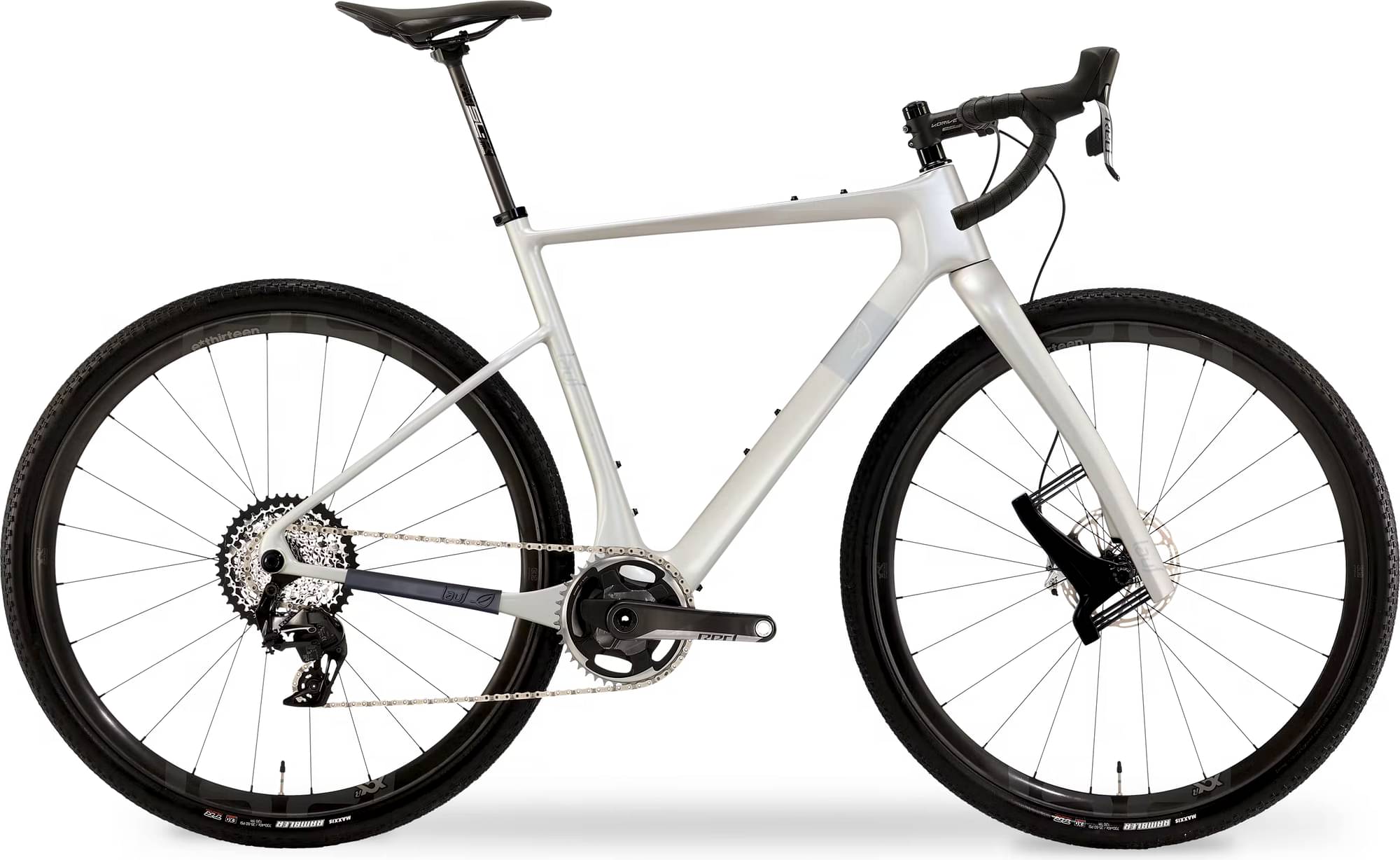

Lauf Seigla – Ultimate 2023
2023 Road
Estimate price |
5,990$
Weight | 8.45 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Travel Front 30mm -
Fork Lauf Grit
-
Groupset RED XPLR eTap, RED AXS -
Suspension Hardtail -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 167cm
SM
164cm - 176cm
MD
173cm - 184cm
LG
181cm - 192cm
XL
189cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Lauf IRM* Seigla carbon frame, 12x142mm thru-axle
Suspension Fork
Lauf Grit 3rd gen Carbon, 12x100mm thru-axle, size tuned stiffness
Drivetrain
Rear Derailleur
SRAM Red AXS XPLR, wireless shifting
Shift Levers
SRAM Red AXS, wireless shifting
Cassette
SRAM 1271, 12 speed, 10-44t
Crank
SRAM Red 1 Wide DUB 40t
Bottom Bracket
SRAM DUB BSA73
Chain
SRAM Red flat-top
Wheels
Rims
e*thirteen XCX Race Carbon (6 bolt, xDR freehub, tubeless ready)
Tires
Maxxis Rambler 45c (120tpi)
Brakes
Brakes
SRAM Red Flat mount Hydraulic (160mm rotor front/left and rear/right)
Cockpit
Stem
FSA V-Drive, 6°
Handlebar
Lauf Smoothie (XS/S: 40 M: 42 L/XL: 44)
Headset
FSA Orbit, IS 42/52 (45°lower)
Seat
Saddle
Fizik Aliante R5
Seatpost
FSA SL-K 27.2mm, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.41 mm | 1.44 mm | 1.47 mm | 1.51 mm |
| Bottom Bracket Height | 284 mm | 284 mm | 284 mm | 284 mm | 284 mm |
| Front Center | 589 mm | 600 mm | 620 mm | 641 mm | 664 mm |
| Rake | 47 mm | 47 mm | 47 mm | 47 mm | 47 mm |
| Trail | 75 mm | 74 mm | 75 mm | 75 mm | 73 mm |
| Stack | 516 mm | 530 mm | 557 mm | 586 mm | 616 mm |
| Reach | 371 mm | 376 mm | 387 mm | 398 mm | 409 mm |
| Top Tube Length | 525 mm | 537 mm | 556 mm | 577 mm | 600 mm |
| Seat Tube Angle | 72.9 ° | 72.7 ° | 72.5 ° | 72.4 ° | 72.3 ° |
| Seat Tube Length | 461 mm | 500 mm | 528 mm | 548 mm | 575 mm |
| Head Tube Angle | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° | 70.5 ° |
| Head Tube Length | 84 mm | 99 mm | 129 mm | 159 mm | 191 mm |
| Chainstay Length | 418 mm | 418 mm | 418 mm | 418 mm | 418 mm |
| Wheelbase | 1002 mm | 1013 mm | 1033 mm | 1054 mm | 1077 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 724 mm | 756 mm | 782 mm | 804 mm | 833 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 164 cm | 173 cm | 181 cm | 189 cm |
| Rider Max Height | 167 cm | 176 cm | 184 cm | 192 cm | 200 cm |
About this model
Seigla – Ultimate belongs to the Lauf Seigla model. Lauf released 18 bikes variations of this model so far. Take a sneak peek at all Lauf Seigla bikes models from 2023, by clicking here.
Model range prices
Lauf Seigla Rigid – Weekend Warrior 2023 is the cheapest bike model and costs 2540$. Lauf Seigla Rigid – Ultimate 2023 is the most expensive one and costs 6240$.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Gravel bikes
If you want to purchase a solid Gravel bike, it is important to know that the average cost is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Lauf released this model in 2023, its price was 5990$. Comparing this to the average Gravel bike price, we see that the price is 143.3% higher.
Average weight for Gravel bikes
The average weight for Gravel bikes is 8.13 kg (17.92 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly heavier than average, Seigla – Ultimate has a weight of 8.45 kg (18.63 lbs). In other words, this model is 3.94% heavier than the average Gravel bike.
Seigla – Ultimate components
Fork
This bike has the Lauf Grit fork installed. The fork’s travel is 30mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Fork material
Seigla – Ultimate has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
As for the wheels, Lauf Seigla – Ultimate 2023, has a 700c carbon model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Lauf Seigla – Ultimate is equipped with Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Lauf Seigla – Ultimate bike has 5 sizes, in the range of 156 cm – 200 cm (5.12 ft – 6.56 ft). In short, it won’t be difficult to find the right one for you.
