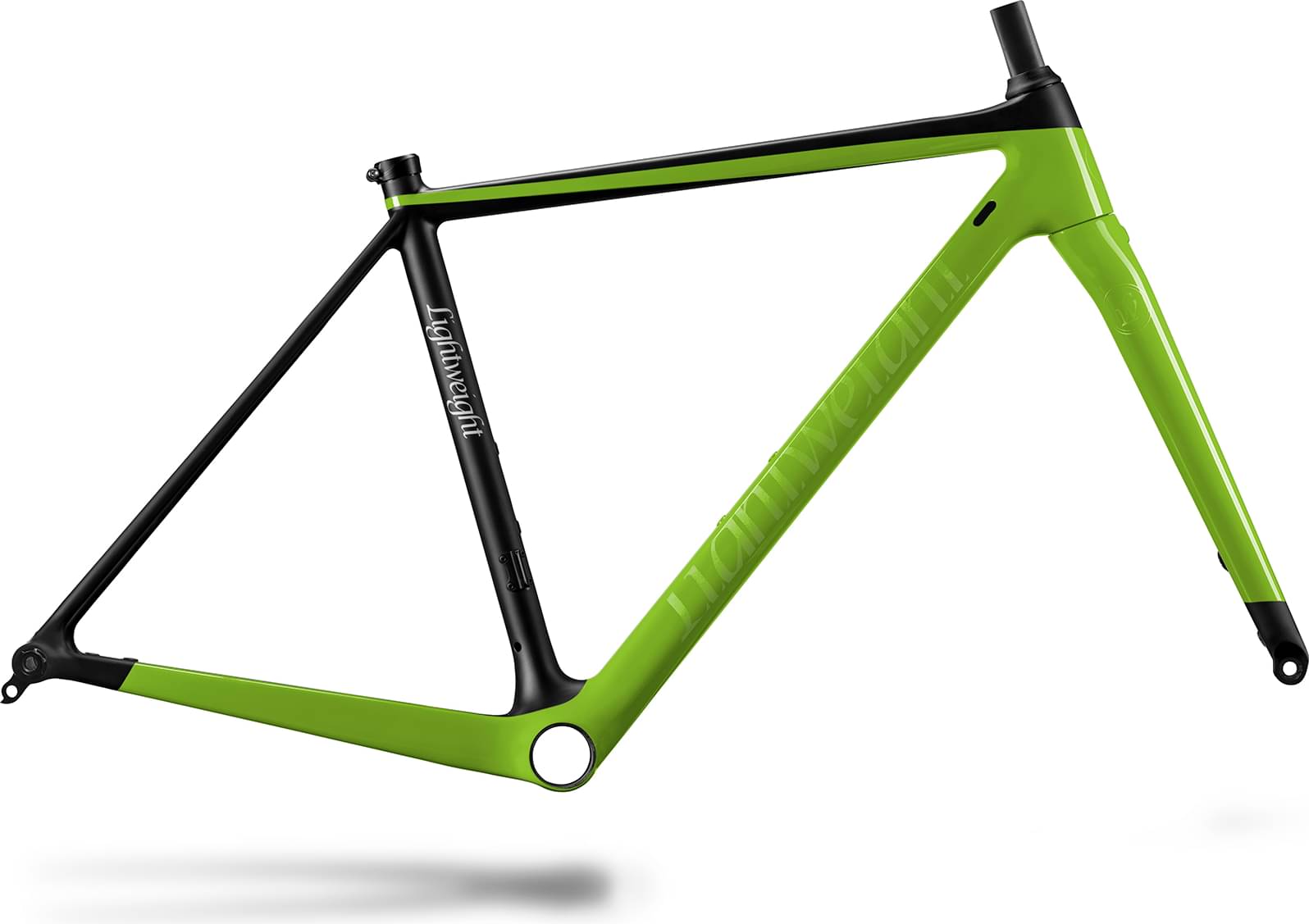

Lightweight Urgestalt Disc Frameset 2021
2021 Road
Estimate price |
4,000$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Ultra High Modulus Monocoque Carbon, 12x142mm Thru-Axle
Suspension Fork
Urgestalt Carbon, 1 1/8" - 1 1/2", 12x100mm Thru-Axle
Drivetrain
Bottom Bracket
BB86 Required
Cockpit
Headset
Integrated, 1 1/8" - 1 1/2"
Seat
Seatpost
27.2mm Required
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 48cm | 51cm | 54cm | 56cm | 58cm | 60cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.4 mm | 1.44 mm | 1.44 mm | 1.47 mm | 1.51 mm |
| Stack | 512.7 mm | 524.6 mm | 543.3 mm | 557.7 mm | 576.6 mm | 595.8 mm |
| Reach | 366.4 mm | 375.2 mm | 377.6 mm | 388.3 mm | 392.2 mm | 395.6 mm |
| Top Tube Length | 510 mm | 525 mm | 540 mm | 555 mm | 570 mm | 585 mm |
| Seat Tube Angle | 74.5 ° | 74.2 ° | 73.5 ° | 73.5 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 480 mm | 510 mm | 540 mm | 560 mm | 580 mm | 600 mm |
| Head Tube Angle | 71.5 ° | 72.2 ° | 73 ° | 73 ° | 73.5 ° | 73.5 ° |
| Head Tube Length | 110 mm | 120 mm | 140 mm | 155 mm | 175 mm | 195 mm |
| Chainstay Length | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm | 405 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model
Urgestalt Disc Frameset belongs to the Lightweight Urgestalt model. Lightweight launched 7 frames of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Model range prices
Lightweight Urgestalt Rim Frameset 2021 is the most economical model, with a starting price of 3500$. Lightweight Urgestalt Disc Frameset 2021 on the other hand costs 4000$, and is the most expensive model.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Race frames average price
According to our calculations, the average cost of a Race frame that is reliable is 2445$. However, this doesn’t mean that if you spend less money on a Race frame, you couldn’t get a decent one. In conclusion, always check frame reviews and their components before making a purchase to make sure you don’t overpay.
When Lightweight released this model in 2021, its price was 4000$. If we compare this with the average Race frame cost we notice that the price is 63.6% higher.
Overview of components
Fork material
Urgestalt Disc Frameset has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
