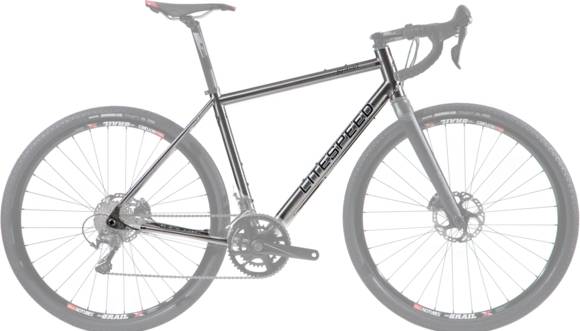

Litespeed Gravel Frame — Frameset 2020
2020 Road
Estimate price |
2,199$
Weight | 1.6 kg
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Titanium -
Wheels 700c / 650b -
Suspension Rigid
Sizing
Recommended size guide.
SM
162cm - 173cm
SM
162cm - 173cm
MD
169cm - 180cm
MD
169cm - 180cm
MD/LG
175cm - 186cm
MD/LG
175cm - 186cm
LG
180cm - 192cm
LG
180cm - 192cm
XL
188cm - 199cm
XL
188cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Rack and fender mounts incorporated into the frame & carbon gravel fork
Drivetrain
Bottom Bracket
PF30 BB shell
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | SM | MD | MD | MD/LG | MD/LG | LG | LG | XL | XL |
|---|---|---|---|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.48 mm | 1.49 mm | 1.49 mm | 1.51 mm | 1.51 mm | 1.55 mm | 1.55 mm | 1.62 mm | 1.62 mm |
| Bottom Bracket Height | 278 mm | mm | 278 mm | mm | 278 mm | mm | 278 mm | mm | 275 mm | mm |
| Front Center | 592 mm | 592 mm | 599 mm | 599 mm | 610 mm | 610 mm | 617 mm | 617 mm | 628 mm | 628 mm |
| Rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Trail | 67 mm | 61 mm | 64 mm | 58 mm | 61 mm | 55 mm | 57 mm | 51 mm | 58 mm | 52 mm |
| Stack | 557 mm | 557 mm | 572 mm | 572 mm | 592 mm | 592 mm | 617 mm | 617 mm | 647 mm | 647 mm |
| Reach | 377 mm | 377 mm | 384 mm | 384 mm | 393 mm | 393 mm | 397 mm | 397 mm | 400 mm | 400 mm |
| Top Tube Length | 527 mm | 527 mm | 542 mm | 542 mm | 562 mm | 562 mm | 577 mm | 577 mm | 597 mm | 597 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 475 mm | 475 mm | 495 mm | 495 mm | 515 mm | 515 mm | 535 mm | 535 mm | 555 mm | 555 mm |
| Head Tube Angle | 71 ° | 71 ° | 71.5 ° | 71.5 ° | 72 ° | 72 ° | 72.5 ° | 72.5 ° | 72.5 ° | 72.5 ° |
| Head Tube Length | 111 mm | 111 mm | 125 mm | 125 mm | 144 mm | 144 mm | 168 mm | 168 mm | 196 mm | 196 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1019 mm | 1019 mm | 1026 mm | 1026 mm | 1037 mm | 1037 mm | 1044 mm | 1044 mm | 1054 mm | 1054 mm |
| Bottom Bracket Drop | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm | 74 mm | 74 mm |
| Standover Height | 766 mm | 766 mm | 779 mm | 779 mm | 800 mm | 800 mm | 822 mm | 822 mm | 844 mm | 844 mm |
| Wheels | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 | 700 | 650 |
| Rider Min Height | 162 cm | 162 cm | 169 cm | 169 cm | 175 cm | 175 cm | 180 cm | 180 cm | 188 cm | 188 cm |
| Rider Max Height | 173 cm | 173 cm | 180 cm | 180 cm | 186 cm | 186 cm | 192 cm | 192 cm | 199 cm | 199 cm |
About this model
Gravel Frame — Frameset is part of the Litespeed Gravel model. 9 frames variations carry this model name so far. Take a sneak peek at all Litespeed Gravel frames models from 2020, by clicking here.
Model range prices
The most economical model, the Litespeed Gravel Frame — Frameset 2020 has a starting price of 2199$. Litespeed Gravel Frame — Frame Only (i2 / eTap Specific) 2020 on the other hand is the most expensive at 2199$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Gravel frames average price
If you want to purchase a solid Gravel frame, it is important to know that the average cost is 1505$. However, even though the average price of a Gravel frame is lower, you might still be able to get a top-quality frame. To make sure you don’t pay a higher amount than normal for your frame, always do some components analysis and read reviews.
At the moment of the release date, Litespeed Gravel Frame — Frameset price was 2199$. Doing a quick comparison, we notice that Gravel Frame — Frameset price is 46.11% higher than the average cost of a Gravel frame.
Gravel frames average weight
The average weight for Gravel frames is 2.06 kg (4.54 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
much lighter than average, Gravel Frame — Frameset has a weight of 1.6 kg (3.53 lbs). In conclusion, the average Gravel frame weighs 28.75% more than Gravel Frame — Frameset.
Overview of components
Fork material
The fork on this frame is made out of carbon, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
Sizes
There are 10 sizes available for this model. Rider height can be anywhere between 162 cm – 199 cm (5.31 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
