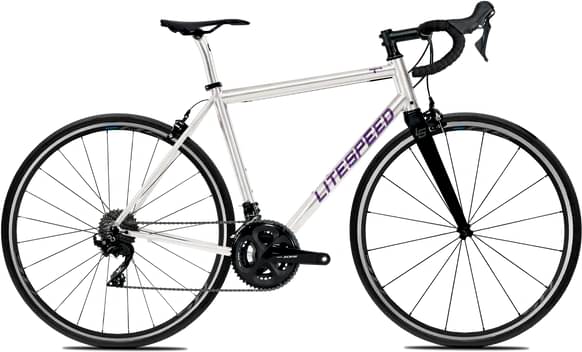

Litespeed T5 — Ultegra Di2 12 Spd 2023
2023 Road
Estimate price |
4,395$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Litespeed Carbon Tapered Fork
Drivetrain
Rear Derailleur
Ultegra Di2 8150 12 spd
Front Derailleur
Ultegra Di2 8150 12 spd
Shift Levers
Ultegra Di2 8150 12 spd
Cassette
Ultegra R8100 11-30 12 spd
Crank
Ultegra R8100 50/34 12 spd
Bottom Bracket
Praxis
Chain
Shimano M8100 12 spd
Wheels
Rims
Optimized for clearance on up to 25mm tires/130mm axle spacing (most tire/rim combinations)
Tires
Continental Ultrasport3 25c Folding
Brakes
Brakes
Ultegra
Cockpit
Stem
FSA Energy
Handlebar
FSA Energy Compact
Headset
Cane Creek 40 Series
Seat
Saddle
Fizik Vento Argo R3 Kium
Seatpost
FSA SLK Carbon 20mm Offset
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.52 mm | 1.55 mm | 1.59 mm | 1.64 mm |
| Bottom Bracket Height | 268 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 566 mm | 568 mm | 574 mm | 590 mm | 600 mm | 607 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 62 mm | 58 mm | 59 mm | 60 mm | 65 mm |
| Stack | 517 mm | 533 mm | 553 mm | 577 mm | 600 mm | 629 mm |
| Reach | 357 mm | 362 mm | 365 mm | 373 mm | 378 mm | 383 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 552 mm | 562 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 170 mm | 195 mm | 220 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 964 mm | 969 mm | 975 mm | 989 mm | 1000 mm | 1009 mm |
| Bottom Bracket Drop | 68 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 712 mm | 722 mm | 739 mm | 759 mm | 781 mm | 806 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview
T5 — Ultegra Di2 12 Spd is a Litespeed T5 model. Litespeed released 15 bikes variations of this model so far. Take a sneak peek at all Litespeed T5 bikes models from 2023, by clicking here.
Model range prices
Litespeed T5 — Shimano 105 11 Spd 2023 is the cheapest bike model and costs 3095$. Litespeed T5 — Ultegra Di2 12 Spd 2023 is the most expensive one and costs 4395$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Endurance bikes
According to our calculations, the average cost of an Endurance bike that is reliable is 2346$. However, even though the average price of an Endurance bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
This bike was released in 2023 and its price was 4395$. Comparing this to the average Endurance bike price, we see that the price is 87.34% more expensive.
T5 — Ultegra Di2 12 Spd components
Fork material
When it comes to the fork, this bike has a carbon one, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
When it comes to wheels, the T5 — Ultegra Di2 12 Spd bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, they have problems in wet conditions.
Sizes
T5 — Ultegra Di2 12 Spd comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In conclusion, you won’t have a problem finding one that suits you.
