Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Titanium -
Wheels 700c -
Groupset Ultegra Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Sizing
Recommended size guide.
XS
155cm - 168cm
SM
163cm - 174cm
MD
170cm - 181cm
MD/LG
175cm - 187cm
LG
181cm - 193cm
XL
188cm - 200cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
titanium
Suspension Fork
Litespeed Carbon Tapered Fork
Drivetrain
Rear Derailleur
Ultegra Di2
Front Derailleur
Ultegra Di2
Shift Levers
Ultegra Di2
Cassette
Ultegra 11-30
Crank
Ultegra 50/34
Bottom Bracket
Praxis
Chain
Shimano HG701
Wheels
Rims
Optimized for clearance on up to 25mm tires/130mm axle spacing (most tire/rim combinations)
Tires
Continental Ultra Sport II Folding 25c
Brakes
Brakes
Ultegra
Cockpit
Stem
Easton EA70 31.8
Handlebar
Easton EA70
Headset
Cane Creek 40 Series
Seat
Saddle
Prologo Scratch 2.0
Seatpost
Race Face Next Carbon Zero Setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | MD/LG | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.45 mm | 1.47 mm | 1.52 mm | 1.55 mm | 1.59 mm | 1.64 mm |
| Bottom Bracket Height | 268 mm | 265 mm | 265 mm | 265 mm | 265 mm | 265 mm |
| Front Center | 566 mm | 568 mm | 574 mm | 590 mm | 600 mm | 607 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 66 mm | 62 mm | 58 mm | 59 mm | 60 mm | 65 mm |
| Stack | 517 mm | 533 mm | 553 mm | 577 mm | 600 mm | 629 mm |
| Reach | 357 mm | 362 mm | 365 mm | 373 mm | 378 mm | 383 mm |
| Top Tube Length | 507 mm | 517 mm | 532 mm | 552 mm | 562 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° | 72.5 ° |
| Seat Tube Length | 460 mm | 475 mm | 495 mm | 515 mm | 535 mm | 555 mm |
| Head Tube Angle | 72 ° | 72.5 ° | 73 ° | 73 ° | 73 ° | 73 ° |
| Head Tube Length | 110 mm | 125 mm | 145 mm | 170 mm | 195 mm | 220 mm |
| Chainstay Length | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm | 412 mm |
| Wheelbase | 964 mm | 969 mm | 975 mm | 989 mm | 1000 mm | 1009 mm |
| Bottom Bracket Drop | 68 mm | 71 mm | 71 mm | 71 mm | 71 mm | 71 mm |
| Standover Height | 712 mm | 722 mm | 739 mm | 759 mm | 781 mm | 806 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 155 cm | 163 cm | 170 cm | 175 cm | 181 cm | 188 cm |
| Rider Max Height | 168 cm | 174 cm | 181 cm | 187 cm | 193 cm | 200 cm |
Model Overview

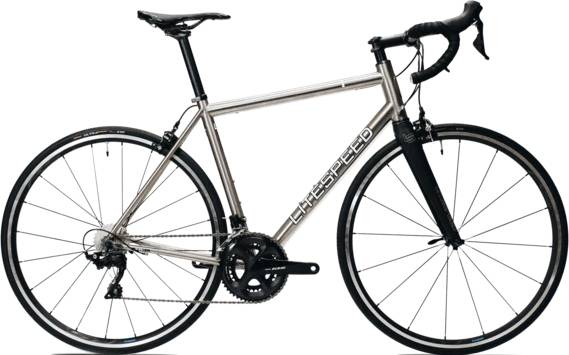

T5 — Ultegra Di2 completes the Litespeed T5 model. Litespeed released 15 bikes variations of this model so far. You can easily view all of the Litespeed T5 bikes models from 2020, here.
Model range prices
The most economical model, the Litespeed T5 — Shimano 105 2020 has a starting price of 2599$. Litespeed T5 — Ultegra Di2 2020 on the other hand is the most expensive at 3739$.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Endurance bikes average price
If you want to purchase a solid Endurance bike, it is important to know that the average cost is 2346$. However, even if your budget is less than the average, you might still be able to get a top-quality Endurance bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
When Litespeed released this model in 2020, its price was 3739$. Doing a quick comparison, we notice that T5 — Ultegra Di2 price is 59.38% more expensive than the average cost of an Endurance bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The T5 — Ultegra Di2 2020 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The T5 — Ultegra Di2 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they have problems in wet conditions.
Sizes
T5 — Ultegra Di2 comes in 6 sizes, that range from 155 cm – 200 cm (5.09 ft – 6.56 ft). In short, you can easily find one that suits you.
